RunCam Racer Nano - 14x14 700TVL CMOS FPV Camera

More Views

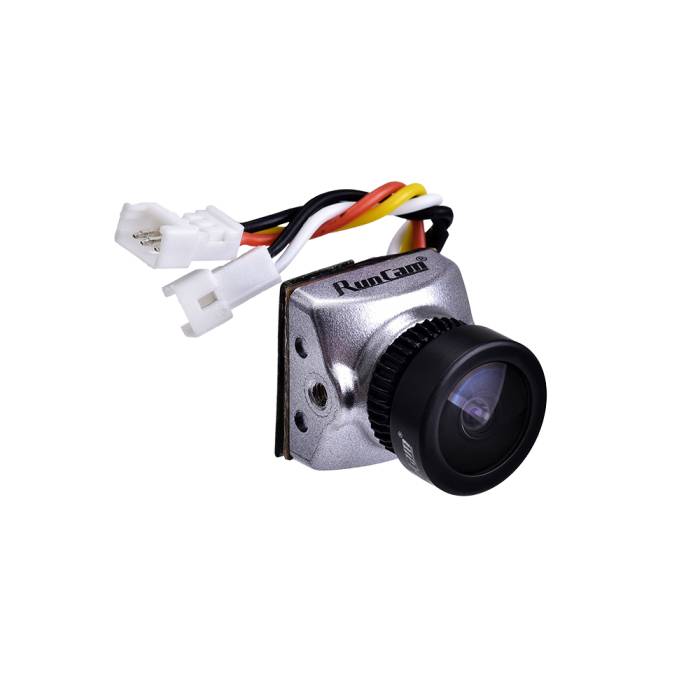

RunCam Racer Nano - 14x14 700TVL CMOS FPV Camera
The new RunCam Racer Nano is one of the world's smallest and best WDR racing camera.
Choose option below...
$34.99

* Required Fields

Description

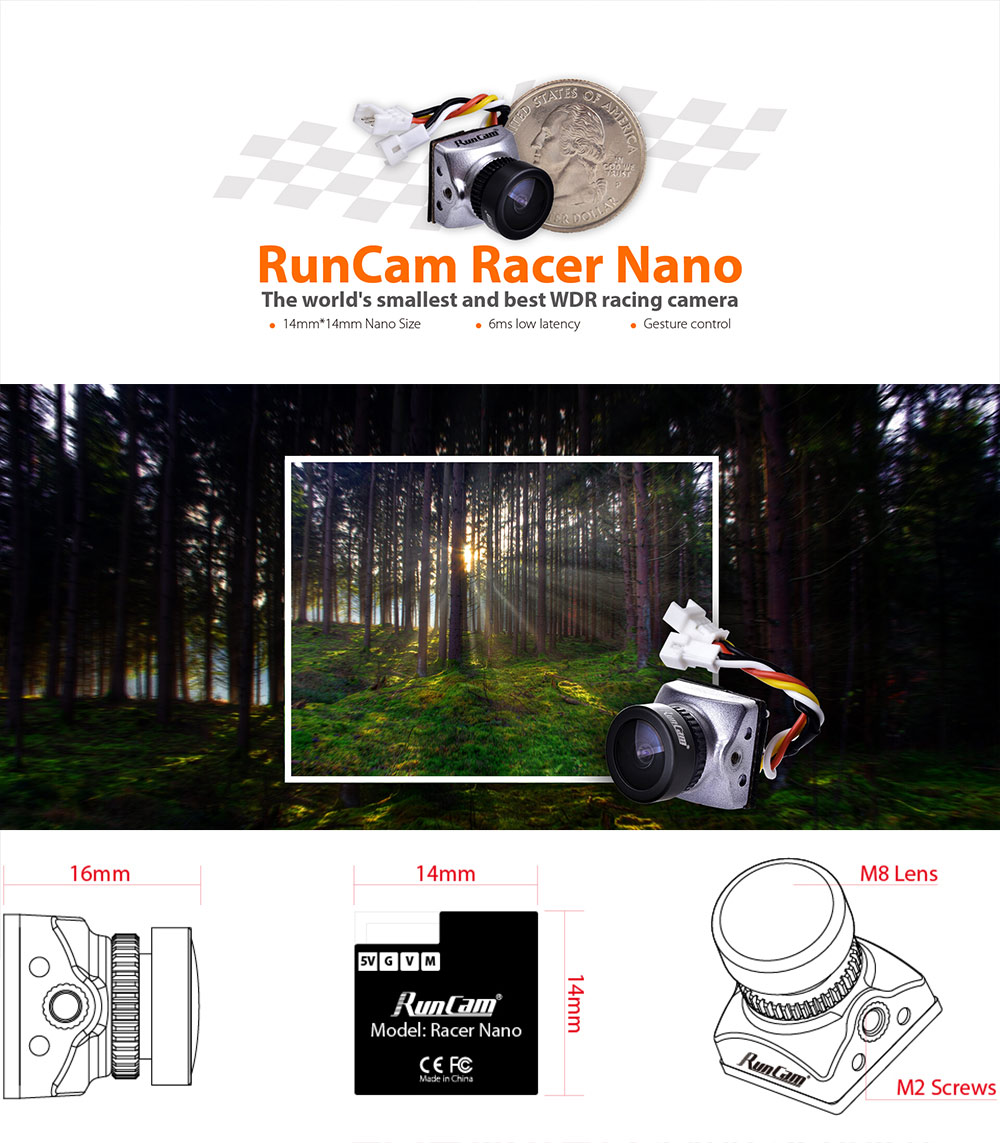

The new RunCam Racer Nano is one of the world's smallest and best WDR racing cameras. It's 14x14mm dimensions mean its technically smaller than a micro camera, so keep that in mind when thinking about mounting options.

You won't find a better "nano" camera out there!

Features

  • Lightweight
  • Low Latency (6ms)
  • Super WDR
  • Integrated OSD
  • 14x14mm Nano Size
  • One touch Scene Setting (Personal / Lightrax / Darkness)
  • Image Mirroring Option
  • Gesture Control / Joystick Control

Specifications

  • Image Sensor: Super WDR CMOS Sensor
  • Horizontal Resolution: 700TVL
  • Aspect Ratio: 16:9/4:3 Switchable
  • Signal System NTSC / PAL Switchable
  • Lens Size: M8
  • Focal Length: 1.8 or 2.1mm
  • Field of View: 160° (1.8mm) or 145° (2.1mm)
  • Min. Latency: 6ms
  • Min. Illumination: 0.01Lux@1.2F
  • Input Voltage: 3.3-5.5V
  • Current: 120mA@5V / 130mA@3.3V
  • Dimensions: 14x14x16mm
  • Weight: 3.5g

Downloads

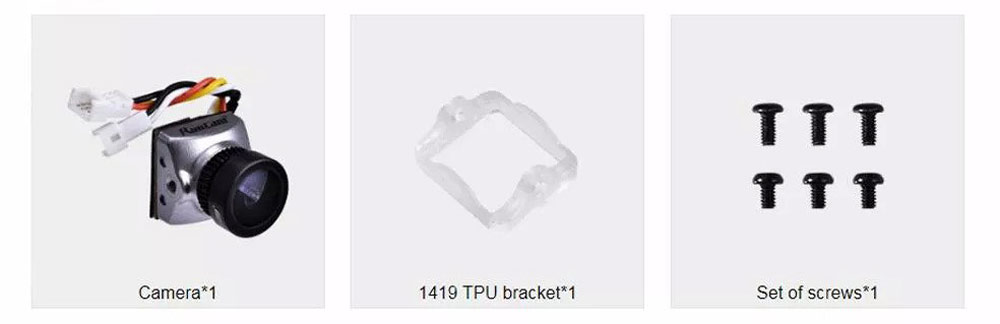

    Includes

    • 1 x RunCam Racer Nano
    • 1 x 1419 TPU bracket
    • 1 x Set of screws

    How to

    Additional Information
    SKU 10561
    Manufacturer RunCam
    UPC (GTIN) No
