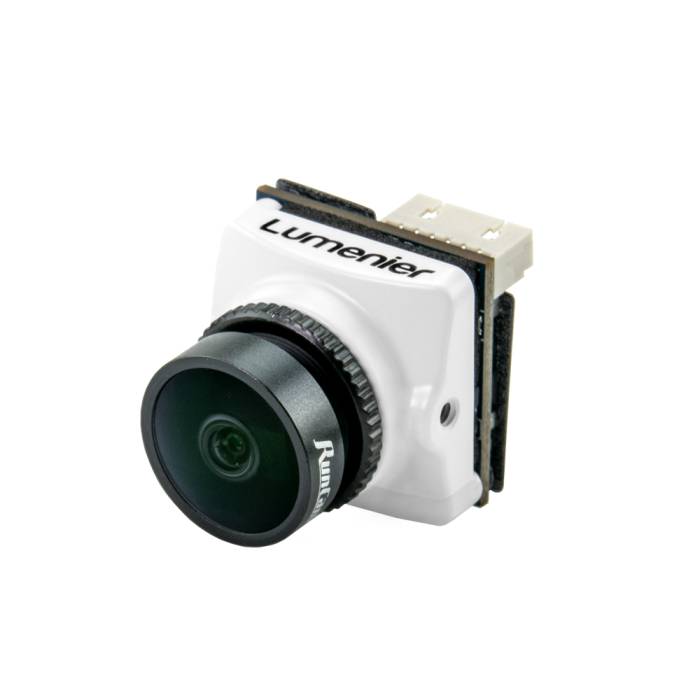

Runcam Phoenix 1000TVL CMOS FPV Camera - Lumenier Edition (White)

More Views

Runcam Phoenix 1000TVL CMOS FPV Camera - Lumenier Edition (White)
The Runcam Phoenix Lumenier Edition has a clear 1000TVL image and comes in a unique white color.
In Stock
$39.99
Description

The Runcam Phoenix Lumenier Edition is a great daylight FPV camera, equipped with an M12 lens. The Phoenix features a high 1000 TVL picture with a 4:3 or 16:9 aspect ratio option, WDR CMOS, and fast image processing. This micro FPV camera comes in a custom white camera shell for not only a cool look - but also a great way to keep your camera cool from absorbing too much heat. The Lumenier Edition comes with OSD, to display battery voltage and timer and supports joystick control and UART control Switchable.

Features

  • Excellent Image Quality - especially in daylight
  • Integrated OSD Supports Voltage & Timer
  • PAL/NTSC & 4:3/16:9 Switchable
  • Supports Image Mirror & Flip

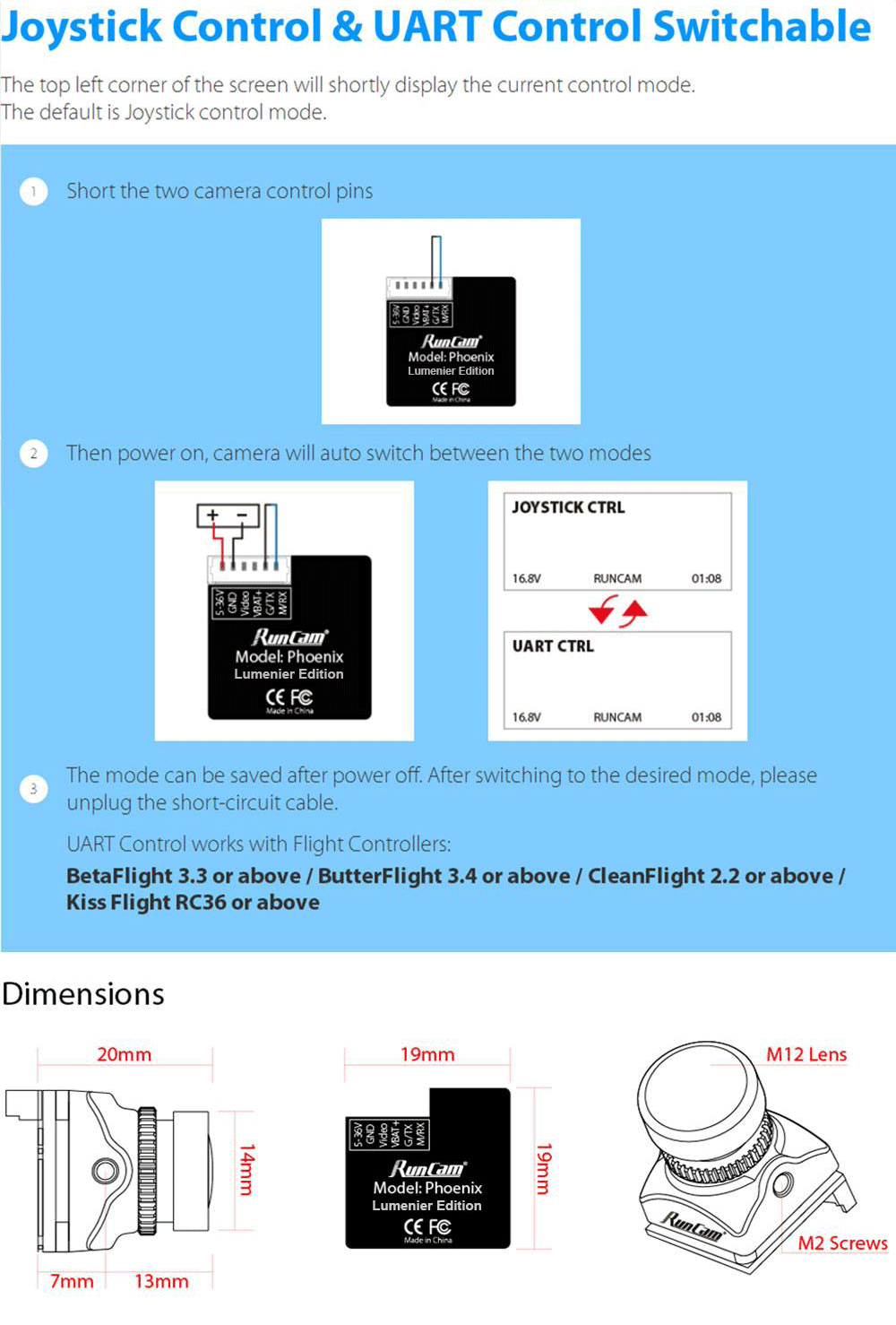

  • UART or Remote Control Switchable

Specifications

  • Image Sensor: 1/3" 120dB WDR CMOS Sensor
  • Horizontal Resolution: 1000TVL
  • Aspect Ratio: 4:3 / 16:9
  • Signal System: PAL / NTSC
  • Lens Size: M12
  • Focal Length: 2.5mm
  • Field of View: 140°
  • Minimum Latency: "Similar to Eagle"
  • Minimum Illumination: 0.01Lux @ 1.2F
  • Signal to Noise Ratio: >50dB (AGC OFF)
  • Input Voltage: 5-36V
  • Current Draw: 220mA@5V, 120mA@12V
  • Housing Material: ABS
  • Dimensions: 19x19x20mm (Micro)
  • Weight: 9g

Includes

  • 1 x RunCam Phoenix Lumenier Edition FPV Camera
  • 1 x 1928 ABS Bracket
  • 1 x 6pin FPV Silicone Cable
  • 1 x Screw Set
  • 1 x Manual

How to

Additional Information
SKU 10893
Manufacturer RunCam
UPC (GTIN) 082652058059
