Caddx Ant - 1200TVL 1.8mm FPV Nano Camera - 14x14 - Black

Caddx Ant - 1200TVL 1.8mm FPV Nano Camera - 14x14 - Black

Select options for stock status

Only left for same day shipping. Order now!

Options

Caddx Ant - 1200TVL 1.8mm FPV Nano Camera - 14x14 - Black
The Caddx Ant - 1200TVL 1.8mm FPV Nano Camera (14x14) is a new generation of nano cameras. This 14x14mm ultralight budget-friendly camera only weights 2g and includes many cool features like 3D DNR image quality!

About this product

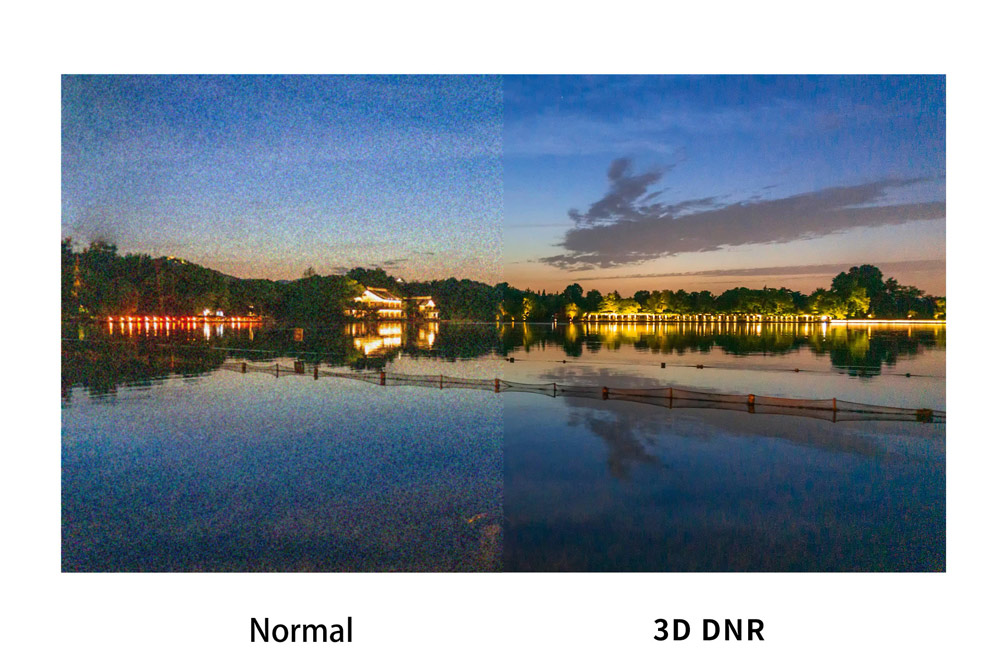

The Caddx Ant - 1200TVL 1.8mm FPV Nano Camera (14x14) is a new generation of nano cameras. This 14x14mm ultralight budget-friendly camera only weighs 2g and supports OSD Menu, 3.7-18.V, Global WDR, NTSC or PAL, CVBS video output, and many other cool features! A unique feature about this camera is that it includes 3D DNR, which gives you a full clarity image, so there is no need to worry about your image looking grainy or noisy when flying. To fit bigger builds, you can mount the Nano into a 19mm bracket (included)!

Features

  • Available in 4:3 or 16:9 camera ratio.
  • 14x14 Mounting Pattern
  • 3D DNR

Specifications

  • Model: Caddx Ant - 1200TVL 1.8mm FPV Nano Camera (14x14)
  • Electronic Shutter: PAL: 1/50~100, 000; NTSC: 1?60~1000, 000
  • Dimensions: 14*14mm (with a bracket to 19*19mm)
  • TV System: NTSC & PAL (Changeable)
  • Image Sensor: 1/3" CMOS Sensor
  • Min. Illumination: 0.001Lux@F1.2
  • Horizontal Resolution: 1200TVL
  • Work Temperature: -20C~+60C
  • Wide Power Input: DC 3.7-18V
  • S/N Radio: >52dB (AGC OFF)
  • Work Humidity: 20%~80%
  • Synchronization: Internal
  • Auto Gain Comtrol: Yes
  • Video Output: CVBS
  • WDR: Global WDR
  • Image: 16:9 or 4:3
  • Weight: 2g (N.W.)
  • Menu: Support
  • DNR: 3D DNR
  • Lens: 1.8mm
  • Color: Black
  • BLC: Yes

Links

Includes

  • 1x Caddx Ant - 1200TVL 1.8mm FPV Nano Camera - 14x14 (Choose Ratio)
  • 1x 3pin FPV silicone cable

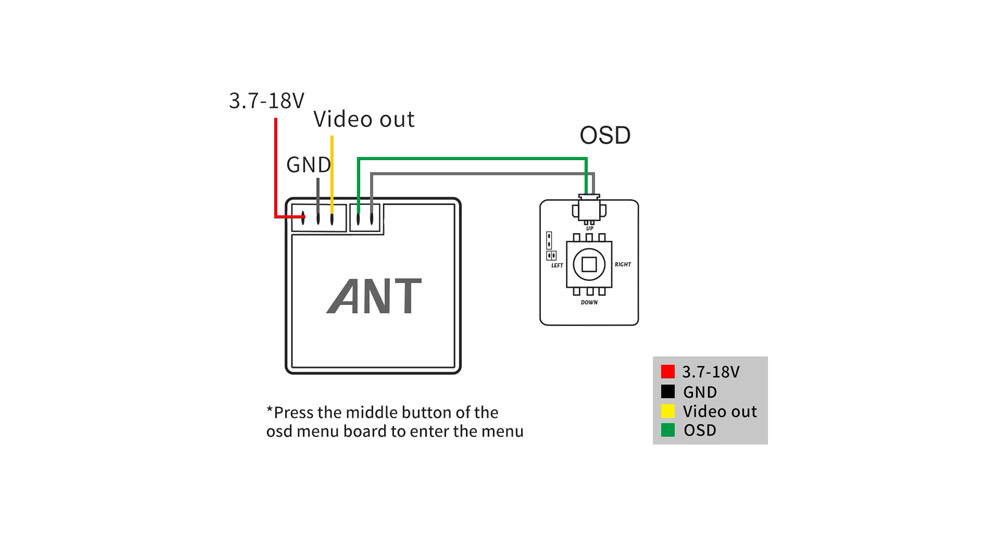

  • 1x 5D-OSD Menu Board
  • 1x FPV Silicone Cable
  • 1x Warranty card
  • 1x 19mm bracket
  • 4x Screws

More Information

SKU 13410
Manufacturer Caddx
Item Returns This item can be returned
