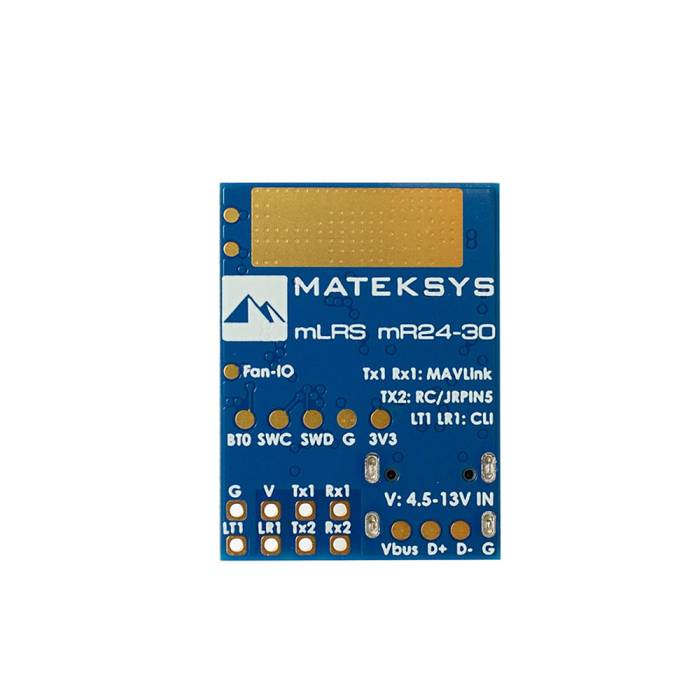

MATEKSYS mLRS 2.4GHz Receiver - mR24-30

The MATEKSYS mLRS 2.4GHz Receiver - mR24-30 delivers long-range performance in a compact design. Featuring STM32G431KB with mLRS firmware and the LoRa SX1281 chip, it ensures stable communication up to 1000mW across 2.4GHz ISM frequencies. With bi-directional MAVLink, CRSF or SBUS output, and a simple DFU mode, it’s a versatile, reliable receiver with built-in Bluetooth and fan control.

Note: SMA antenna and 3D-printed case not included.

VIDEO: (Insert Video Title here in Bold)

• Reliable Long-Range Communication
• Customizable Setup
• Compatible
• Versatile

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Power Dissipation: Average 360mA / Peak 900mA @ 5V IN (50Hz, 30dBm)
• RF Power: 13dBm (min) / 20dBm / 24dBm / 27dBm / 30dBm (1000mW)
• TX1/RX1: Bi-directional Serial MAVLink
• Power Supply: 4.5-13V DC @ “V” Pad
• One button: DFU mode and Bind
• Antenna Connector: IPEX MHF-1
• STM32G431KB: mLRS firmware
• TX2: RC out (CRSF or SBUS)
• RF Frequency: 2.4GHz ISM
• Weight: 4.5g with antenna
• PA/LNA: SKY68383-11
• LoRa SX1281: TCXO
• PCB Size: 28x21mm

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x MATEKSYS mLRS 2.4GHz Receiver - mR24-30
• 1x IPEX MHF1 sleeve dipole antenna 15cm
• 1x Heatsink 20*20*6mm
