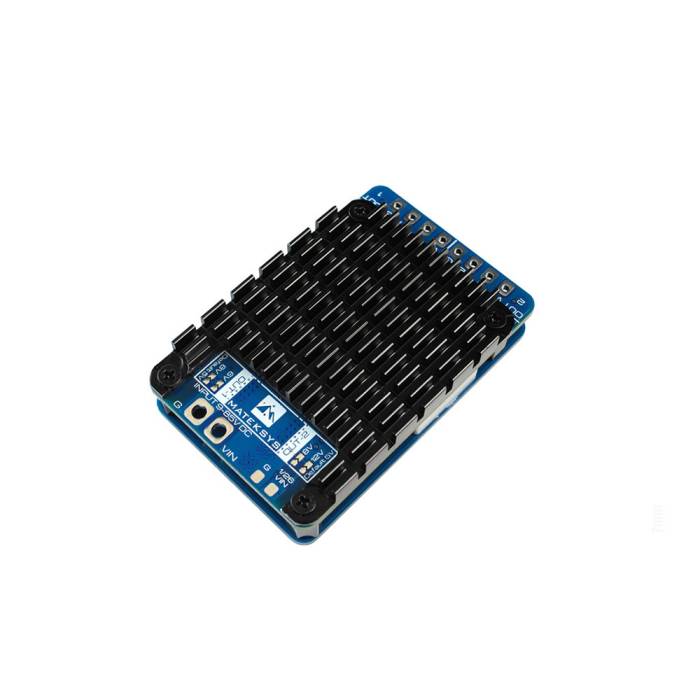

MATEKSYS PM20S-2 Power Module
In Stock
About this product
The MATEKSYS PM20S-2 Power Module is designed to deliver consistent and efficient power distribution for your systems. Equipped with 100V DC components, it supports an input voltage range of 9V to 85V DC with built-in 85V TVS protection, ensuring durability and performance. Featuring two independent step-down voltage regulators, the module offers flexible output options with continuous current support up to 15A and peak currents of up to 22A. Compact and lightweight, the PM20S-2 is ideal for advanced projects requiring robust and adaptable power solutions.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Dual Step-Down Voltage Regulators
- Compact and Lightweight
- Wide Input Voltage Range
- High Voltage Capacity
- High Current Support
- Durable Design
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Input Voltage Range: Supports 9V to 85V DC with 85V TVS protection
- 2x Independent Step-Down Voltage Regulators
- Regulator 1: 5.3V / 6.1V / 8.1V output options
- Supports continuous output current: up to 15A
- Regulator 2: 5.3V / 8.1V / 12.2V output options
- Peak current of up to 22A
- Supports continuous output current of up to 15A
- 1K: 25K voltage divider built-in for 3.3V-based voltage ADC
- Made with: 100V DC components
- Size & Weight: 61x40x15mm, 63g
- Peak current: up to 22A
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Matek PM20S-2 Power Module
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 22457 |
|---|---|
| UPC (GTIN) | 723326368882 |
| Manufacturer | MatekSys |
| Country of Manufacture | China |
| NDAA Compliant | No |
