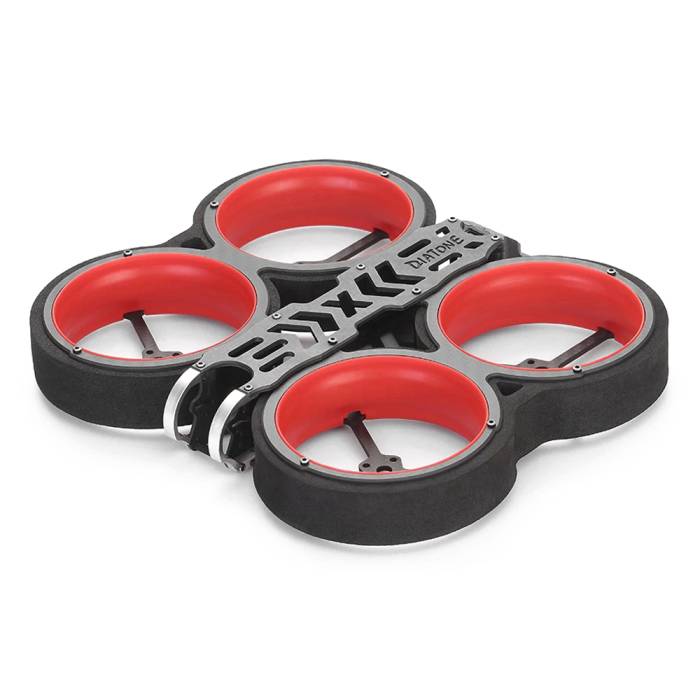

Diatone Taycan MXC3.1 3" Cinewhoop Frame Kit w/ Red Ducts
Diatone Taycan MXC3.1 3" Cinewhoop Frame Kit w/ Red Ducts
$69.99
Back Ordered
Only left for same day shipping. Order now!
Diatone Taycan MXC3.1 3" Cinewhoop Frame Kit w/ Red Ducts

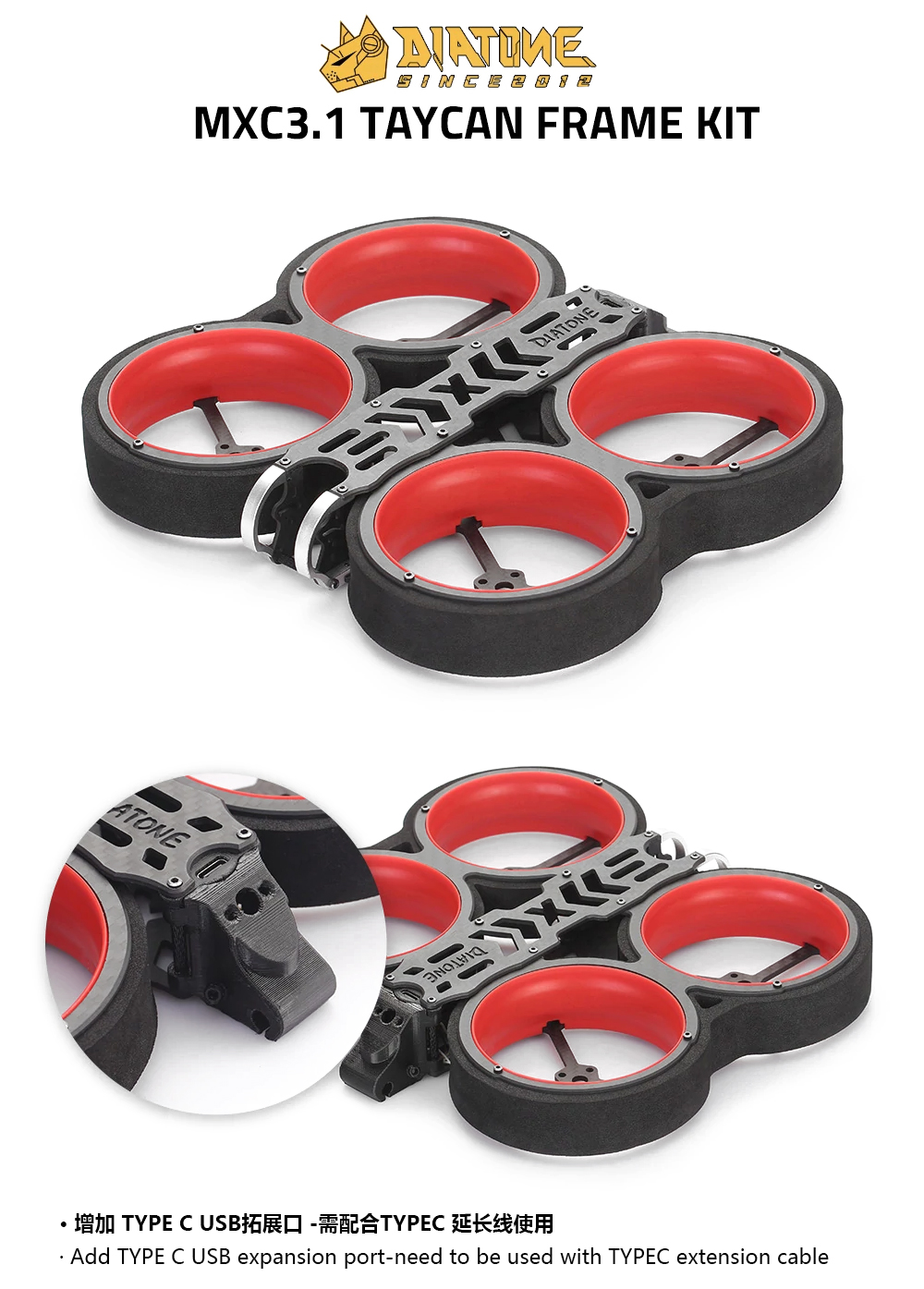

The Diatone MXC3.1 Frame Kit is a high-performance 3" frame with red ducts!
About this product
The Diatone MXC3.1 Frame Kit is a high-performance 3" frame with red ducts!
Experience amazing footage with this powerful and agile 3" Cinewhoop! Diatone's latest creation features a custom frame designed just for the DJI Digital HD FPV System.
VIDEO: How to Build a Cinewhoop Drone to take Cinematic FPV Shots
Features
- Designed to house the DJI Digital HD FPV System
- Red Ducts
Specifications
- FC Mounting Patterns: 20×20mm (M2) / 25.5×25.5mm (M2) / 30.5×30.5mm (M3)
- Rated Voltage (Recommendation): 4S~6S
- Model: MXC3.1 (Taycan C3 V1.1)
- Motor Mounting:16mm (M3)
- Bai Aluminum alloy:7075
- Carbon Fiber: T300 3K
- Camera Spacing:19mm
- Wheelbase: 157.5mm
- Bottom Plate:2.5mm
- Duct Color: Red
- Top Plate:2mm
- Weight: 158g
- Prop Size: 3"
- Arm: 2.5mm
Recommended (Not Included)
- Camera:/ VTX: Caddx DJI Digital HD FPV Air Unit Kit
- Motor: MAMBA TOKA 2203.5 2650 KV
- FC: MAMBA AIO F411 35A / 20MM
- Antenna: MAMBA ULTRA LHCP
- 6S Battery: 850-1050 mAh
Includes
- 1x Mamba Micro USB/ Micro USB V2 Adapter
- 1x SMA Antenna Fixing Screw Set
- 4x Red Ducts with Foam Bumpers
- 1x 20 to 25.5 Aluminum Adapter
- 1x Micro USB Extender
- 1x USB-C Extender
- 2x Camera Plates
- 1x TPU Parts Set
- 1x Hardware Set
- 1x Standoffs Set
- 1x Set of Zipties
- 1x Bottom Plate
- 2x Motor Plates
- 1x Battery Pad
- 2x LiPo Strap
- 1x Top Plate
More Information
SKU | 17493 |
---|---|
UPC (GTIN) | 764613341430 |
Manufacturer | Diatone |
NDAA Compliant | No |
Item Returns | This item can be returned |
