Diatone Mamba F411 AIO - F411 FC + 35A 3-6S BLHeli_S ESC - Internal USB

More Views

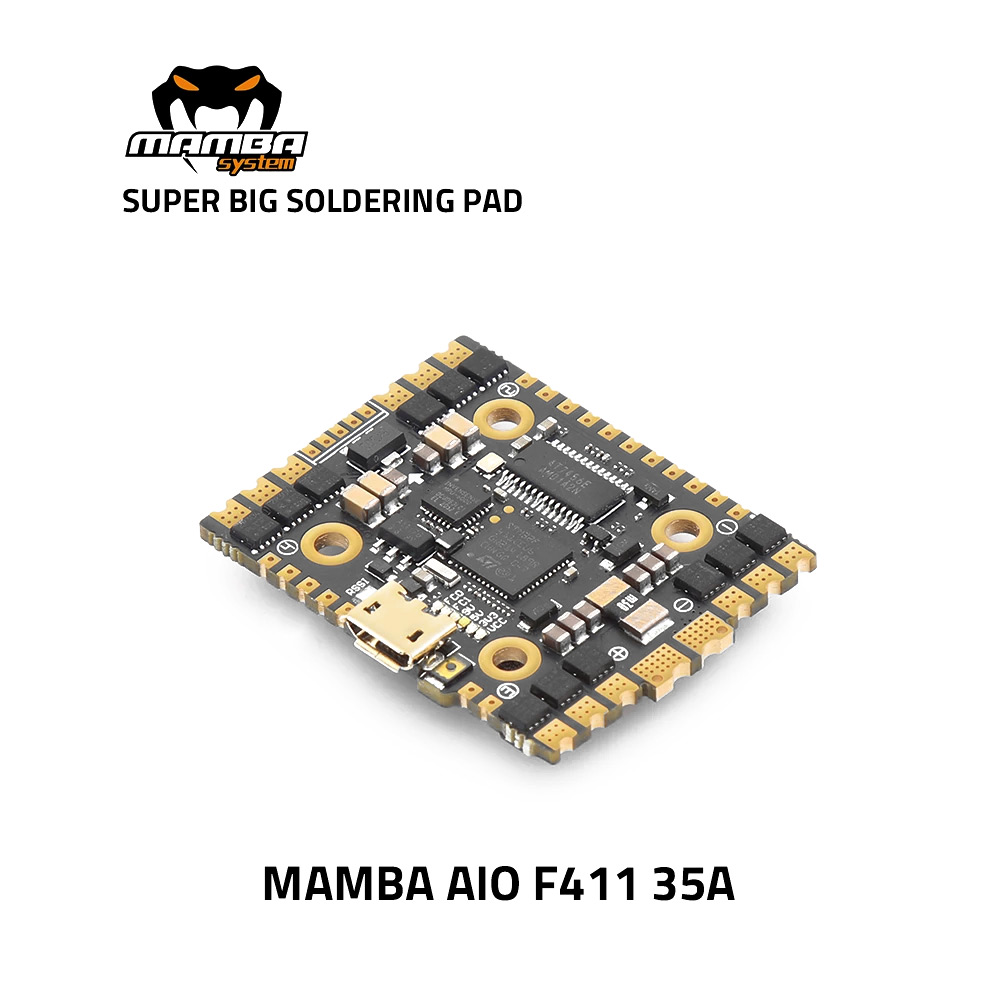

Diatone Mamba F411 AIO - F411 FC + 35A 3-6S BLHeli_S ESC - Internal USB

The Diatone Mamba F411 AIO has an F411 flight controller and a 35A 3-6S BLHeli_S ESC, featuring an Internal USB.

In Stock
$71.99
OR
Description

The Diatone Mamba F411 AIO has an F411 flight controller and a 35A 3-6S BLHeli_S ESC, featuring an Internal USB.

Features

  • Large Soldering Pad
  • Internal USB
  • F411 FC
  • 35A ESC

Specifications

F411 FC

  • MCU: 100MHz STM32F411CEU6
  • BEC: 3.3V 0.5A & 5V 2A & 9V 2A
  • MAMBA AIO F411 35A /20mm
  • Input: 3~6S Lipo (12.6~25.2V)
  • Mounting Pattern: 20×20, M2
  • ESC Soft: Dshot300/600
  • LED Controller: BF LED
  • GYRO: MPU6000
  • Size:42×33×6mm
  • Power Led: Yes
  • Barometer: No
  • Blackbox: No
  • Uarts: 2 Set
  • F.Port: No
  • RSSI: Yes
  • Buzz: Yes
  • OSD: Yes

35A ESC

  • CONTINUE CURRENT: 35A×4
  • MAMBA AIO F411 35A /20mm
  • BURST CURRENT: 40A (10S)
  • Input: 3~6S Lipo (12.6~25.2V)
  • Target: BLHeli_S CH40
  • SOFT: Dshot300/600

Includes

  • 1x Diatone Mamba F411 AIO - F411 FC + 35A 3-6S BLHeli_S ESC - Internal USB
  • 1x High-Frequency 470uF/35V
  • 1x AMASS Original XT60
  • 2x 16AWG 60mm
Additional Information
SKU 17184
Manufacturer Diatone
UPC (GTIN) 764613339062
