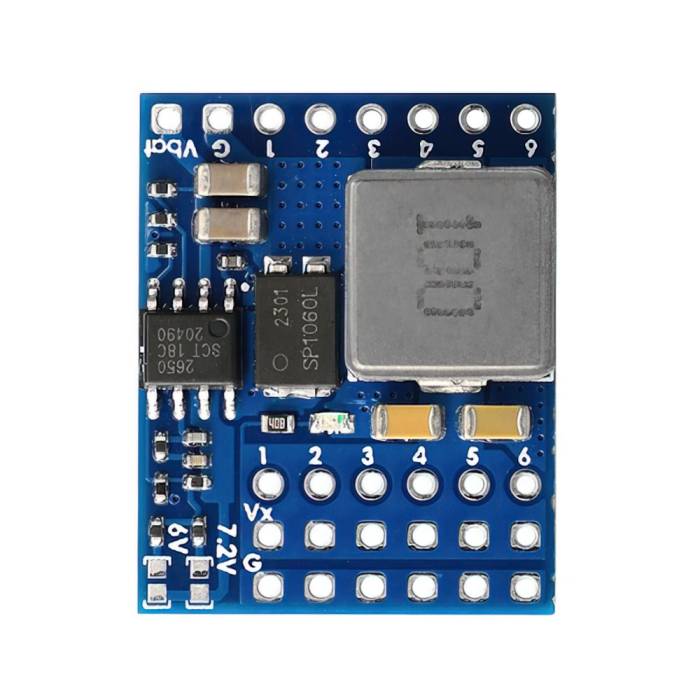

MATEKSYS Servo PDB w/ BEC 5.5-36V to 5-8.2V - SVPDB-8S
MATEKSYS Servo PDB w/ BEC 5.5-36V to 5-8.2V - SVPDB-8S
$8.99
In Stock
Only left for same day shipping. Order now!
MATEKSYS Servo PDB w/ BEC 5.5-36V to 5-8.2V - SVPDB-8S

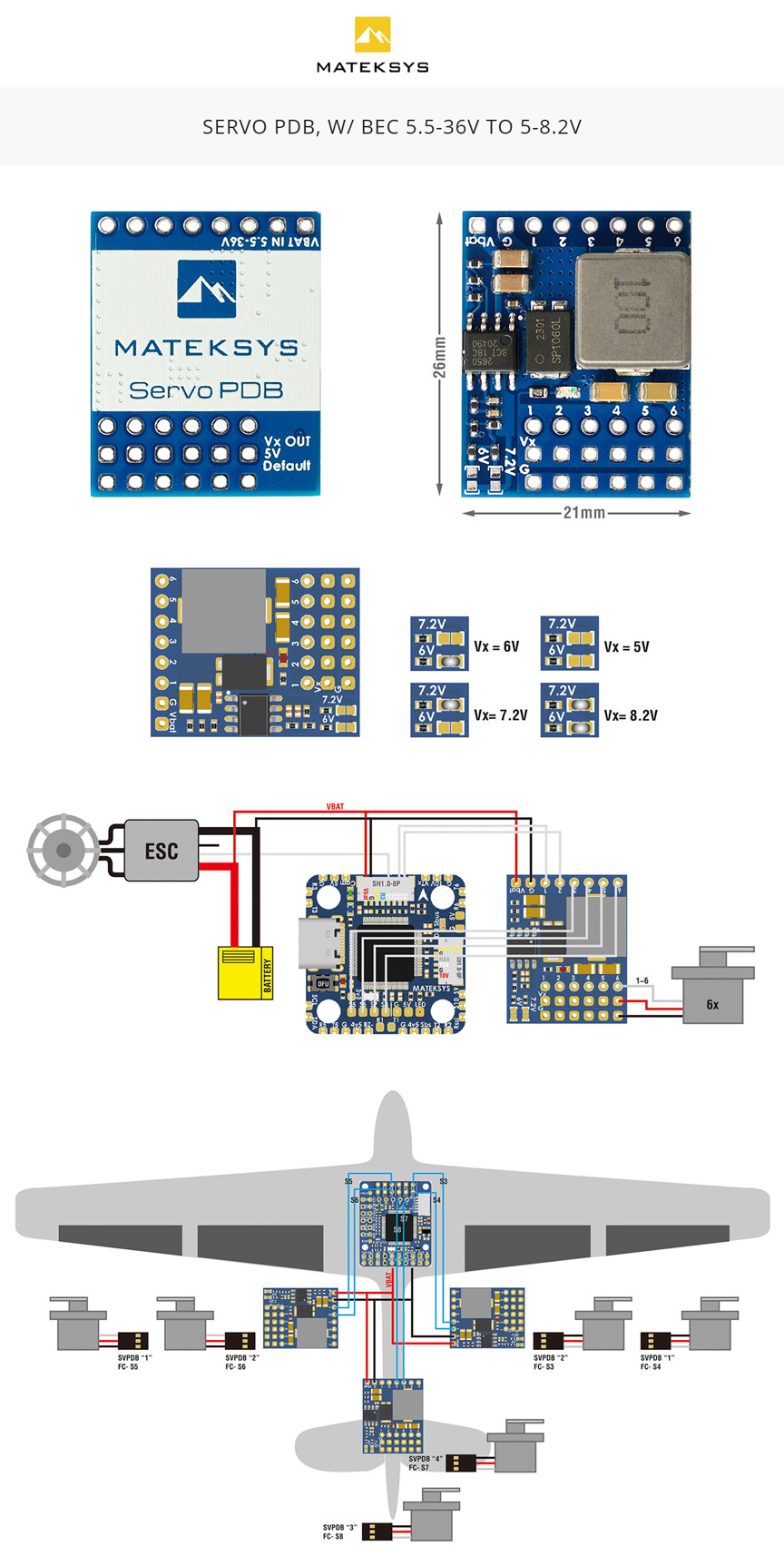

The MATEKSYS Servo PDB w/ BEC 5.5-36V to 5-8.2V reduces circuit loss and voltage drop on servo power wires for big-scale RC Airplanes and flight controllers without dedicated BEC for servos.
About this product
The MATEKSYS Servo PDB w/ BEC 5.5-36V to 5-8.2V reduces circuit loss and voltage drop on servo power wires for big-scale RC Airplanes and flight controllers without dedicated BEC for servos.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Reduces circuit loss and voltage drop on servo power wires for big-scale RC Airplane
- Flight controllers without dedicated BEC for servos
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
- Vx for servos: 5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
- Output Short-circuit tolerant: 3 seconds
- Continuous load current: 4A / 7A Burst
- Operating Input Range: 5.5V to 36VÂ
- Pins distance: 2.54mm
- Size: 26 x 21 x 5mm
- Weight: 4g
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- Â (Insert links such as manuals, firmware, etc)
Includes
- 1x MATEKSYS Servo PDB w/ BEC 5.5-36V to 5-8.2V (SVPDB-8S)Â
- 1x Dupont 2.54mm pins
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 19256 |
---|---|
UPC (GTIN) | 764613348095 |
Manufacturer | Matek Systems |
NDAA Compliant | No |
Item Returns | This item can be returned |
