MATEKSYS ExpressLRS 2.4GHz Receiver - PWM ELRS-R24-P6
MATEKSYS ExpressLRS 2.4GHz Receiver - PWM ELRS-R24-P6
$14.99
In Stock
Only left for same day shipping. Order now!
MATEKSYS ExpressLRS 2.4GHz Receiver - PWM ELRS-R24-P6
The MATEKSYS ELRS-R24-P6 is a PWM receiver with a 2.4GHz frequency and ExpressLRS 3.0 firmware.
About this product
dummy
The MATEKSYS ELRS-R24-P6 is a PWM receiver with a 2.4GHz frequency and ExpressLRS 3.0 firmware.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing
Features
- ExpressLRS 3.0 firmware
- 2.4GHz Frequency
- 6 PWM Outputs
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.

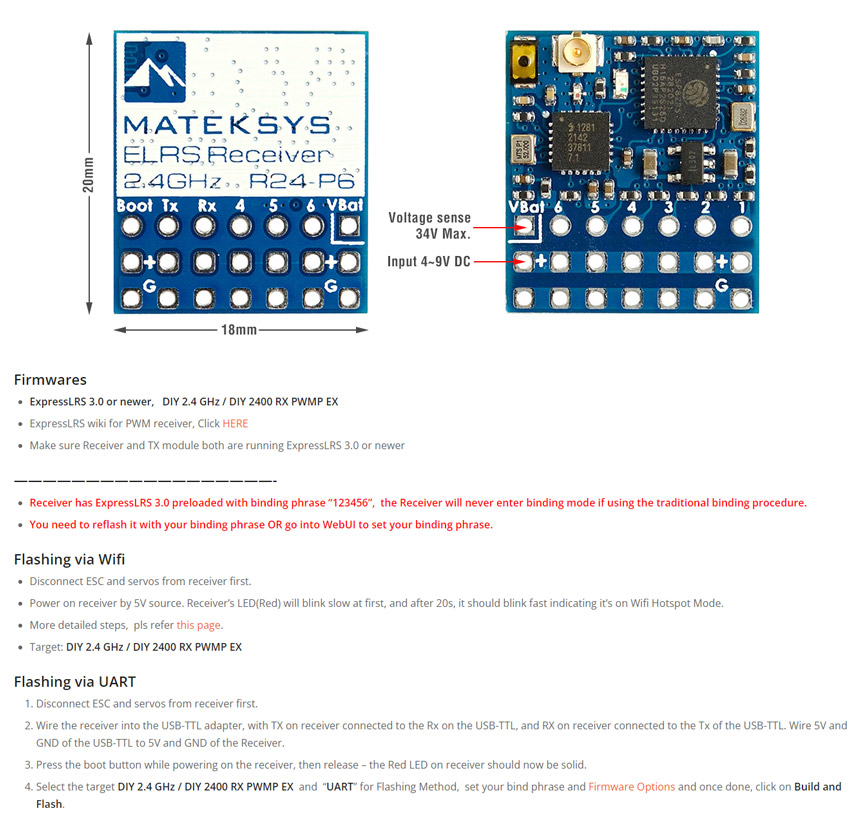

Specifications
- Power dissipation: 45mA(binding), 85mA(wifi mode)
- RF Frequency: 2.4GHz (2400~2480MHz)
- Voltage sense: 34V Max. @ “VBat” pad
- Input voltage: 4~9V DC @ “+” pad
- Support 2~8S VBat voltage sense
- Antenna connector: IPEX MHF 1
- Receiver output protocol: PWM
- Telemetry power: 12dbm
- PCB size: 20mm x 18mm
- Weight: 2g w/ antenna
- ESP8285, SX1281
- PWM outputs: 6
Includes
- 1x MATEKSYS ExpressLRS 2.4GHz Receiver - PWM ELRS-R24-P6
- 1x IPEX MHF1 Antennas. 15cm
- 1x Dupont 2.54 pins
More Information
| SKU | 19254 |
|---|---|
| UPC (GTIN) | 764613347845 |
| Manufacturer | Matek Systems |
| Item Returns | This item can be returned |
