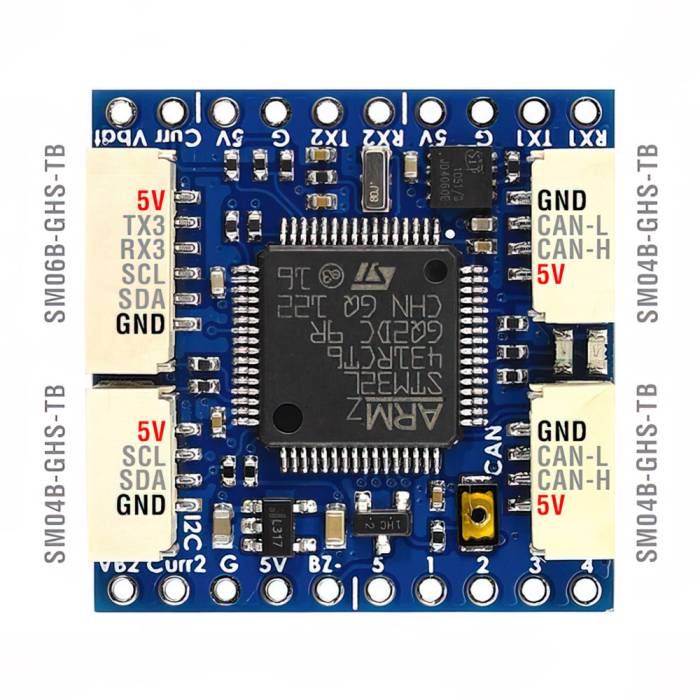

The Mateksys CAN-L431 is an Adapter Node based on ArudPilot AP_Periph firmware. With this board, you can easily utilize the ArduPilot driver library to convert ArduPilot-supported GNSS, Compass, Barometer, Airspeed sensor, and GPIO-based (PWM, Buzzer/LED notify) peripherals to DroneCAN bus peripherals.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing

• ArduPilot AP_Periph MatekL431-Periph, or MatekL431-Airspeed Firmware
• CAN transceiver data rates up to 5 Mbit/s in the CAN FD fast phase
• 4.5-5.5V Voltage Range
• LED Indicators
• 3 UARTs

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Firmware: ArduPilot AP_Periph MatekL431-Periph, or MatekL431-Airspeed (Update via DroneCAN GUI Tool)
• I2C: 1 (for peripheral Airspeed sensor) (for peripheral Barometer) (for peripheral Compass QMC5883L)
• ADC: 4x (BATT_VOLT, PIN 5) (BATT_CURR, PIN 6)( BATT2_VOLT, PIN 15) (BATT2_CURR, PIN 16)
• LED: (Blue, Fast blinking, Booting) (Blue, Slow blinking, working) (Red, 3.3V indicator)
• UARTs: 3 (UART1, spare) (UART2, MSP default, DFU) (UART3, GPS default)
• CAN transceiver data rates: up to 5 Mbit/s in the CAN FD fast phase
• CAN, DroneCAN Protocol: 1 (2x GH-4P connectors in parallel)
• JST-GH-6P(SM06B-GHS-TB) for UART3+I2C: 1
• Input voltage range: 4.5~5.5V @5V pad/pin
• JST-GH-4P(SM04B-GHS-TB) for CAN: 2
• JST-GH-4P(SM04B-GHS-TB) for I2C: 1
• Operating Temperatures: -20~80 °C
• GPIO with TIM16 for the buzzer: 1
• MCU: STM32L431xC, 256KB Flash
• ST debug, SWCLK & SWDIO
• SPI: for peripheral RM3100
• Power consumption: 40mA
• Board Size: 26x26x6mm
• PWM outputs: 5
• Weight: 3.7g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x MATEKSYS AP Periph CAN Node - CAN-L431
• 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
• 1x JST-GH-6P to JST-GH-6P 20cm silicon wire
