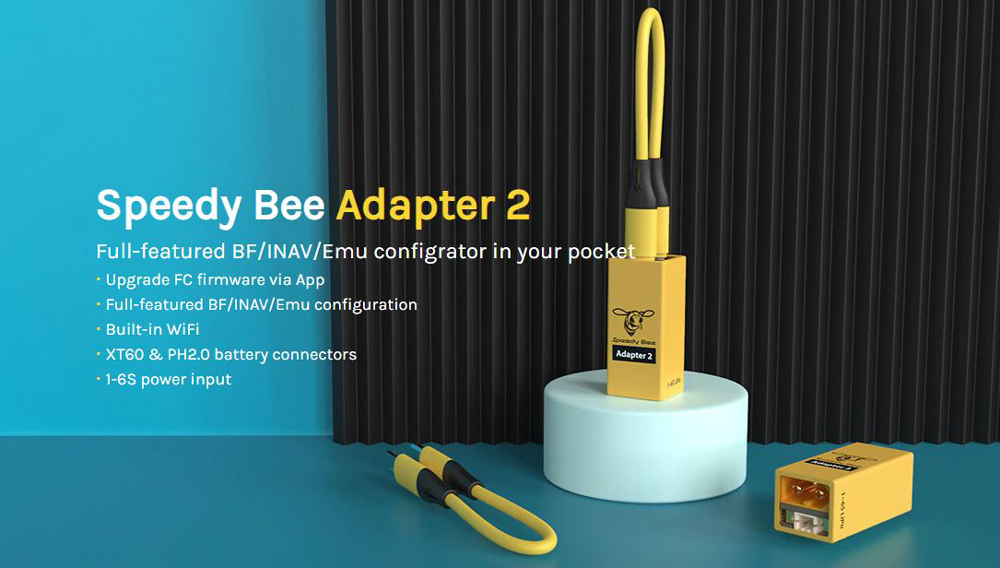

The SpeedyBee Adapter 2 is a full-featured BF/INAV/emu configurator that comes with built-in WiFi. SpeedyBee put a WiFi chip in Adapter 2 which greatly improves the transmission speed and makes it possible to upgrade your flight controllers. The whole upgrading process costs only 2-3 minutes. Just cab go to a field and fly without carrying a heavy laptop.

Note: The firmware flashing currently supports Betaflight/Emuflightvia WiFi connection to the Adapter 2

Power the whole thing with one battery

Soldering work should be done on the user end on the previous generation. But the Adapter 2 now has built-in XT60 and PH2.0 connectors which both support 1-6S LiPo batteries input*. As the Adapter 2 can power your flight controller, you don't need another battery to power your quad.

*For 1S batteries, 3.8V or above is required. Because some(very few) quadcopters may consume a lot of currents, and the output voltage of the adapter 2 will be greatly reduced.

One Adapter 2 for all of your quads!

With one Adapter 2, you could connect to all of your quads running Betaflight or iNav.

Say goodbye to OTG problems

Some Android phones don't support OTG or can't supply sufficient power to your flight controllers... But with Adapter 2, just say goodbye to all these problems.

The lanyard-style cable is easy to store

The liquid silicone cable is with two same micro USB ports on both ends. The connection is tight enough to prevent the cable from being lost. The lanyard-style cable can even easily carry 500 grams.

Connection Tips

'TO FC' stands for 'unplug the USB cable from this end, then plug the cable into your flight controller'.

Features

• Betaflight configurator in your pocket
• Upgrade FC firmware via Speedy Bee App
• Full-featured BF/iNav configuration
• Power via 1-6S XT60 and PH2.0 Batteries
• Built-in WiFi

Specifications

• Power Input Voltage Range: 1-6S(3.8V+ for 1S)
• Power Input Interface: XT60-Male, PH2.0 male
• Case Material: Heat-shrink Tubing
• Liquid Silicone Cable Length: (Pure Wire) 10cm
• Net Weight: 21.8g
• WiFi Transmission Distance: 3 meters
• Standby Working Current: Under 5V 120mA
• Maximum Output Current: 200mA @5V
• Dimension(Main Body): 18*18.5*42mm

Manual

Includes

• 1 x SpeedyBee Adapter 2 Micro USB w/ WiFi
• 1 x Manual
