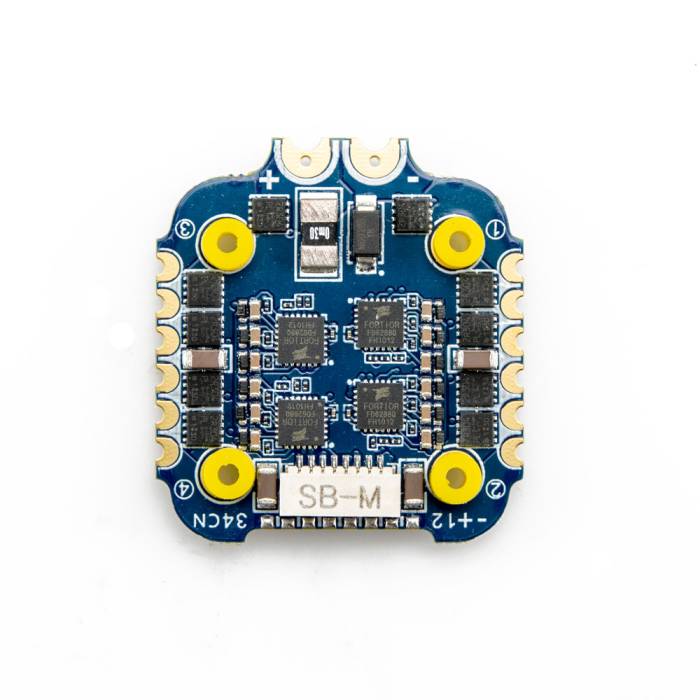

SpeedyBee 35A BL_S Mini 20x20 4-in-1 ESC
SpeedyBee 35A BL_S Mini 20x20 4-in-1 ESC
A 20x20mm ESC from SpeedyBee boasting 35A of cont. power with BL_S firmware.
About this product
A 20x20mm ESC from SpeedyBee boasting 35A of cont. power with BL_S firmware.
Matching flight controller to make your SpeedyBee Mini Stack!
Specifications
SpeedyBee 35A BLHeli_S ESC
- Power Input: 3-6S
- Firmware: BLHeli_S JH40
- Max Continuous Current: 35A
- Max Burst Current: 45A
- ESC Protocol: DSHOT300/600
- Current Sensor: Yes
- Mounting Dimensions: 20 x 20mm, 3.6mm hole diameter
- Weight: 7g
Includes
- 1x 4-in-1 ESC
- 1x Manual and App Download Card
- 1x 8pin JST Cable
- 1x 35v 470uF Capacitor
- 5x M2 Grommets and Silicone Rings
- 5x M3 Grommets and Silicone Rings
More Information
| SKU | 17752 |
|---|---|
| UPC (GTIN) | 764613341683 |
| Manufacturer | SpeedyBee |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| ESC Firmware | BLHeli_S |
| Amps | 35 Amps |
| Number of ESC's | 4 ESC's in 1 |
