SpeedyBee F7 Mini 20x20 Flight Controller
SpeedyBee F7 Mini 20x20 Flight Controller
$49.99
Out of Stock
Only left for same day shipping. Order now!
Earn

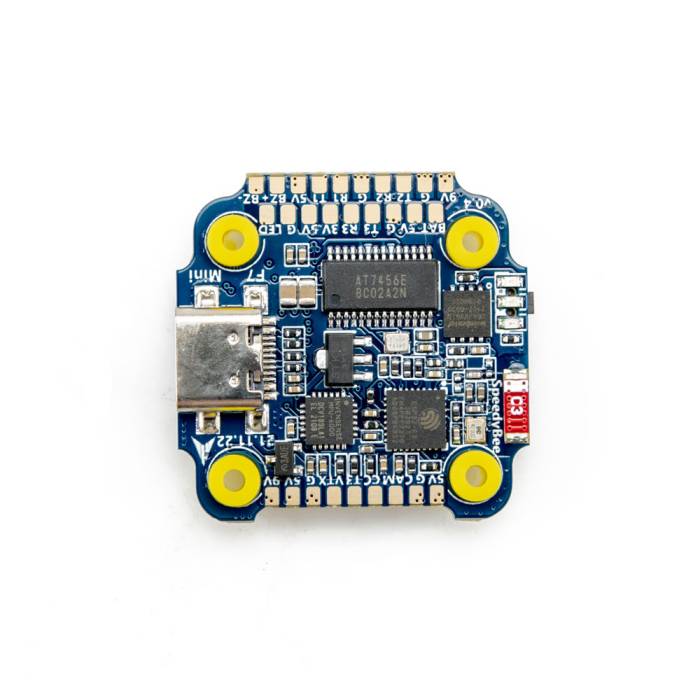

SpeedyBee F7 Mini 20x20 Flight Controller
The SpeedyBee F7 Mini FC has come to change the way you deal with electronics. Flash, update, configure, all without having to plug into any computer. With the SpeedyBee app, you can change almost any parameter wirelessly!
About this product
The SpeedyBee F7 Mini FC has come to change the way you deal with electronics. Flash, update, configure, all without having to plug into any computer. With the SpeedyBee app, you can change almost any parameter wirelessly!
Specifications
SpeedyBee F7 Mini FC
- Input Voltage: 3-6S
- MCU: STM32F722
- Gyro: MPU6000
- Barometer: No
- OSD Chip: AT7456E
- Bluetooth: Yes
- DJI Air Unit Soldering Pads: Supported
- BlackBox: 8MB Flash
- Current Sensor: Yes
- BEC: Yes
- ESC Signal Pads: 4
- UARTs: 3(UART1, UART2, UART3)
- ESC Telemetry: R4(UART4)
- LED Pad: Used for WS2812 LED
- Buzzer: Yes
- Firmware: BetaFlight(Default), EMUFlight, INAV
- Firmware Target: SPEEDYBEEF7MINI
- Mounting Dimensions: 20 x 20mm, 3.5mm hole diameter
- Weight 5.7g
Includes
- 1x F7 Flight Controller
- 1x Manual and App Download Card
- 1x 8pin JST Cable
- 5x M2 Grommets
- 5x M3 Grommets
More Information
| SKU | 17751 |
|---|---|
| UPC (GTIN) | 764613341676 |
| Manufacturer | SpeedyBee |
| Mounting Pattern | 20x20mm |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
