RUSHFPV RUSH BLADE F722 Flight Controller For DJI Digital FPV System

More Views

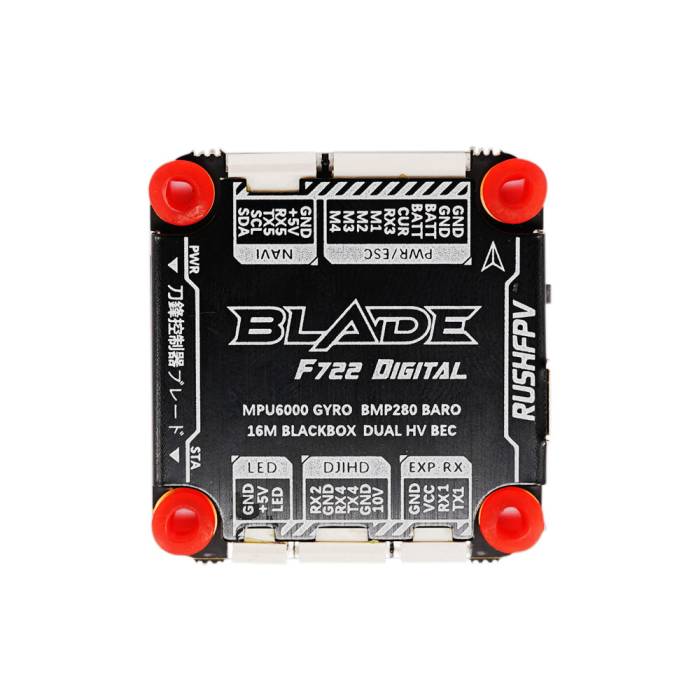

RUSHFPV RUSH BLADE F722 Flight Controller For DJI Digital FPV System

RUSH BLADE F722 30x30 Flight Controller by RUSHFPV for your  DJI Digital FPV System. This FC features high-performance STM32 F722 MCU, MPU6000, and Onboard OSD.

Backorder
$63.99
OR
Description

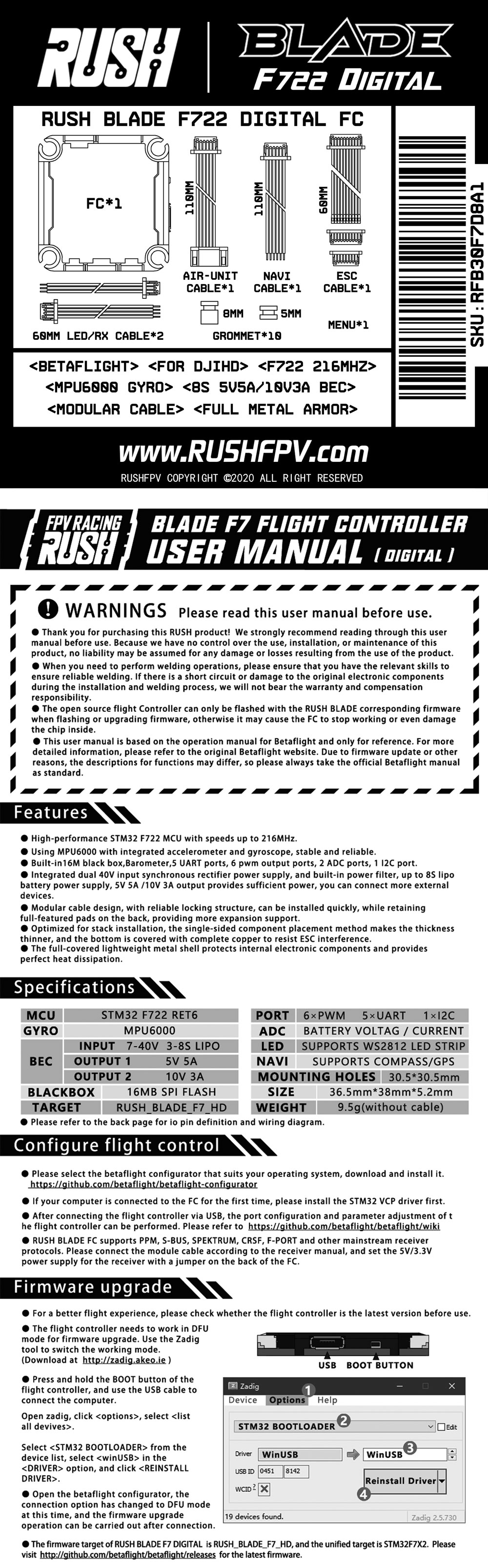

RUSH BLADE F722 30x30 Flight Controller by RUSHFPV for your  DJI Digital FPV System. This FC features high-performance STM32 F722 MCU, MPU6000, and Onboard OSD.

Features

  • High-performance STM32 F722 MCU with speeds up to 216MHz. • Using MPU6000 with integrated accelerometer and gyroscope, stable and reliable.
  • Built-in16M black box,Barometer,5 UART ports, 6 pwm output ports, 2 ADC ports, 1 l2C port.
  • Integrated dual 40V input synchronous rectifier power supply, and built-in power filter, up to 8S lipo battery power supply, 5V SA /10V 3A output provides sufficient power, you can connect more external devices.
  • Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
  • Optimized for stack installation, the single-sided component placement method makes the thickness thinner, and the bottom is covered with complete copper to resist ESC Interference.
  • The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.

Specifications

  • MCU: 216MHz
  • GYRO: MPU6000
  • OSD: Onboard
  • Input Voltage: 3-8S
  • BEC: 5V/5A 10V/3A
  • Mounting Holes: 30.5mm x 30.5mm

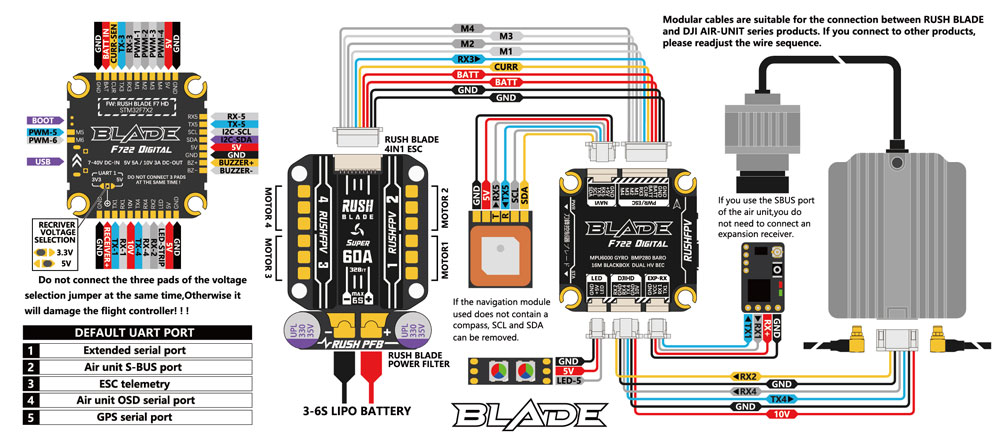

Wiring Diagram

Includes

  • 1 x RUSH BLADE F722 30x30 Flight Controller For DJI HD
  • 2 x 60MM LED/RX Cable
  • 1 x 60MM ESC Cable
  • 1 x 110MM NAVI Cable
  • 1 x 110MM Air Unit Cable
  • 5 x 8MM Grommet
  • 5 x 5MM Grommet
Additional Information
SKU 14307
Manufacturer RUSHFPV
UPC (GTIN) 751313222992
