RushFPV RUSH TANK II Ultimate 5.8GHz VTX w/ Smart Audio

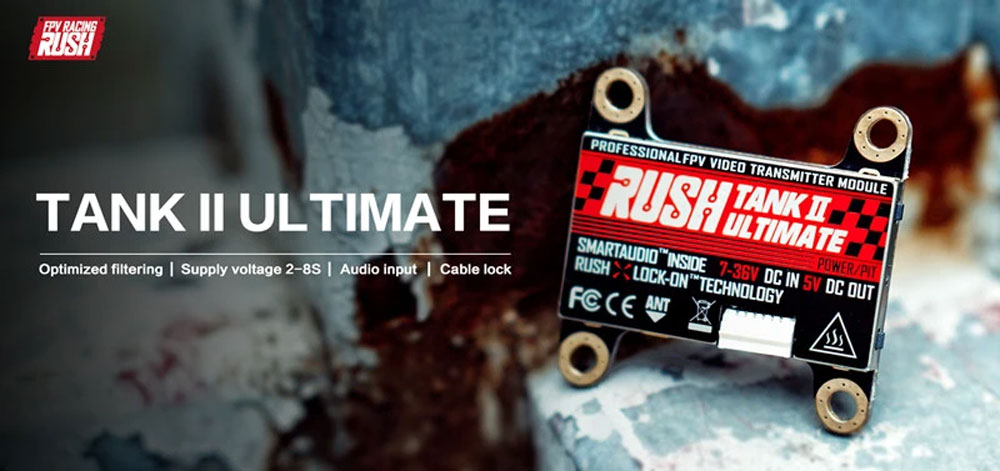

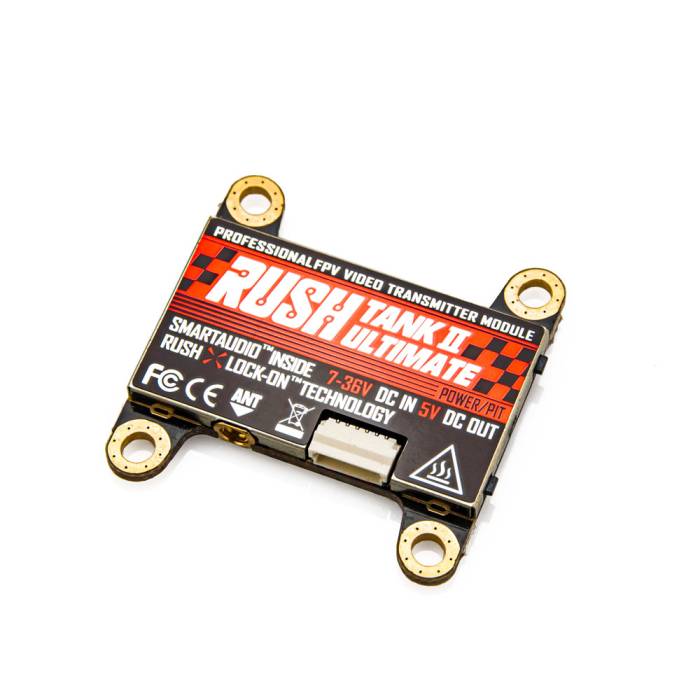

The RUSH TANK II by RUSHFPV is a high-quality 5.8GHz VTX that comes with four adjustable levels of transmitter power, PIT/25/200/500/800/mW.

About this product

The RUSH TANK II by RUSHFPV is a high-quality 5.8GHz VTX that comes with four adjustable levels of transmitter power, PIT/25/200/500/800/mW. The superior performance of Tank Racing VTX allows 8 quads to race in the same band, without interference.

This VTX has built-in SmartAudio protocol authorized by TBS. This can be set with RGB LEDs by conventional double buttons, which can then access SmartAudio ti set up and view the VTX information via the OSD menu.

Full metal casing means efficient heat dissipation as well as great protection from crashes and dings.

Mounting hole distance of 30.5*30.5mm makes convenient stacking with your other electronics.

This is the US version.

Features

  • Four adjustable levels of transmitting power. (PIT/25/200/500/800/mW) The superior performance of Tank Racing VTX allows 8 quads to race in the same band, without interference.
  • Side LED indicators to mean more intuitive status reading.
  • Impregnable: The newly designed power filtering system allows TANK RACING VTX to work stably with any power system within its limits without interference from the power supply.
  • Power LUT: Built-in high precision power lookup table which performs milliwatt power calibration for all channels. Full band has it’s own unique power output. In multi-pilot flight, all pilots will benefit from this and obtain a fair and consistent signal.
  • LOCK-ON: Frequency drift is completely eliminated, the full frequency band power is constant, 8 pilots compete at once easily.
  • Silent setting: The intelligent transmit circuit of TANK will not generate any interference signal during the switching and setting of VTX.
  • SmartAudio protocol authorized by TBS. This can be set with RGB LEDs by conventional double buttons, which can then access SmartAudio to set up and view the VTX information via the OSD menu.
  • Pit Mode: After entering the pit mode, the VTX power will be reduced to a minimum. The video feed is only visible to yourself at close range, so don't worry about disturbing others.
  • Tank Armor: Under the fully covered metal case there are 6 layers of PCB after waterproofing work. VTX is fully protected, avoiding external
  • interference and achieving ultra-high heat dissipation efficiency.
  • Simple installation, Intuitive operation.

Specifications

  • Item Name: Rush Tank II
  • Input Voltage: 7-36V DC
  • Output Voltage: 5V 1A
  • 12V Input Current: 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
  • Channels: 48CH RaceBand / LowRace
  • Power: PIT/25/200/500/800 mW
  • Audio: Support audio input
  • Dimensions: 36*36*4.5 mm
  • Weight: 6.8g(including cable)

Includes

  • 1 x RUSH TANK II VTX
  • 1 x MMCX to SMA Cable
  • 1 x 6 Pin Harness

FPV Regulatory Notice

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

More Information

SKU 13569
UPC (GTIN) 751313217905
Manufacturer RUSHFPV
NDAA Compliant No
Mounting Pattern 30.5x30.5mm (Mini)
Frequencies 5.8GHz
Item Returns This item can be returned
