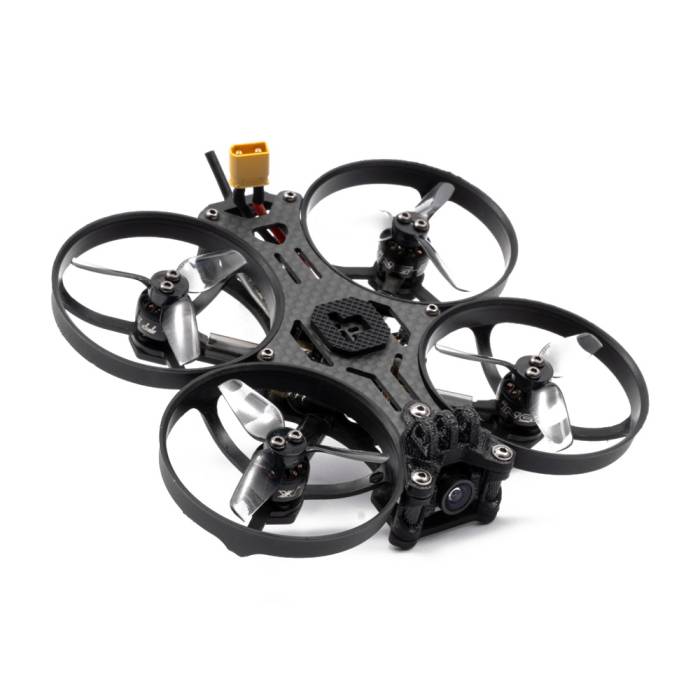

iFlight Protek R20 BNF Cinewhoop Analog - ELRS 2.4GHz
iFlight Protek R20 BNF Cinewhoop Analog - ELRS 2.4GHz
About this product
The iFlight Protek R20 BNF Cinewhoop Analog - ELRS 2.4GHz comes pre-tuned and pre-setup. Simply Bind n' Fly! Basic PID- and Filter tuning was applied for a great flight experience! Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess! To restore lost tunes or updates, please check this article on "Firmware/Factory Dumps". You can also check out "How to disable Angle-Mode, activate Acro-Mode".
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Angle-Mode (self-balancing level mode) enabled
- Comes with basic PID- and Filter tuning
- Pre-tuned and pre-setup
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- VTX: SucceX Mini Force 5.8GHz 600mW VTX Adjustable
- Weight: 89.2g (without battery)
- Bottom plate thickness: 2.5mm
- Motor: XING-E 1105 6500KV
- Top plate thickness: 1.5mm
- Body Size: 132mm*122mm
- FC pattern: 25.5*25.5mm
- FPV cam spacing: 14mm
- Whoop F4 AIO 1.1(LINK)
- Arm Thickness: 2.5mm
- Propeller size: 2 inch
- Wheelbase: 94mm
iFlight SUCCEX-D F4 V1.1 WHOOPÂ AIO
- Mounting pattern: 25.5*25.5mm/φ3mm
- Firmware Target: IFLIGHT_F411_PRO
- Constant current: 20A,25A (Burst)
- Config:IFLIGHT_F411_PRO.config
- Connector: Micro-USB
- ESC Firmware: Q-H-50
- Current sensor: yes
- BEC output: 5V 2A
- ESC Telemetry: NO
- Size: 30.5*30.5mm
- MCU: STM32F411
- BLHeli: BLHeli-S
- Barometer: NO
- Blackbox: 8MB
- Gyro: BMI270
- INA pad: nR2
- Weight: 7.4g
- Input: 2-4S
iFlgiht SucceX Mini Force 5.8GHz 600mW VTX Adjustable
- Mounting pattern: 20*20Φ3/25*25 mmΦ2
- Power: PIT/25/200/400mW/600mW
- Antenna interface: MMCX
- VTX protocol: IRC Tramp
- Output: 40 channels.
- Size: 29*29mm
- Weight: 4g
Â
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
Includes
- 1x iFlight Protek R20 BNF Cinewhoop Analog - ELRS 2.4GHz
- 1x iFlight Lipo Strap 10*150mm (Color May Vary)
- 2x HQProp 2*2*3 (Set of 4 - Color May Vary)
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 19185 |
---|---|
UPC (GTIN) | 764613352139 |
Manufacturer | iFlight |
NDAA Compliant | No |
Item Returns | This item can be returned |
