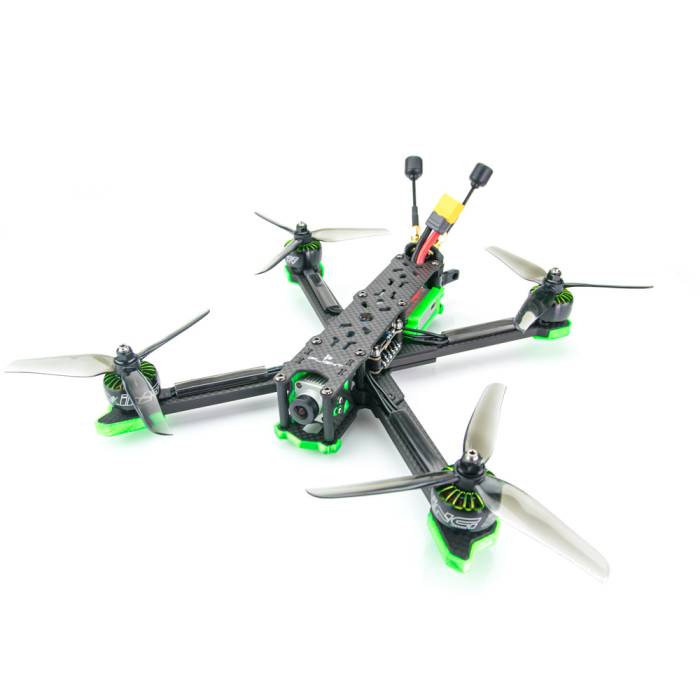

The Titan XL5 HD BNF features the amazing DJI FPV System, which provides amazing visual 720p video clarity! The Titan XL5 HD BNF is equipped with iFlight's Succex-D Stack and their popular XING motors. All you need to do is bind-and-fly!

After their popular Titan DC5 (DeadCat style frame) approach, iFlight decided to take a step back to the roots and create a new X-Geometry frame to get the best performance on both axis and better weight distribution for freestyle!

This quad comes in different KV motors: XING 2208 2450KV (4S) or 1800KV (6S).

Note: This version has the original Succex-D F7 FC and 50A ESC Stack.

VIDEO: QUAD OF THE YEAR? - iFLIGHT TITAN XL5 with DJI & GPS! - BEST REVIEW & FLIGHTS

• Variable GoPro TPU mount (supports ND-Filter inserts)
• GPS pre-installed for more safety at a distance
• 360° TPU protection and Antenna mounts
• 6mm arm design for more durability
• XING 2208 motors for more power

PRE-TUNED AND PRE-SETUP

Don't worry about tuning, iFlight did that for you already! A basic PID- and Filter tuning were applied for a great flight experience! GPS-rescue mode is configured and just needs to be enabled in your Betaflight Configurator! (Please be aware of how it works before you use it!) Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess! Motor Power is configured to 70% throttle limit (scaled) by default to give more throttle stick resolution for an easy start on the 6S 1800kv version. Need more Power? Just enable 100% in the Betaflight Configurator to unleash the Beast!

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Camera plate thickness: 2mm (2.5mm including TPU inserts)
• Motors: iFlight XING 2208 - 2450KV 4S or 1800KV 6S
• Main body dimension: 185*133mm
• Camera/VTX: DJI FPV Air Unit Kit
• Propellers: iFlight Nazgul FPV F5
• Bottom to top distance: 30mm
• Bottom plate thickness: 2mm
• Top plate thickness: 2mm
• ESC: Succex-D 50A 4-in-1
• Arm thickness: 6mm
• Wheelbase: 250mm
• FC: SucceX-D F7

IMPORTANT NOTES

• The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won't need to set up another receiver. If you don't have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
• If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
• Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

• Wiring Diagrams and Factory Dumps

• 1x iFlight Titan XL5 HD BNF w/ GPS + DJI Air Unit + Succex-D Stack
• 2x Nazgul 5140 Propeller (Set of 4 - Color May Vary)
• 2x MMCX to RP-SMA Female Adapter Cable
• 2x Albatross LHCP RP-SMA 5.8g antenna
• 1x TPU Antenna holder for DJI antenna
• 1x iFlight Lipo Strap
• 1x TPU Lens Cover
