DJI HD FPV System Long Range AXII Antenna Upgrade Bundle

More Views

DJI HD FPV System Long Range AXII Antenna Upgrade Bundle
Upgrade your stock DJI HD FPV System with the Lumenier Long Range AXII Antenna Upgrade Bundle. Up to a 50% increase in performance over stock antennas!
Choose option below...

From: $92.08

To: $172.80

Price as configured: $0.00

RF RP-SMA Male to SMA Female Adapter   +$2.84

* Required Fields

Price as configured: $0.00

Description

Digital HD FPV is finally here, and it is amazing! Now you can get even more performance by upgrading to Lumenier AXII antennas.

The DJI Fly More Combo gives you incredible 720P 120fps video in a crystal clear digital signal. As good as the system is out of the box, there is still room for improvement by simply upgrading the antennas. This is where the Lumenier AXII antennas come into play.

The Lumenier AXII antennas are a plug and play instant upgrade to your wireless HD video link! By simply changing out the antennas on your goggles and the air unit with the new AXII 2 antennas you will see an improvement in range, signal strength and overall performance. We have seen an improvement of up to 50% more signal strength compared to stock DJI antennas in many situations.

AXII Antennas

This antenna upgrade bundle features a choice between 2 high gain patch style antennas which give you a large increase in signal range and penetration. Compared to stock DJI antennas these long range patch antennas are capable of doubling your range or even more in the direction the antennas are facing. A high gain antennas like the AXII DUO Patch has 12.2dB with a 80 degree FOV. This means within 80 degrees of where the antennas is pointing you'll have a super strong connection with your air unit on your drone. Now you can fly farther, or go behind more objects before you lose video/control.

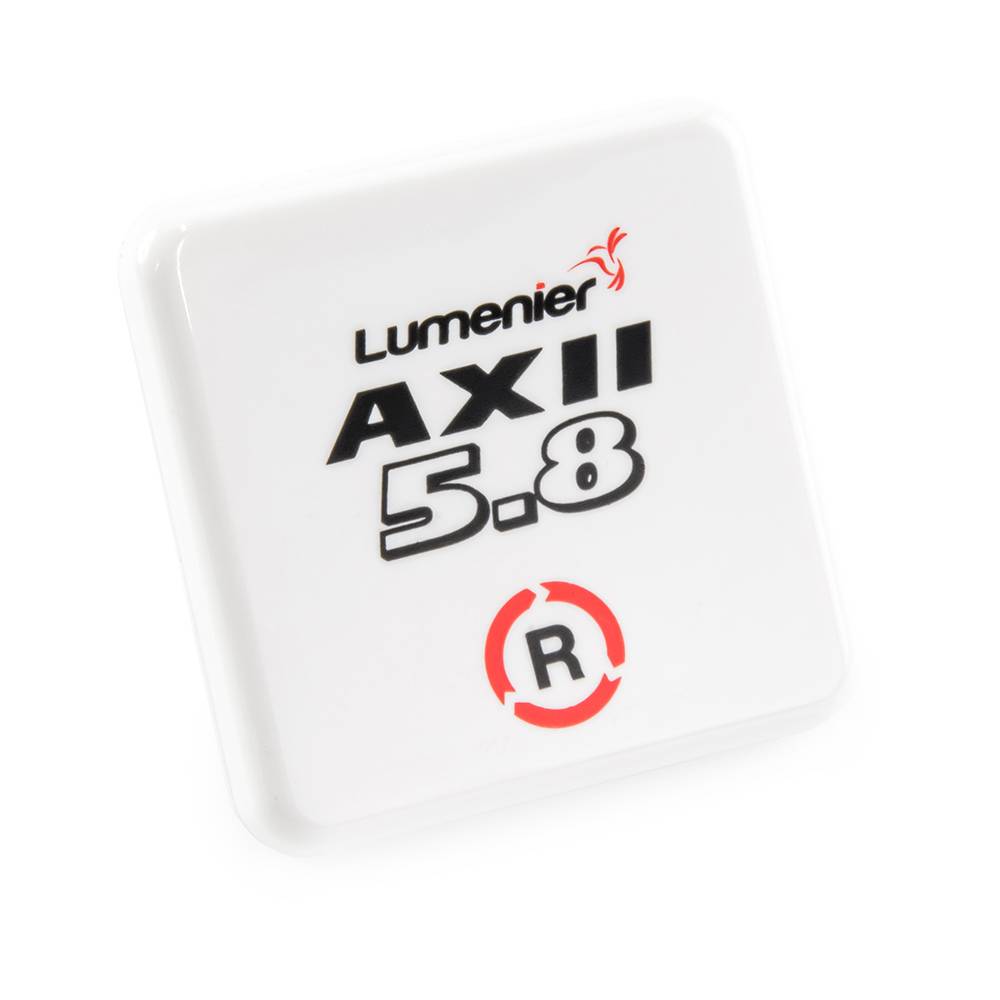

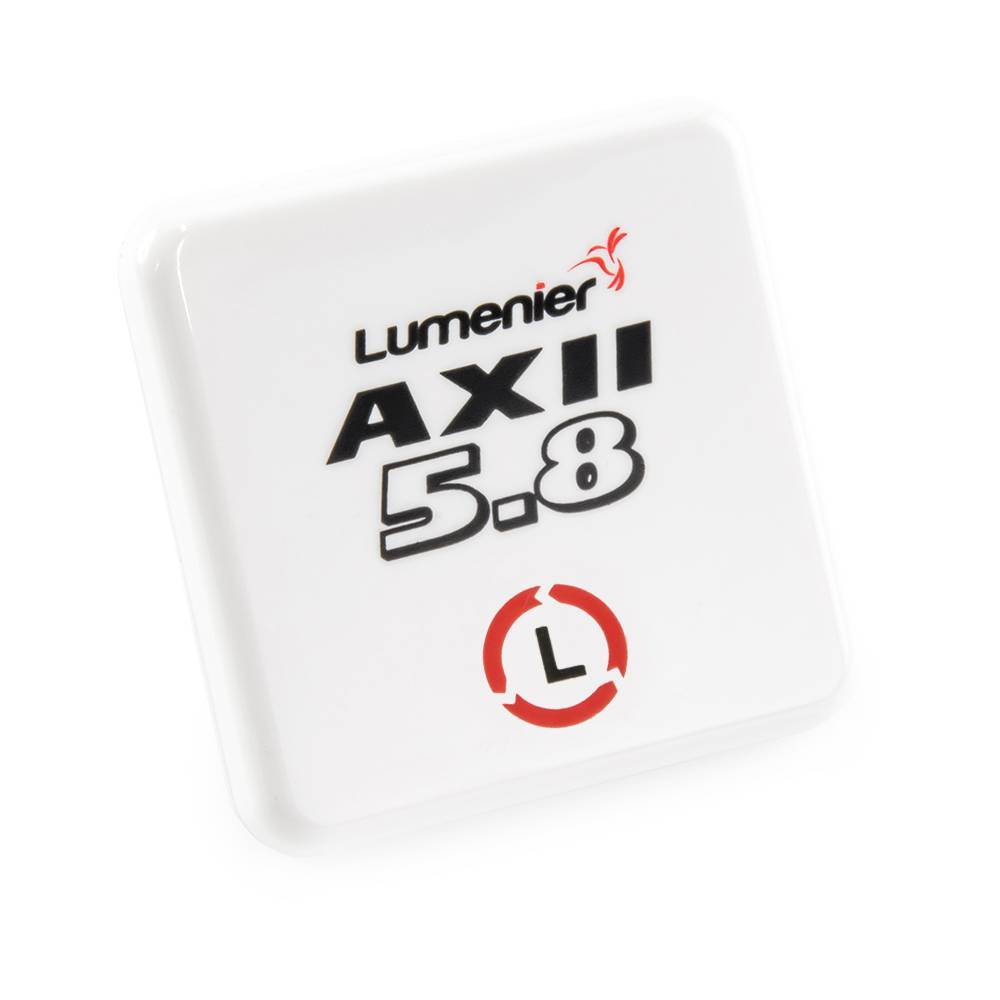

Lumenier AXII Patch Antennas (8.4dB)

The Lumenier AXII 5.8GHz Patch Antenna offers you the highest performance you can get from a mini patch antenna designed for FPV.  The Lumenier AXII Patch has an industry leading 8.4 dBiC gain for long range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features a best in class 95% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII 5.8GHz Patch Antenna.

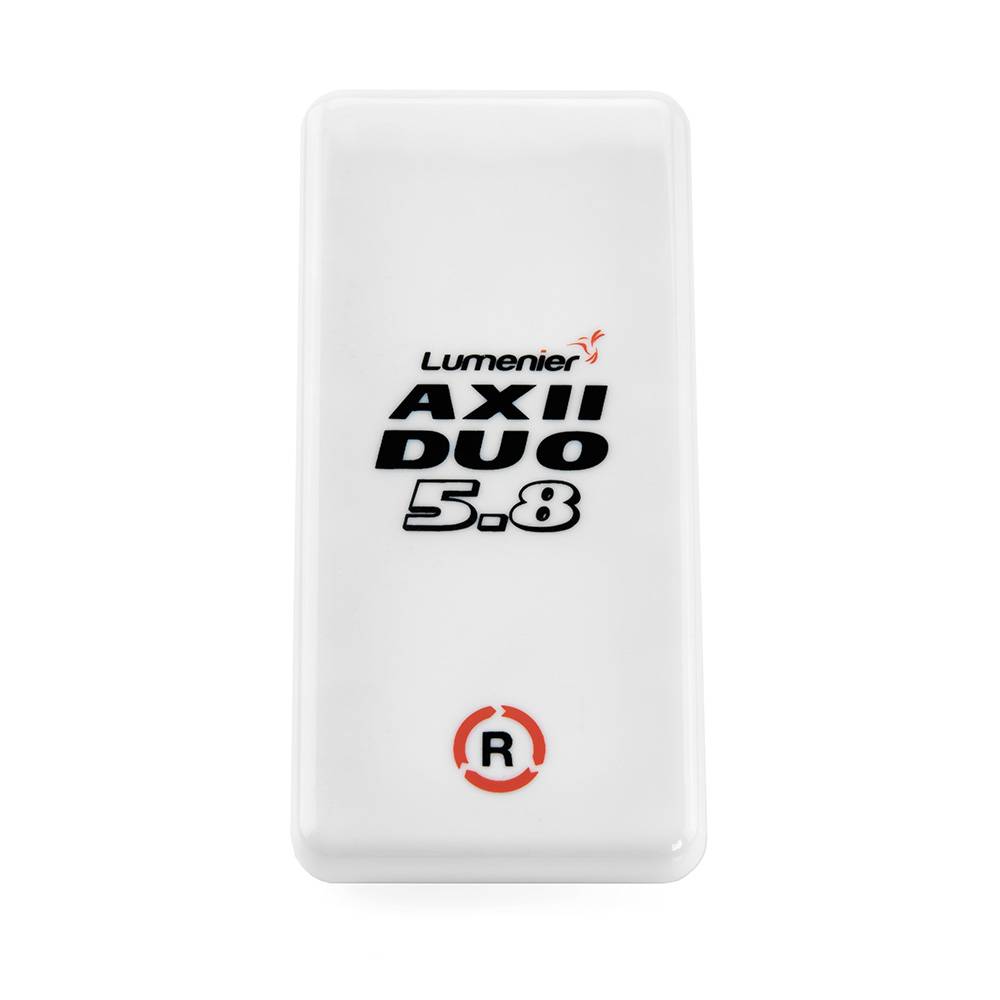

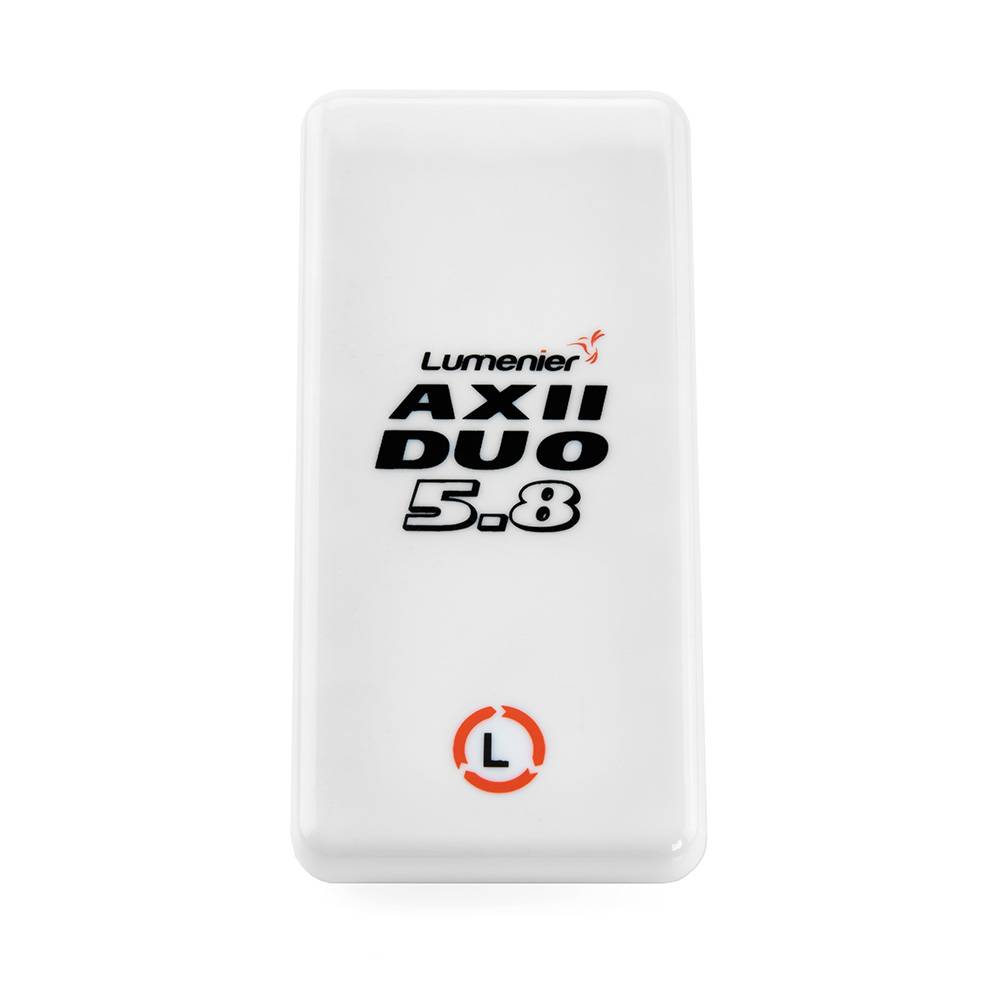

Lumenier AXII DUO Patch Antennas (12.2dB)

The Lumenier AXII DUO 5.8GHz Patch Antenna offers you the highest performance you can get from a high gain mini patch antenna designed for FPV. The Lumenier AXII DUO Patch has an industry leading 12.2 dBiC gain for long range flying and excellent penetration through objects compared to standard omni-directional FPV antennas. It also features a best in class 95% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII DUO 5.8GHz Patch Antenna.

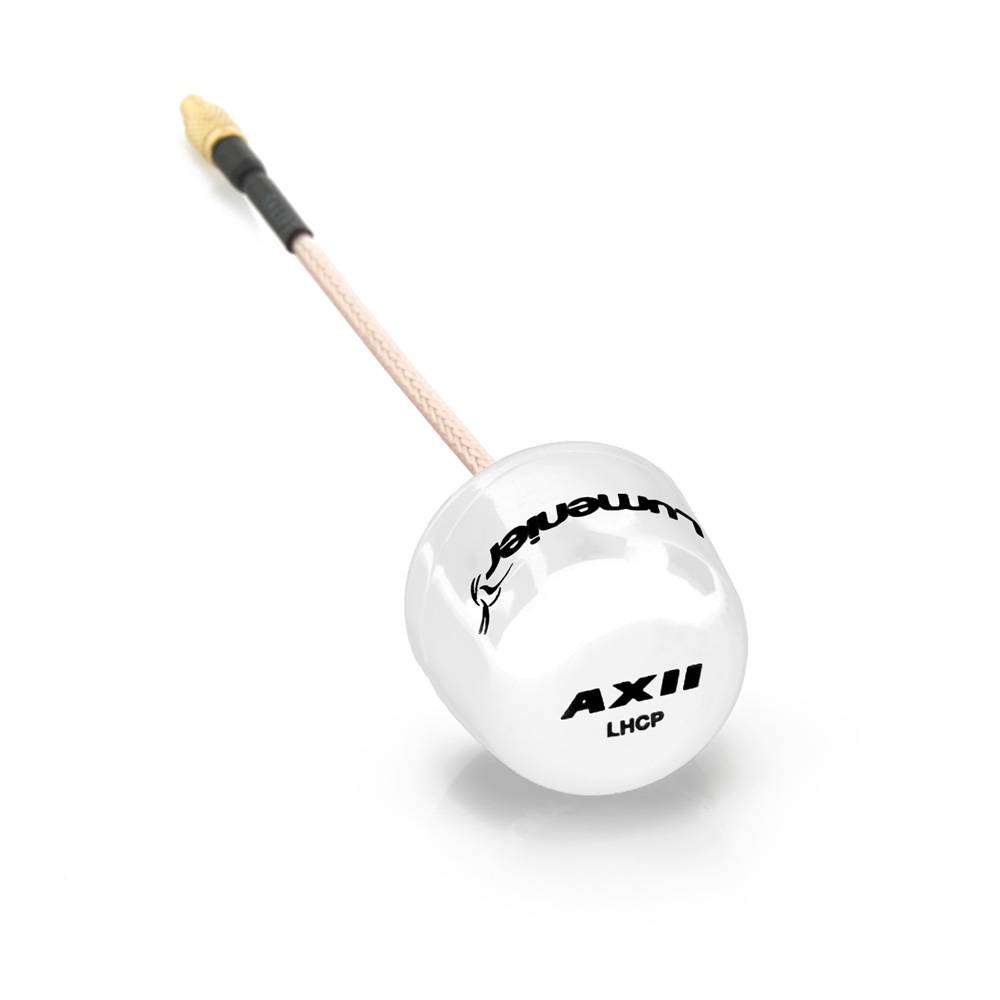

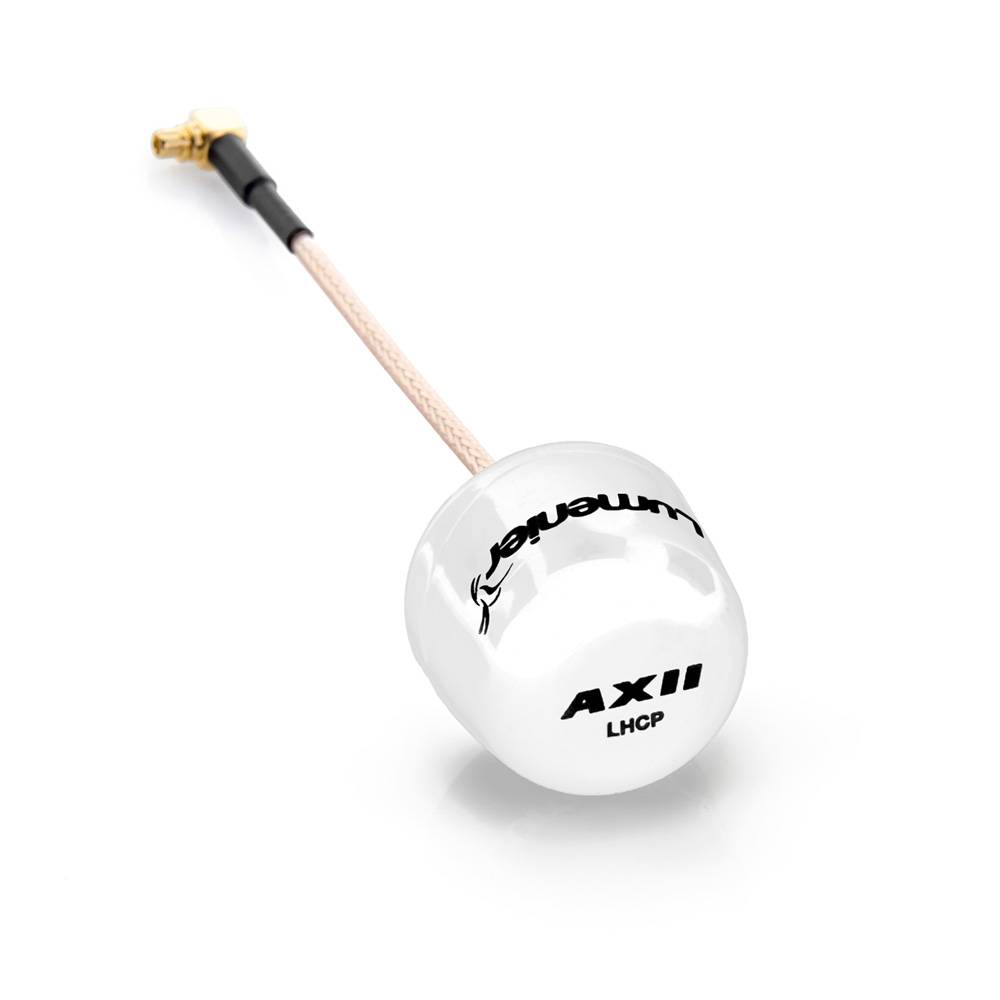

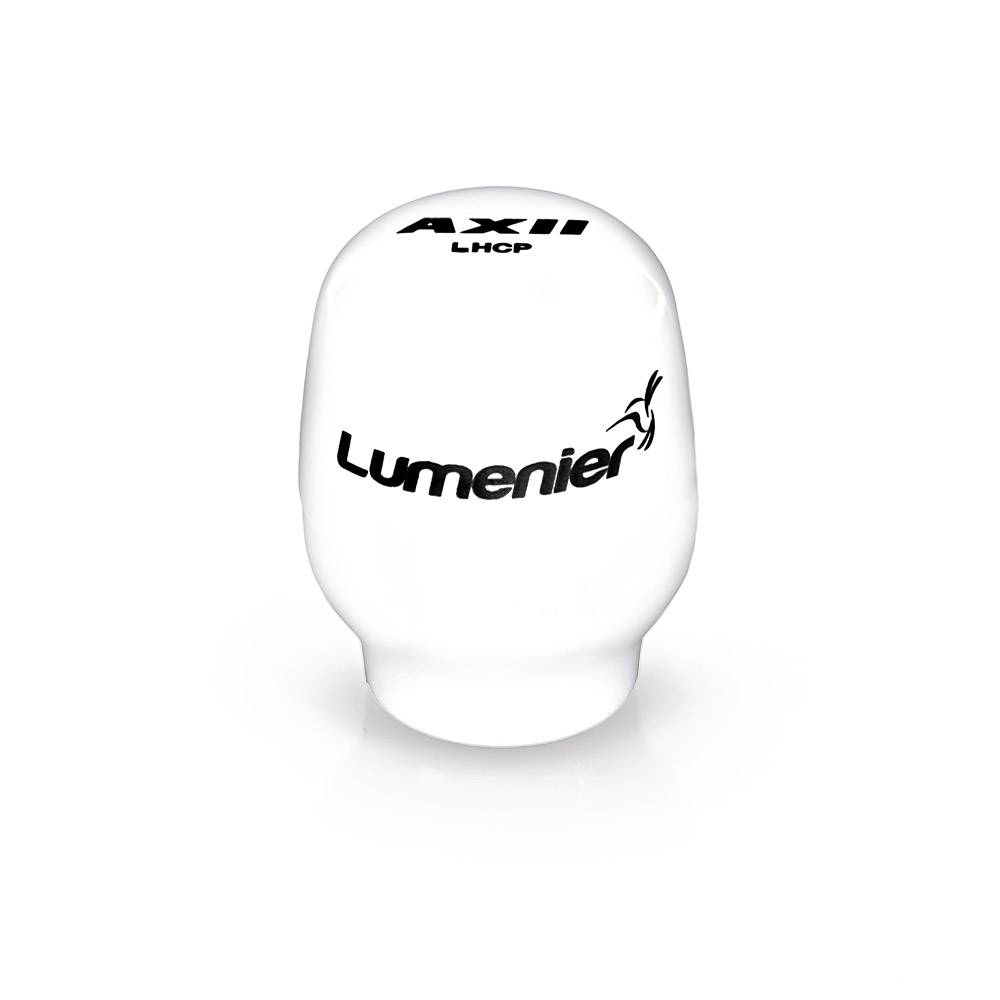

Lumenier AXII 2 Antennas (2.2dB)

The Lumenier AXII 2 Stubby antennas feature a high 2.2dBiC gain, and a wide 5.3 - 6.2GHz Bandwidth, resulting in a strong wireless link between your Air Unit and DJI system. Perfect for all around coverage.


Note: The stock DJI antennas are LHCP, so if you plan to keep the stock antennas on the air unit it is important to choose LHCP on yoru goggles as well. It is suggested to match all antennas on your system to the either LHCP or RHCP AXII antennas in this bundle to ensure a matched polarization between your air unit and goggle antennas for the best performance. Mixing the LHCP antennas with the RHCP antennas may see a loss in performance.

Save $$ When Buying This Bundle!

You save 5% off normal retail price of each component when buying through this HD AXII Antenna Upgrade bundle.

What We Suggest

Remember to choose all LHCP or all RHCP antennas to match each other. If you are still using stock DJI antennas then you should choose LHCP to match the stock DJI antenna polarization.

The DJI FPV Goggles and Air Unit are NOT included in this bundle. They are sold separately.

Additional Information
SKU 13200
UPC (GTIN) No
Antenna Connector SMA
Antenna Frequency 5.8GHz
