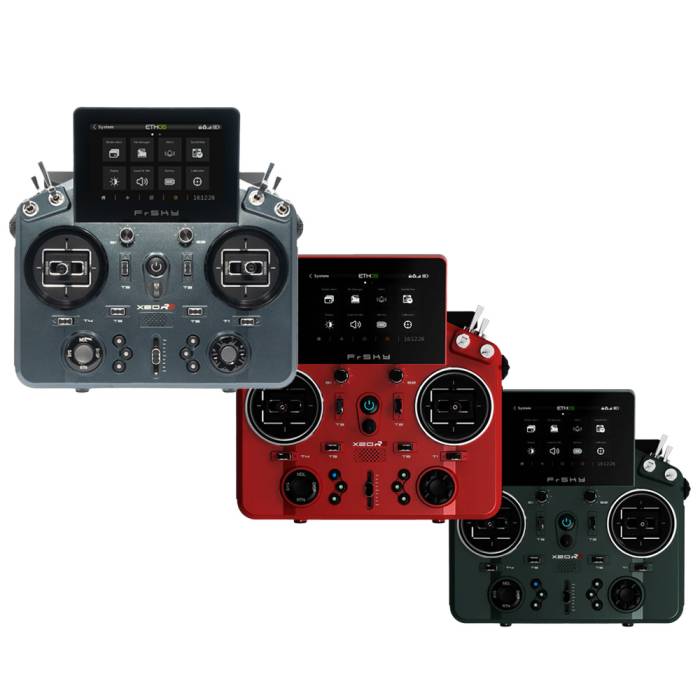

FrSky X20 RS Tandem Radio Transmitter

Experience the FrSky X20 RS Tandem Radio Transmitter, equipped with exceptional RF performance with the TD-ISRM RS built-in RF module. Utilizing a robust dual-band 900M/2.4G RF signal link and supporting multiple protocols like TW and ACCESS R9 for versatile connectivity. The transmitters also feature enhanced design with ergonomic improvements, including a redesigned bottom-hand grip and customizable inputs for precise control. Upgraded antenna handling and two external connectors support additional 2.4G and 900M antennas, enhancing RF capabilities for extended control range in rugged outdoor environments.

Choose a Color:

• Blackish Green
• Cherry Red
• Slate Gray

Note: The X18SE Offers an Upgraded Screen With Brighter Display Performance.

VIDEO: FRSKY STEVE: NEW X20RS TRANSMITTER, TANDEM PROTOCOL AND IMPROVING RELIABILITY ON YOUR PLANES

• MC20R All CNC High-Precision Hall-Sensor Gimbals with 10 Ball Bearings
• 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
• All Knobs, Trims, and Central Linear-Slider with All-CNC Metal Caps
• Data Transmission & Recharge System via USB Type-C Interface
• 800 x 480 Resolution Outdoor High Brightness Touchscreen
• Super Low-Latency and Long-Range Control with Telemetry
• 900M/2.4G External Antenna Connectors (LoRa mode)
• Built-in TD-ISRM RS Dual-Band Internal RF Module
• Haptic Vibration Alerts and Voice Speech Outputs
• Further Improvements for Form Factor Design
• 2 Knobs, 4 Standard Trims with 2 Extra Trims
• High-Speed PARA Wireless Training System
• Upgraded Robust Antenna Handle
• Built-in 6-axis Gyroscope Sensor
• 2 Angle Adjustable Slider Levers
• Built-in 8GB Flash Drive Storage
• Digital Audio Power Amplifier
• Text to Speech (TTS) Function

EASY TRAVEL-ADJUSTABLE MC20R GIMBALS (WITH ANY DESIRED DEGREE BETWEEN 45° TO 60°)

The MC20R gimbals also feature an 8° rotatable panel and can be adjusted to a 45° travel position. What’s even better is that the angle is not limited to just 45° and 60°; the MC20R gimbal allows for adjustment to any travel position between 45° and 60°. To enhance convenience for pilots in outdoor applications, the angle can be directly adjusted using a 1.5mm hexagon screwdriver through the adjustment hole on the gimbal panel, eliminating the need to disassemble the radio casing.

UPGRADED ROBUST ANTENNA HANDLE & EXTERNAL LoRa ANTENNA CONNECTORS

The newly upgraded antenna handle incorporates good impact resistance capabilities, making it suitable for tough outdoor field conditions. The reinforced and thickened antenna casing improves comfort while gripping, without compromising antenna performance. On the contrary, the redesigned antenna transmits signal data more effectively, providing pilots with a more reliable flying control experience. The X20R & X20RS are also equipped with two external antenna connectors, allowing for mounting additional 2.4G and 900M antennas to enhance RF capabilities in LoRa modes, achieving enhanced long-range control.

BUILT-IN MASS STORAGE & TEXT TO SPEECH FUNCTION

To save users the trouble of deciding on storage capacity, both the R and RS versions feature built-in 8GB flash storage, offering ample space to meet all your radio storage needs with high-speed data transmission. Thanks to the upgraded storage feature, the TTS (Text-to-Speech) function of the X20 RS versions can quickly and conveniently convert typed English words into spoken speech. This enables the ETHOS system to flexibly match triggered operational statuses with generated speech audio, providing clear outdoor alerts through the digital power amplifier module.

DIFFERENCES IN APPEARANCE & FUNCTIONAL INPUTS

The X20R and X20RS have undergone changes in appearance from the original X20 design. The bottom hand grip adopts the overall design of the PRO version, eliminating the need for an additional grip cover and allowing the palm to fully grasp the bottom part for a more comfortable and relaxed grip. Additionally, the Lite-type external module slot has been adjusted to provide a more fitting installation space for external modules of different shapes, enhancing convenience. The R and RS versions add 2 extra trims, enabling more precise adjustments during operations. The slider levers on both sides of the transmitter support center positioning adjustments to accommodate various user habits and preferences. Primary input components, including trim caps, center-slider caps, and knobs, are all crafted from metal, ensuring rugged quality and enhanced durability for outdoor use.

DUAL-SIDE HAPTIC GIMBAL FEEDBACK

The gimbal vibration feedback function can be easily enabled or disabled via a switch. The dual-sided gimbal's vibration feedback can operate independently, allowing configurations to match distinct feedback preferences tailored to various RC enthusiast applications.

TD-ISRM RS RF PERFORMANCE

With solid performance based on the dual-band 900M/2.4G RF signal link and multiple operating combinations of RF modes, the TANDEM X20R & X20RS versions are equipped with the TD-ISRM RS built-in RF module, capable of supporting multiple protocols (such as TW, TD, etc.). The TD-ISRM RS RF module features dual 2.4G TW RF mode and supports simultaneous activation, operating under TW and ACCESS R9 modes with the same module. In this configuration, TW and ACCESS R9 receivers can be connected via the SBUS IN/OUT ports to achieve redundant backup. This RF signal connection solution utilizes three different RF links simultaneously in RC applications, enhancing RF signal reliability, especially in long-distance RC operation scenarios.

• Recharge System for 2S Li-ion Battery: USB Type-C Interface
• Compatibility: ACCST D16 & ACCESS & TD & TW receivers
• Operating Temperature: -10°C ~ 60°C (14°F ~ 140°F)
• Weight: 892 g (Battery Excl.) / 1024 g (Battery Incl.)
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
• Backlit Touchable LCD Resolution: 800 x 480
• Dimension: 205 x 213 x 90 mm (L x W x H)
• Operating Current: 600 mA @ 7.4V (typ.)
• Internal RF Module: TD-ISRM RS
• USB Adaptor Voltage: 5V ± 0.2V
• Charging Current: ≤1A ±200mA
• Number of Channels: Up to 24
• USB Adaptor Current: >2.0A
• Built-in Flash Storage: 8 GB
• Operating System: ETHOS

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

• FrSky X20 RS Tandem Radio Transmitter Manual

• 1x FrSky X20 RS Tandem Radio Transmitter (Choose Your Color)
