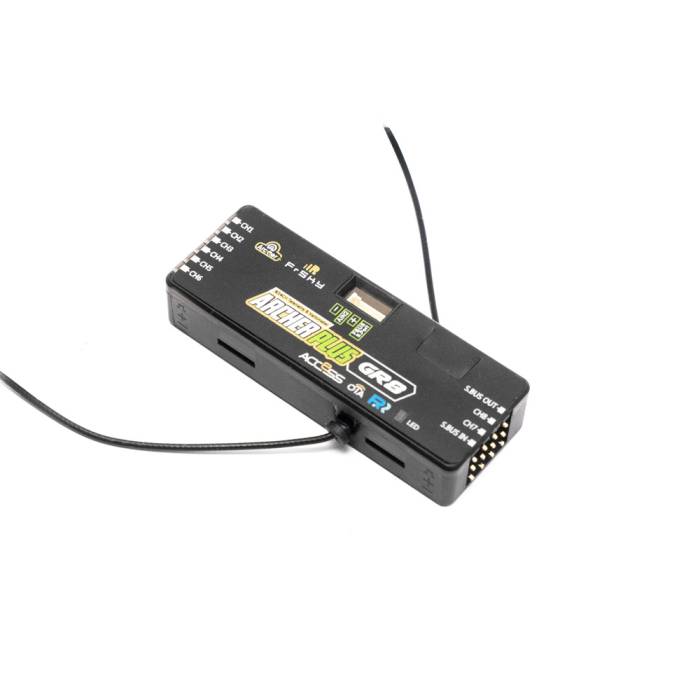

FrSky Archer Plus GR8 2.4GHz ACCESS Receiver
FrSky Archer Plus GR8 2.4GHz ACCESS Receiver
In Stock
About this product
The Archer line now includes the new Archer Plus Series, boasting enhanced features. These receivers offer improved anti-RF-interference capability, both ACCESS and ACCST D16 modes, and a Black-Box function for preserving flight data. The Archer Plus GR8 receivers feature high-precision PWM channels, and dual detachable antennas for optimal reception, and can serve as Primary receivers in redundant setups. Additionally, they support FBUS protocol for seamless pairing with telemetry devices. The Archer Plus GR8 also boasts an upgraded variometer for more accurate altitude and vertical speed data, along with enhanced various audio feedback from FrSky ACCESS-enabled transmitters.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Full Control Range with Telemetry (S.Port or FBUS)
- Smart-Matched ACCESS & ACCST D16 Modes
- SBUS Out Port (Supports 16CH/24CH Mode)
- SBUS Out Port (Supports 16CH/24CH Mode)
- Enhanced Anti-RF-Interference Capability
- Signal Redundancy Support (SBUS In)
- Over-the-air (OTA) Firmware Update
- Upgraded Variometer Sensor
- Basic Black-Box Function
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Operating Range: >2km (Full range) Range may vary based on local conditions
- Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters
- Voltage Measurement Range via AIN2 (External device): 0-35V
- Dimension: 54 x 20 x 10 mm (L x W x H)
- Operating Voltage Range: 3.5 - 10V
- Battery Voltage Divider Ratio: 1:10
- Operating Current: <65mA @ 5V
- Antenna Connector: IPEX4
- Weight: 9.8g
- Variometer Measurement Range
- Altimeter Range & Resolution: -700m to 10000m & 0.1m
- Vertical Speed Range: ±10m/s
- Number of Channels: 8/24 channels
- 8 High-precision PWM & 16 SBUS channels Mode
- 8 High-precision PWM & 24 SBUS channels Mode
IMPORTANT NOTES
- Some features require the support of ACCESS and ETHOS.
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x FrSky Archer Plus GR8 Receiver
- 2x Cable
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 21929 |
---|---|
UPC (GTIN) | 724376361755 |
Manufacturer | FrSky |
NDAA Compliant | No |
Item Returns | This item can be returned |
