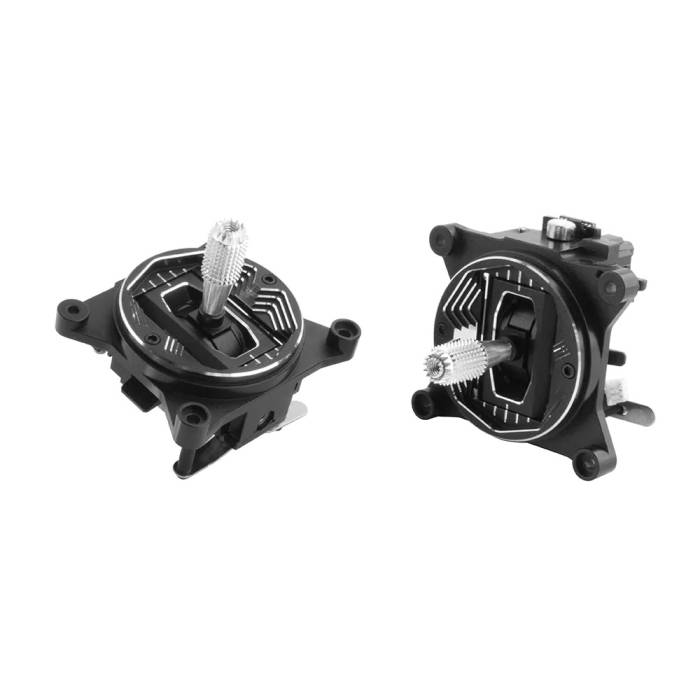

This Radiomaster AG01 Mini CNC Hall Gimbal Set features both the Self-Centering Gimbal and the Throttle Gimbal. The AG01 Mini is fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning. The AG01 will take your TX12 or Zorro to the next level. From the aviation-grade aluminum construction, non-contact hall sensors, and pre-installed Sticky360 Mini Gimbal Sticks, be prepared to revolutionize your compact radio experience!

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: AG01 gimbals now available for Zorro and TX12 Radiomaster radios!

• Non-contact hall sensors for accurate control inputs and precise centering.
• Adjustable vertical travel angle (Min. 38°, Max. 54°)
• Made with CNC-processed aviation-grade aluminum.
• Quad precision bearings for unparalleled stick feel.
• Custom designed for RadioMaster Zorro & TX12
• Sticky360 Mini Gimbal Sticks as standard.

INSTALLATION INSTRUCTIONS FOR ZORRO RADIO

The Zorro radio is configured as Mode 1 or Mode 2 by the screws mounted in the rear case of the radio. Both gimbals should be installed in a self-centering configuration (as default out of the box) in the Zorro radio. Once the radio is re-assembled the screws in the rear case of the Zorro will set the throttle gimbal.

INSTALLATION INSTRUCTIONS FOR TX12 RADIO

One gimbal must be set as throttle and one as self-centering before installation in the radio.
1. Use the included screw (see parts bag) to hold down the centering lever and set the gimbal as a throttle gimbal.
2. Adjust the throttle tension bar until the desired tension is achieved.

• Adjustable Vertical Travel Range: 38°—54°
• Name: AG01 Mini CNC Hall Gimbal
• Temperature Range: -20°C-85°C
• Self-centering adjustment: Yes
• Linearity: Real-time (No delay)
• Easy mode adjustment: Yes
• Working voltage: DC 3.3V
• Sensor Type: Hall Sensor
• Adjustable tension: Yes
• Weight: 42g(±0.3g)
• Size: 49x42x48mm
• Quad bearing: Yes

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

• RadioMaster TX12 Multi-Protocol OpenTX 2.4GHz RC Transmitter
• RadioMaster Zorro Radio Controller - 4-in-1 Multi-Protocol

•   (Insert links such as manuals, firmware, etc)

• 1x RadioMaster AG01 Mini Hall CNC Gimbal - Self Centering
• 1x RadioMaster AG01 Mini Hall CNC Gimbal - Throttle
• 2x Spare Normal Tension Spring
• 2x Throttle Tension Screw
• 8x Installation Screw
• 2x Hex Tool
