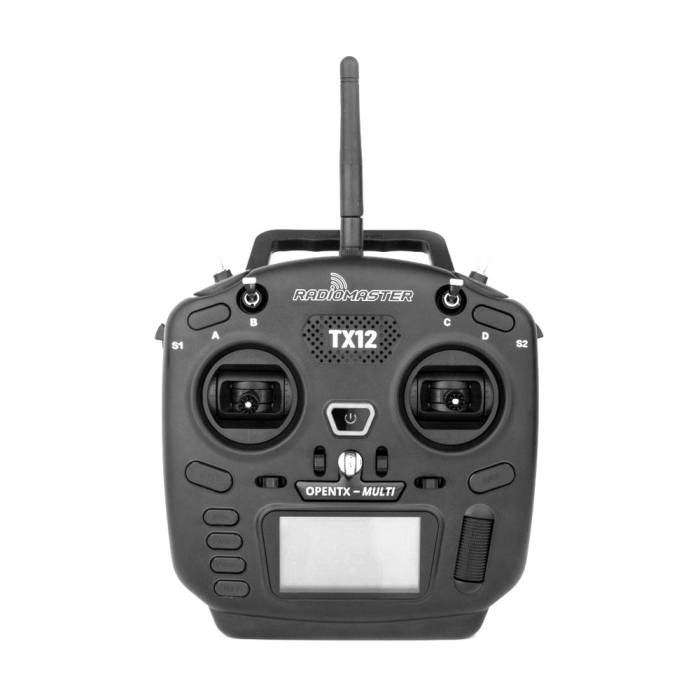

The RadioMaster T12 Multi-Protocol OpenTX 2.4GHz RC Transmitter is the most compact in its class! This mini radio controller is officially supported by OpenTX Firmware and Companion PC software.

Features

• JR Style External Module Bay
• Supports up to 16 Channels.
• Large Battery Compartment
• Built-In CC2500RF Chip.
• Removable Antenna
• Compact - Mini Size
• Ergonomic Design
• Supports MicroSD
• Built-In Charging
• Easy Navigation
• Folding Handle
• Voice Support
• OpenTX
• Metal roller

Specifications

• Size: 170*159*108mm
• Weight: 363g
• Frequency: 2.400GHZ-2.480GHZ
• RF Chip: Single-chip Multi-protocol（CC2500）
• Supported Protocols: Corona, Hitec, Futaba S-FHSS, Frsky D16/D8, RadioLink, Graupner HoTT*
• Transmitting Power: 20dbm
• Antenna Gain: 2db
• Working Current: 160mA@8.4V
• Voltage Range: 6.6-8.4v DC
• Range: > 2km @ 20dbm (depending on receiver)
• Radio Firmware: OpenTX（Transmitter）/ Multi-Module（RF module)
• Channels: Up to 16 (depending on the receiver)
• Display: 128*64 Monochrome LCD display
• Gimbal: High precision potentiometer gimbals
• External module: JR/FrSKY/Crossfire compatible
• Upgrade Method: USB/SD card & OpenTX Companion PC software

Manuals

• T12 Quick Start Guide
• T12 User Manual

Firmware Updates

• TX12 Production SD
• TX12 Production Firmware

Includes

• 1x RadioMaster T12 Radio Controller Transmitter
• 1x USB-C Cable
• 1x 18650 Tray
• 1x Antenna
• Note: SD Card Not Included
