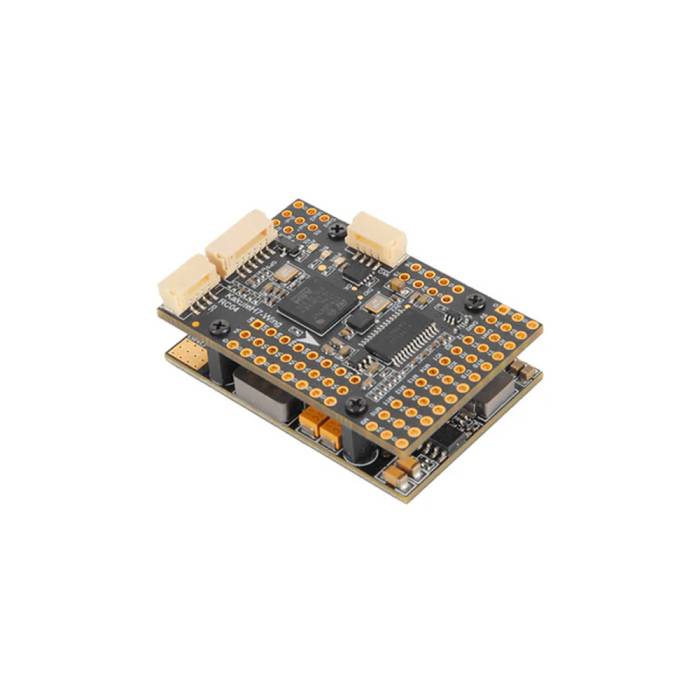

Holybro Kakute H743-Fixed Wing Flight Controller

The Holybro Kakute H743 Wing is a fully-featured flight controller specifically designed for fixed-wing and VTOL applications. It features the STM32H743 processor running at 480 MHz, along with CAN Bus support, dual camera support with a switch, an ON/OFF Pit Switch, 5V, 6V/8V, and 9V/12V BEC, as well as plug-and-play GPS, CAN, and I2C ports.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• Integrated Voltage & Current Sensor
• High-Precision ICM-42688-P IMU
• Compact, Low-Profile Design
• Powerful STM32H743 MCU
• Dual Camera Input Switch
• On-Board BEC Outputs
• BMP280 Barometer
• Plug-and-Play Ports
• 9V/12V Pit Switch
• CAN Bus Support

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• MCU: STM32H743, 480 MHz, 1 MB RAM, 2 MB Flash
• Blackbox: MicroSD card slot on SDMMC2
• Barometer: BMP280 (I2C4)
• IMU: ICM-42688P (SPI3)
• OSD: AT7456E (SPI2)
• Connectivity:

  • 14x PWM outputs, 1x CAN, 5x ADC (Bat1/Curr1, Bat2/Curr2, and RSSI)
  • 3x I2C (I2C1 and I2C2 for external devices, I2C4 for onboard sensors)
  • 3x LEDs for FC status (Blue, Red) and 3.3V indicator (Green)
  • 7x UARTs (1, 2, 3, 5, 6, 7, 8) with built-in inversion
  • USB/DFU Key Extender with USB Type-C
• Additional Features:

  • Battery voltage sensor: 5K:25.5K (Scale 1800 in INAV, BATT_VOLT_MULT 18.18 in ArduPilot)
  • 5V/9V(12V) power switch for Camera/VTX
  • High-precision current sensor (90A continuous, 220A peak)
  • Static power: 160 mA @ 5V
  • Dual camera input switch
• Power Distribution Board (PDB):

  • Current Sense: 90A continuous, 220A peak (Scale 275 in INAV, 36 A/V in ArduPilot)
  • Input Voltage Range: 1036V (38S LiPo)
  • ESC Power Pads: 1x
• BEC 5V Output

  • Designed for FC, Receiver, OSD, Camera, 2812 LED Strip, Buzzer, GPS, Air Speed Sensor, etc.
  • Continuous current: 2 Amps, 3A peak
  • Output: 5.15 ± 0.1V DC
• BEC 9V/12V Output

  • Designed for Video Transmitter, Camera, Gimbal, etc.
  • Continuous current: 2 Amps, 3A peak
  • 12V option with jumper pad
• BEC Vx Output

  • Voltage adjustable, 6V default, 8V option with jumper pad
  • Continuous current: 6 Amps, 8A peak
  • Designed for servos
• BEC 3.3V Output

  • Continuous current: 200 mA
  • Linear regulator
• Mechanical:

  • Weight: 28 g (with USB extender)
  • Mounting: 25 x 25 mm, M2 hole
  • Dimensions: 45 x 30 x 13.5 mm

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

FIRMWARE SUPPORT

• Ardupilot Target
• INAV Target

•   (Insert links such as manuals, firmware, etc)

• 1x Holybro Kakute H743-Fixed Wing Flight Controller
