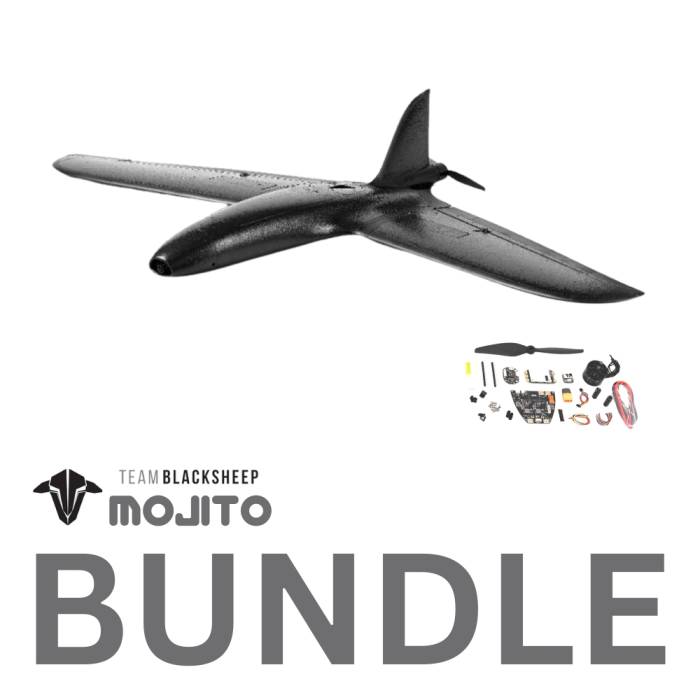

TBS Mojito 1270mm FPV Airplane PNP Bundle

The TBS Mojito is an advanced, forward-swept FPV flying wing platform that delivers unmatched efficiency and flight endurance. By relentlessly minimizing drag, the wing reaches speeds of over 200 km/h (125 mph) while cruising at 90–120 km/h (60–75 mph) with minimal power consumption. This efficiency allows for longer flight times, greater distances, and dart-like tracking through the skies at a face-melting pace. It easily outperforms anything else in its price range and conveniently dismantles into three pieces using push-to-release buttons at the end of each flight session. The wing is designed for both analog and digital video links.

Note:

• 1. Transmitter, Receiver, Battery, Charger, FPV Equipment, and Glue are not included.
• 2. This purchase requires assembly.

VIDEO: TBS MOJITO - FPV WING

• High-Speed & Ultra-Efficient
• Fully Internal Linkages
• Durable Construction
• Modular Wing Design
• Dual Equipment Bays
• Optional Airbrakes
• Pre-Cut Slots

AIRFOIL AND DRAG

The airfoil is derived from dynamic soaring gliders. All control surfaces and electronic provisions are internally built to minimize drag. The leading and trailing edges are plastic injection-molded for more precise airflow channeling. Additionally, the plane is made from high-density foam, allowing for the thinnest possible airfoil to cut through the sky effortlessly. For pinpoint landing accuracy, optional airbrake servos can be installed. Combined, these features make the plane durable, efficient, easy to build, and suitable for various applications.

BUILD AND APPEARANCE

We've spared no expense in minimizing building tolerances, using only the highest quality materials and manufacturing techniques. The Kit version comes 90% assembled out of the box. The plastic leading-edge covers for the wings and vertical stabilizer are not glued, allowing you to mount LED strips. That is the only assembly step required to complete the wing itself. Electronics installation is a breeze and can be completed in an afternoon. We've put together a set with recommended electronics that you may choose to use—or you can roll your own! For enthusiasts, the DIY version delivers the wing in its raw form. The fuselage and wings are provided as two halves, with all plastic parts included separately. This gives seasoned builders the ability to internally mount advanced sensors and fully customize the wing from the ground up.

KIT

• Recommended Battery: 6S–8S (Max dimensions: 70 × 50 × 230 mm) 5000mAh 8S1P
• Recommended FPV: DJI O3, DJI O4, Walksnail, or any analog video system
• Recommended R/C: TBS Crossfire Nano RX Pro or TBS Crossfire Nano RX
• Weight: 65 oz / 1800 g AUW (or more)
• Endurance: 60 mi / 100 km
• Wingspan: 50 in / 130 cm
• Flight Time: Up to 60 min
• Version: KIT

ELECTRONICS

• Compatibility: TBS Mojito 1270mm FPV Airplane
• Make: Mojito Electronics Package
• Manufacturer: Team Black Sheep

• 3D Print TPU Nosecone
• Manual

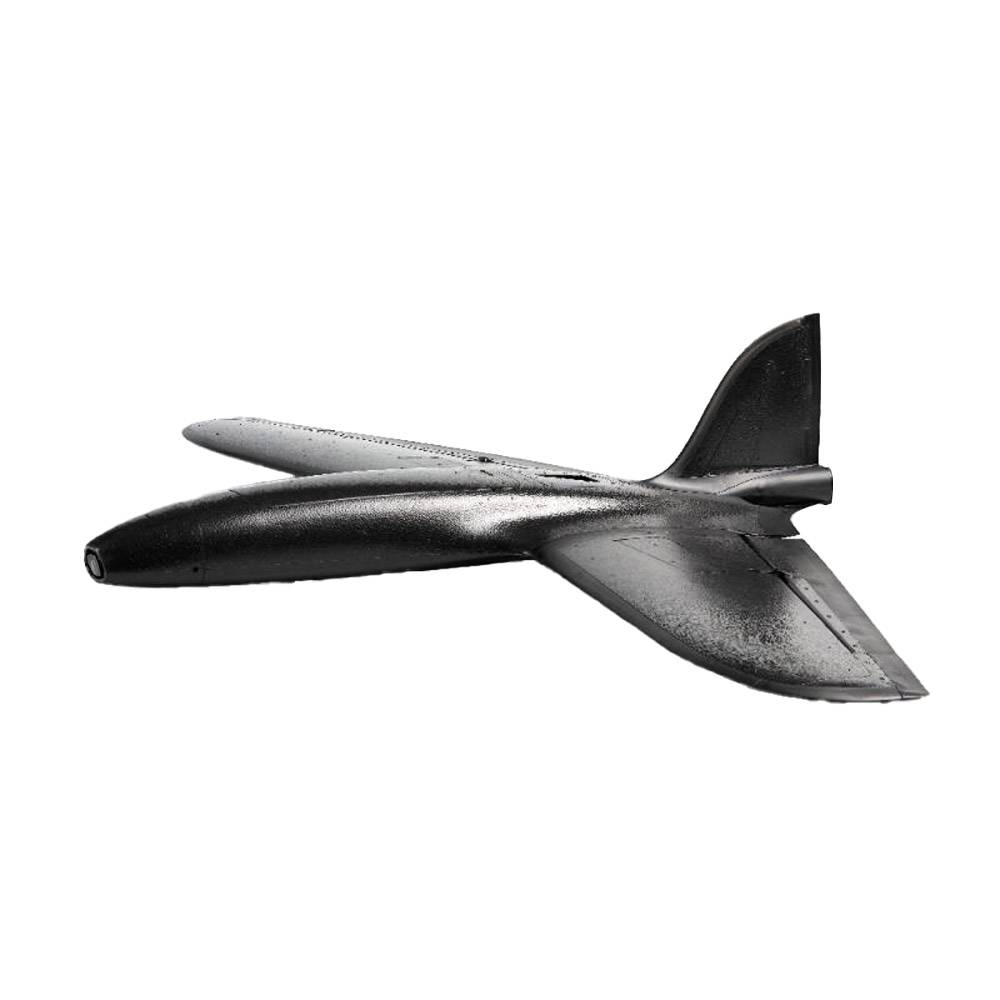

TBS MOJITO 1270MM FPV AIRPLANE KIT

• 1X TBS Mojito 1270mm FPV Airplane
• 1x Carbon fiber reinforcement strip
• 1x TBS Mojito sticker sheet
• 2x Pre-Installed Servos

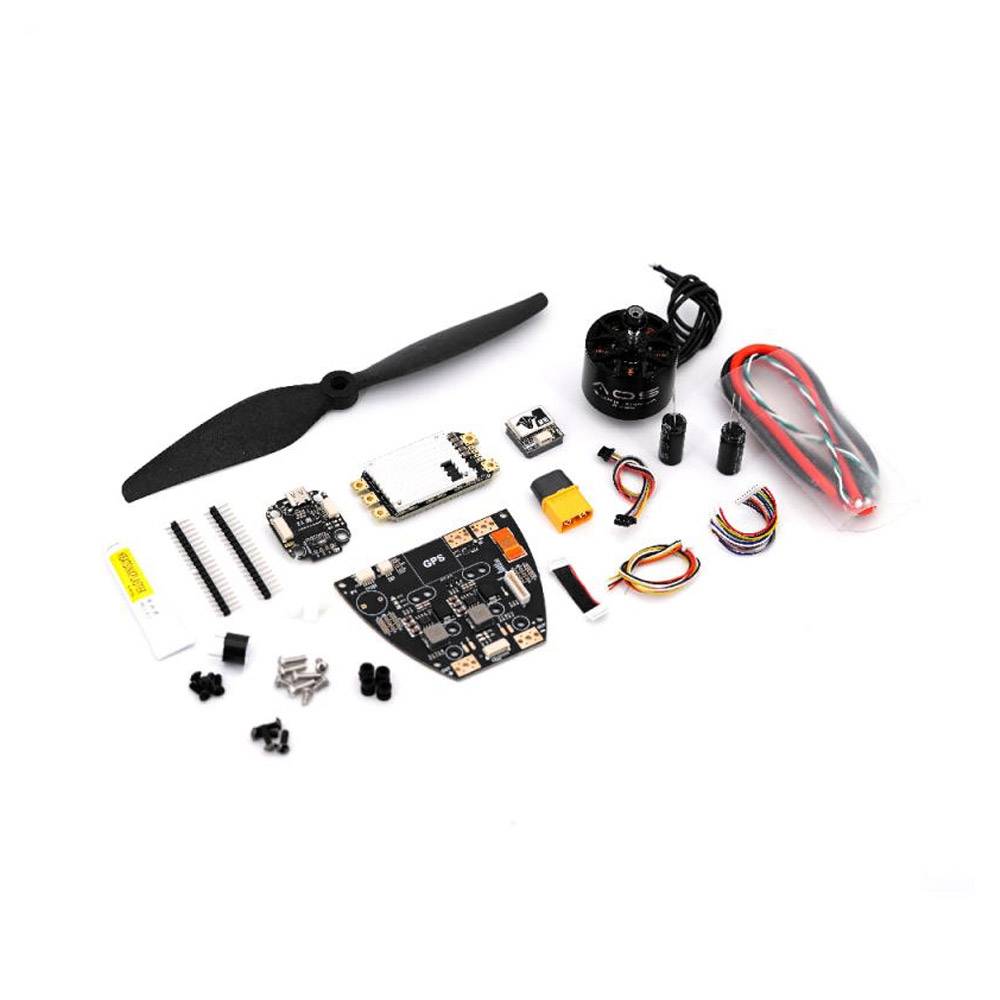

TBS MOJITO ELECTRONICS PACKAGE

• 1x HQ 8X4.5 Black Glass Fiber Reinforced Nylon
• 1x 12 AWG Power Cable and XT60 connector
• 1x AOS Supernova 3220 1000kV motor
• 1x TBS Lucid 12S ESC w/ heat sink
• 1x DJI O3/O4 extended cable
• 1x TBS Lucid Freestyle FC
• 2x 330uF 12S Capacitor
• 1x TBS Lucid Wing PDB
• 1x TBS M10 GPS

VIDEO: NEW! TBS MOJITO: A WING FOR THE EXPERIENCED PILOT WHO LIKES SPEED!
