TBS Chupito 800mm FPV Airplane - PNP - Crash-A-Lot

Who doesn't hate waiting for spares?! The TBS Chupito 800mm FPV Airplane - PNP - Crash-A-Lot comes with one set of spare foam parts. That's two full Chupito foam parts, one set of hardware, and one set of electronics. Perfect for people who want to mercilessly punish their Chupito without fear or downtime.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: TBS Chupito - FPV Wing

• Crash-A-Lot package with extra parts for worry-free flying
• Easy to fly forward-swept FPV wing with huge performance envelope
• Black EPP material with glass fiber camera and motor mounts
• Pre-cut camera, servo, battery, R/C receiver and receiver antenna slots
• Push-to-open equipment bay for R/C and FPV electronics
• Travel-friendly disassembly or fully glued basher configuration are possible
• Oversized pushrods and wing spars for outstanding durability

The Chupito was engineered to provide the maximum amount of accessibility and fun while keeping the performance and flight envelope beyond any other wing in its size and weight class. It is the perfect bring-along wing for small (or large) trips, or just as a casual long-range flyer. With the small size and precise response to your inputs you can shoot tight gaps, the unlimited vertical on 6S allows for maneuvers limited only by your imagination, and the battery compartment gives you enough space to install a power system that covers 5km vertical, or 30km horizontal distance - with margin to spare.

If you are starved for speed, we recommend laminating the wings, and speeds of 230km/h will be achievable using the right propellers (bi-blade high pitch). In the air, it's visually hard to differentiate from a Mojito, but when you place them side-by-side, the reduced complexity and size become apparent. All in all, this wing subscribes to the 80/20 rule, giving you the most bang-for-buck and an insanely fun all-around wing.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Wingspan: 31.5in / 80cm
• Weight: 23oz / 650g or more
• Approx. Flight time: 20min
• Range: 18mi / 30km
• Recommended Battery: (4S-6S) 800 - 1800mAh
• Max Battery dimensions 50 x 50 x 150 mm
• Recommended FPV and RX equipment:

  • FPV: DJI O3/O4, Walksnail or any analog video system
  • RX: TBS Crossfire Nano RX Pro or TBS Crossfire Nano RX

• TBS Chupito 2207 2000kV motor
  • Connector: MT30, 190mm
  • Configuration: 12N14P
  • Stator diameter: 22mm
  • Stator length: 7mm
  • Shaft diameter: 4mm (hollow)
  • Weight: 29.9g
  • Idle current: 1.2A @ 10V
  • Max cells: 6S
  • Max continuous (with cooling): 1.1kW
  • Internal resistance: 69 Ohm
  • Max efficiency: 6-9A > 84%
• HQ R37 Gray Propeller (R or L, adjust motor direction using am32.ca)
• TBS Lucid Wing AIO 2-6S
• TBS M10 GPS
• TBS Chupito Servo
  • Operating voltage: 4.8V - 6V
  • Standby current: <15mA
  • Stall current: 4.8V <1A, 6V <1.1A
  • Max torque: 4.8V 1.2kgf/cm, 6V 1.3kgf/cm
  • No load speed: 4.8V 0.16s/60deg, 6V 0.15/60deg
  • Operating temperature range: -10C - 50C
  • Weight: 13.5g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

• Manual
• iNav CLI suggestions

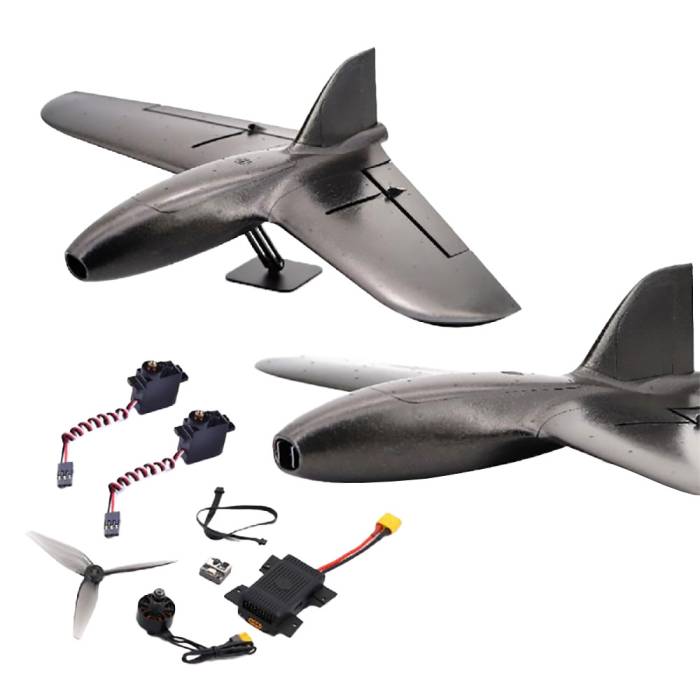

• 1x TBS Chupito flying wing
• 1x TBS Chupito sticker sheet
• 1x Carbon fiber spars set
• 1x Glass fiber motor mount
• 1x  Camera mount
• 1x Metal hardware set
• 1x Extra Foam Body Parts
• 2x Extra Foam Wings
• 1x  TBS Chupito Electronics Package
  • 2x Servos
  • 1x 2207 2000kV Motor
  • 1x R37 Gray Propeller
  • 1x TBS Lucid Wing AIO 2-6S
  • 1x TBS M10 GPS
  • 1x Serial/Power Cable for Digital VTX (6P, 350mm) DJIO3/O4
