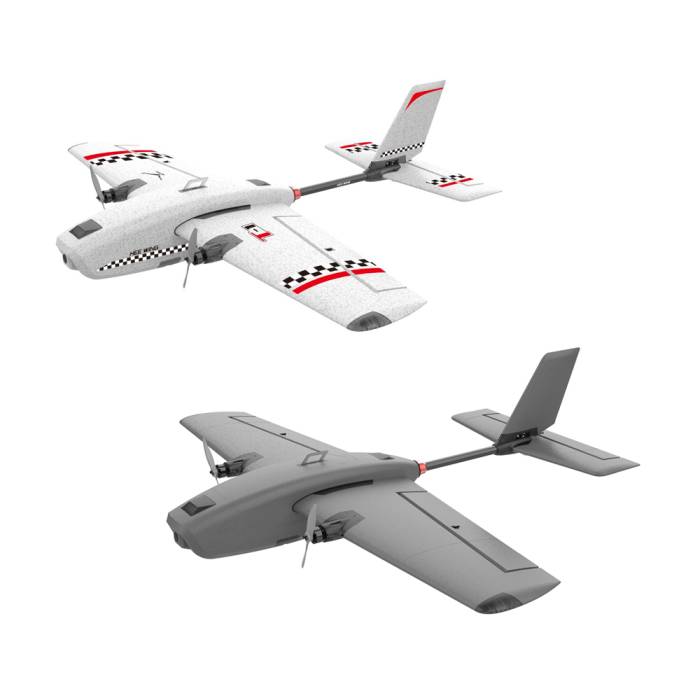

HEEWING T-1 Ranger Twin Motor Fixed-Wing 730mm RC Hobby Airplane

The HEE Wing Ranger T-1 Airplane makes FPV flying truly breathtaking! Designed for FPV flying, featuring dual motors and a 730mm Wingspan. Frame Kit or PNP version available in Gray or White.

Note: The Gray option is a denser version weighing 50g more than the White.

PNP kit w/ electronics does NOT include a flight controller

VIDEO: Looking at the T1 Ranger | Hee Wing T1 Ranger EP:01

Features

• Choose Frame Kit (Without Electronics) or PNP (With Electronics)
• Two-section hatch with ample room hatch for electronics
• High-Quality EPP / Carbon FIber / Aluminum Materials
• Supports External FPV Camera Mounting
• Gray or White Color Options
• 730mm Fixed Wing Span
• Quick Release Structure
• Dual Motors

Specifications

Color Options: Gray or White

T-1 RANGER FRAME KIT (Without Electronics)

• Size: 730mm (Wingspan) x 140mm (Height) x -645mm (Length)
• Weight Options: Gray (205g) or White (155g)
• Recommended Voltage: 2S LiPo
• Electronics: No
• Material: EPP
• LED: Yes

T-1 RANGER PNP KIT (With Electronics)

• Size: Length-565mm Height-130mm Wingspan-400mm
• Tension: >600g (Testing in 3S Brushless)
• ESC: FX-20A Brushless (No UBEC)
• Motors: Brushless FX 1404 3700KV
• Recommended Voltage: 2S LiPo
• Fuselage Size: 245x51x48mm
• Take off Weight: About 135g
• Max Speed: > 120km/h
• Max Cruise: > 65 Mins
• Min Speed: < 20km/h
• Max Range: > 25km
• Servo: FX-5g Digital
• Propeller: 3830
• UBEC: 5V/2A
• Material: EPP
• Weight: 880g
• RGB: Yes
• LED: No
• FC: Yes

T-1 RANGER PNP PRO KIT (With Electronics)

• Brand: Hee Wing RC
• Model: T1 Ranger PNP PRO
• Material: EPP
• Wingspan: 730mm
• Length: 645mm
• Height: 140mm
• Weight :
• Takeoff Weight: 350g to 500 g
• Fuselage Size : 245m(L) x 51mm(W) x 48mm(H)
• Speed: 25km/h
• Package Dimension : 400mm x 230mm x 155mmm
• Battery (excl): 2~3S Li-po
• Flight time: 10-15 mins
• Motor: FX1406-3150KV BL
• ESC: FX-20A w/ UBEC
• Servo: 7g Digital Metal Gear Servo
• LED light: L:Red/R: Green
• UBEC: 5V 3A
• Propellers: 3830 propellers
• Wiring Plug: Quick Release for the Main Wings

Recommended (Not Included)

• Battery: 2-3S 1300-5000mAh

Manual

• HEE Wing T-1 Ranger

Includes

• 1x HEE Wing T-1 Ranger Twin Motor Fixed-Wing 730mm RC Airplane (Choose Frame Kit, PNP PRO, or PNP Version in Gray or White)
