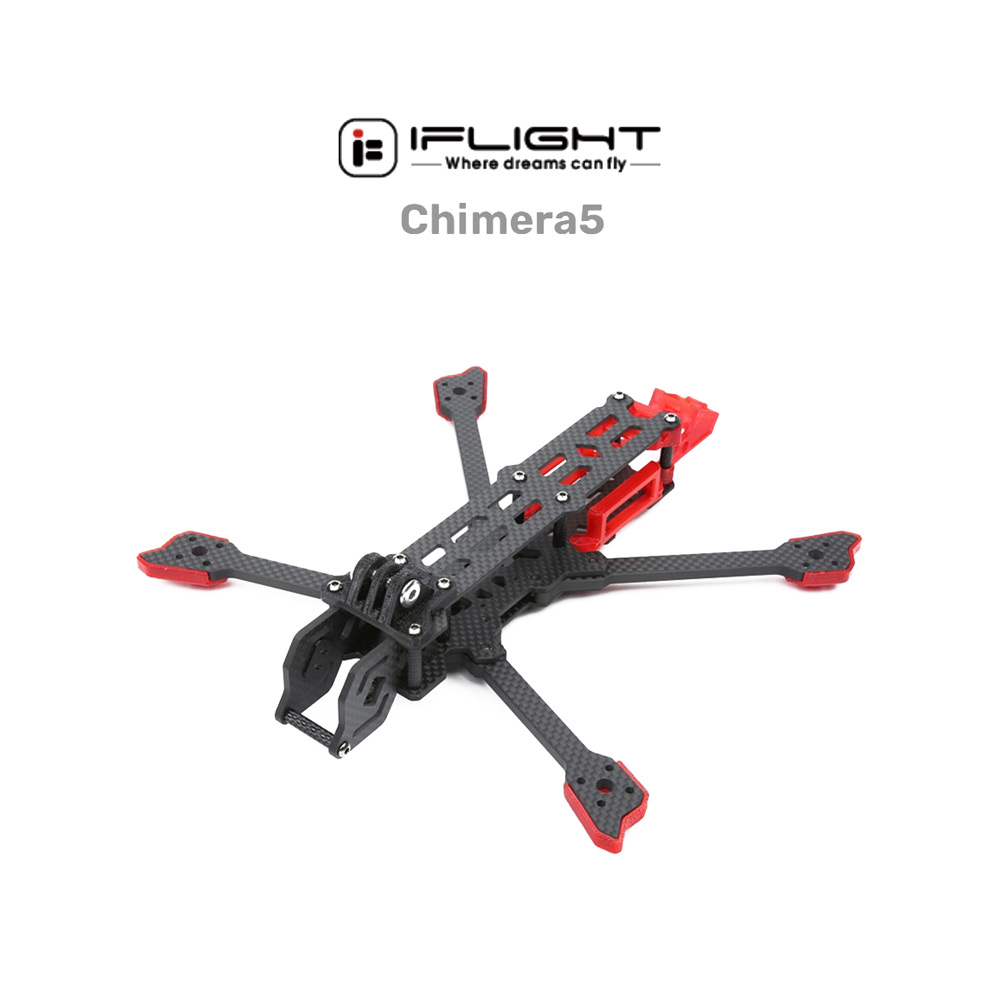

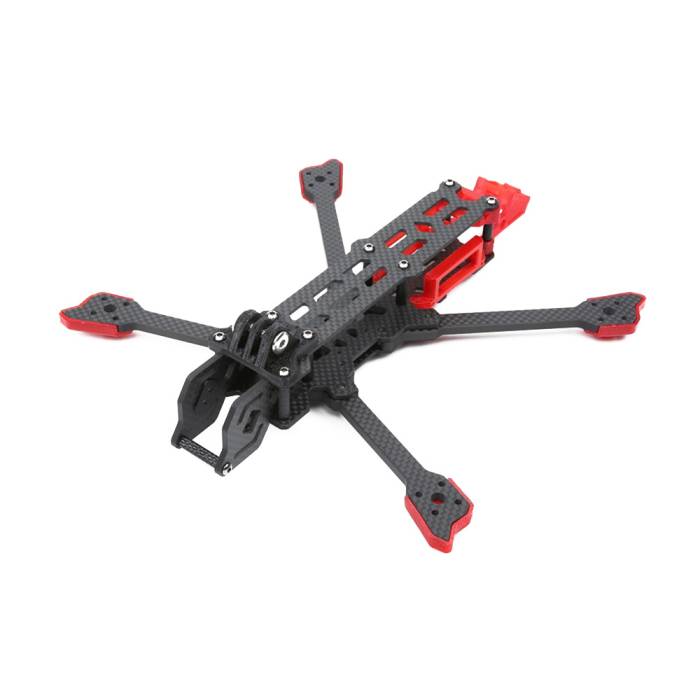

The iFlight Chimera5 Frame is a 5" DeadCat style freestyle airframe with 3K Carbon Fiber. The deadcat configuration provides a No-Prop view. This frame is ideal for DJI units, with and stack configuration that is centered and fits both 30.5x30.5 and 20x20 configurations.

Features

• The 5-inch version of Chimera 7 is more lightweight
• 360° TPU protection and Antenna mounts
• Compatible with Vista Air Unit

• Full 3K Carbon Fiber airframe

Specifications

• Mounting Patterns: 25.5x25.5mm/20x20mm
• Main body dimension: 135x173mm
• FPV Cam: 19mm Micro / 20mm
• Middle Plate thickness: 2.5mm
• Bottom to top distance: 28mm
• Bottom plate thickness: 2mm
• Top plate thickness: 2mm
• Arm thickness: 4mm
• Wheelbase: 219mm
• TPU Camera plate
• Motor mounting pattern: 12x12

Recommended (Not Included)

• Camera/VTX: Caddx Air Unit Micro Version for DJI Digital HD FPV System

• Motors: XING 2005 2550KV
• Propellers: Nazgul 5030
• Board: Beast F7 AIO

Includes

• 1x Horizontal 900 Antenna+ GPS TPU
• 1x FPV Air Unit Coaxial CableTPU
• 1x Antenna (Analog/RX) TPU
• 1x Vertical 900 Antenna TPU
• 1x GoPro Mount Seat TPU
• 4x Motor Wire Protector
• 1x GPS Carbon Mount
• 1x DJI Air Unit Bracket
• 1x Antenna (HD) TPU
• 1x GPS Mount TPU
• 1x Arm Guard TPU
• 1x Lens Protector
• 2x Antenna Tube
• 1x Counter Plate
• 1x Sticker Sheet
• 1x Hardware Kit
• 2x Battery Strap
• 2x Antenna Cap
• 1x Bottom Plate
• 1x Spacer TPU
• 1x Cam Mount
• 1x Battery Pad
• 2x Front Arm
• 2x SMA Grip
• 2x Rear Arm
• 1x Top Plate
