Caddx Air Unit Micro Version for DJI Digital HD FPV System

More Views

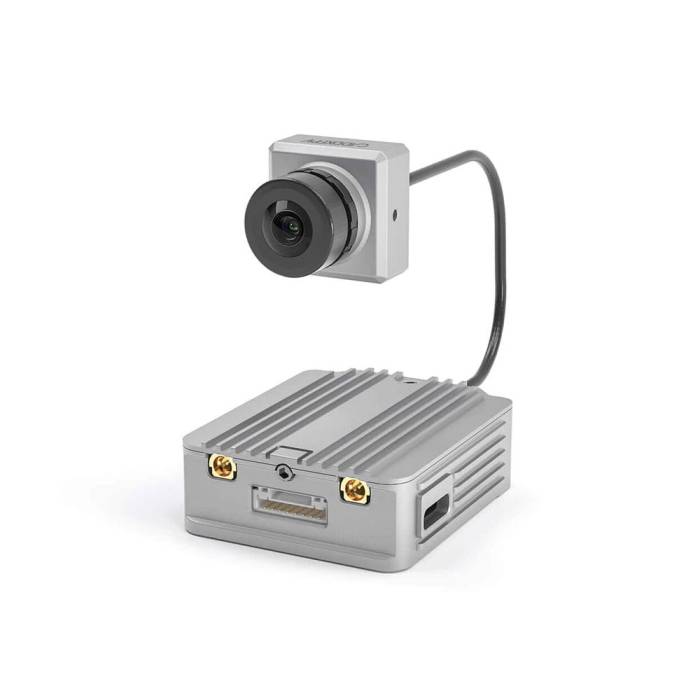

Caddx Air Unit Micro Version for DJI Digital HD FPV System

The CaddxFPV Air Unit Micro Version is a 19x19 micro-sized camera with low-latency digital video transmission. The Air Unit Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibility when flying through challenging areas.


Also see the Caddx Polar Micro Digital FPV Air Unit Camera Kit here.


In Stock
$199.99
OR
Description

The CaddxFPV Air Unit Micro Version is a 19x19 micro-sized camera with low-latency digital video transmission. The Air Unit Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibility when flying through challenging areas. Modern innovations, like a strong transmission system embedded remote controller receiver, and multi-antenna technology, is why the Air Unit can perform remarkably.

VIDEO: Caddx Air Unit // DJI Camera Unit Update

Features

  • 4-in1 Closed Loop control for the DJI FPV RC
  • Embedded remote controller receiver
  • 8 Channels for up to 8 Drones
  • Multi-antenna technology
  • 1080p Aerial Footage
  • Micro-Sized Camera (19x19mm)

Specifications

  • Weight:
    • Air Unit: 41.6g
    • Antenna: 3.7g(MMCX Straight) 3.9g (MMCX Elbow) 6g (reverse polarity female SMA)
  • Operating Temperature: 32 to 104 F (0 to 40 C)Input Power: 7.4-17.6V
  • Transmitter Power: FCC/SRRC: <30dBm CE: <14dBm
  • I/O Interface: USB-C, MMCX, 3-in1 Port, MicroSD
  • Output Power: 25mW3200mW/500mW/700mW
  • Video Transmission: 28ms Low Latency
  • Dimensions:
    • Air Unit: 44x37.8x14.4mm
    • Camera:20.7x19x19mm
  • Flight Control System: BetaFlight
  • Max Transmission Range: 4km
  • Coaxial Cable Length: 100mm
  • FOV: 150(D); 122(H); 93(V)
  • Goggle Compatibility: DJI
  • Closed Loop 4-in-1: Yes
  • Frequency Channels: 8
  • Shutter: Rolling Shutter
  • Sensor: 1/3.2" CMOS
  • Effective Pixels: 4 M
  • Image: 720p/120fps
  • Video Format: MP4
  • Video: 1080p/60fps
  • Lens: 2.1mm, F/21
  • ISO: 100-256000

Includes

  • 1x Caddx Air Unit Micro Version
  • 1x 3-in1 Cable/Coaxial/Antenna
  • 1x M2 Screws
Additional Information
SKU 16216
Manufacturer Caddx
UPC (GTIN) 736952009289
Static Block fpv_rules
Frequencies 5.8GHz
Reviews

FPV Regulatory Notice

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
