- Each Lumenier QAV-CINE RTF is hand-built, tuned, and test-flown in the USA!

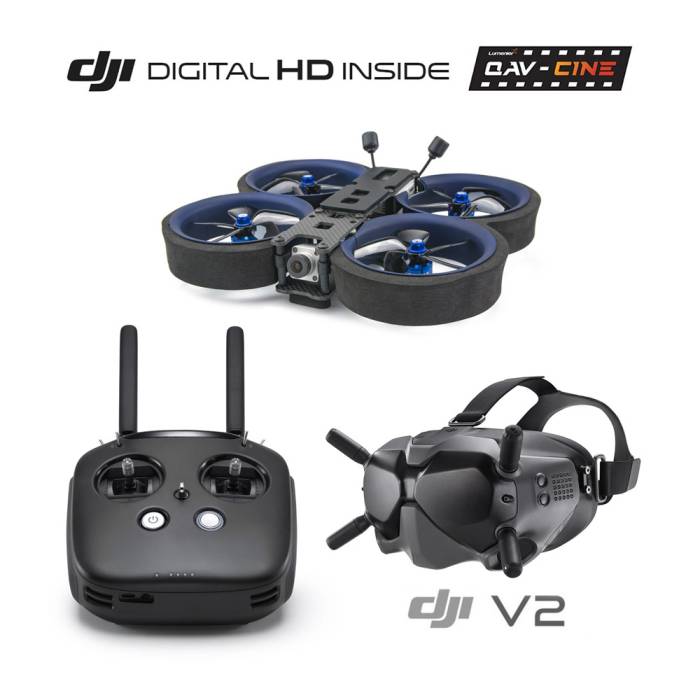

Lumenier QAV-CINE 3" Quadcopter RTF
- Equipped with the advanced DJI Digital HD FPV System or Caddx Vista System
- Equipped with Lumenier 1507.2 2400KV(6S) or 3500KV(4S) Turbine Motor
- RTF is fully built and test-flown by our technicians at our Florida facility.
- Ultra-smooth resin printed propeller ducts for improved performance
- Advanced and future proof LUX MINI F7 Flight Controller
- Pre-installed foam bumpers for incredible durability
- Pre-tuned with butter-smooth freestyle settings
- Lumenier Micro Razor 4-in-1 ESC
- Indestructible Kevlar battery strap
- Full 3K Carbon Fiber airframe
- Silicone non-slip battery pad
This is the Lumenier QAV-CINE 3" Quadcopter RTF. Fully built, tuned, and ready to fly out of the box. Simply add your own radio, battery, and goggles, and go fly! This QAV-CINE 3" Quadcopter RTF features premium components like the DJI Digital HD FPV System, Caddx Vista System, Lumenier 1507.2 2400KV/3500KV Turbine Motor, Lumenier LUX MINI F7 Flight Controller, Lumenier Micro Razor 20x20 4-in-1 ESC, and the DJI FPV Air Unit Antenna (MMCX 90°).

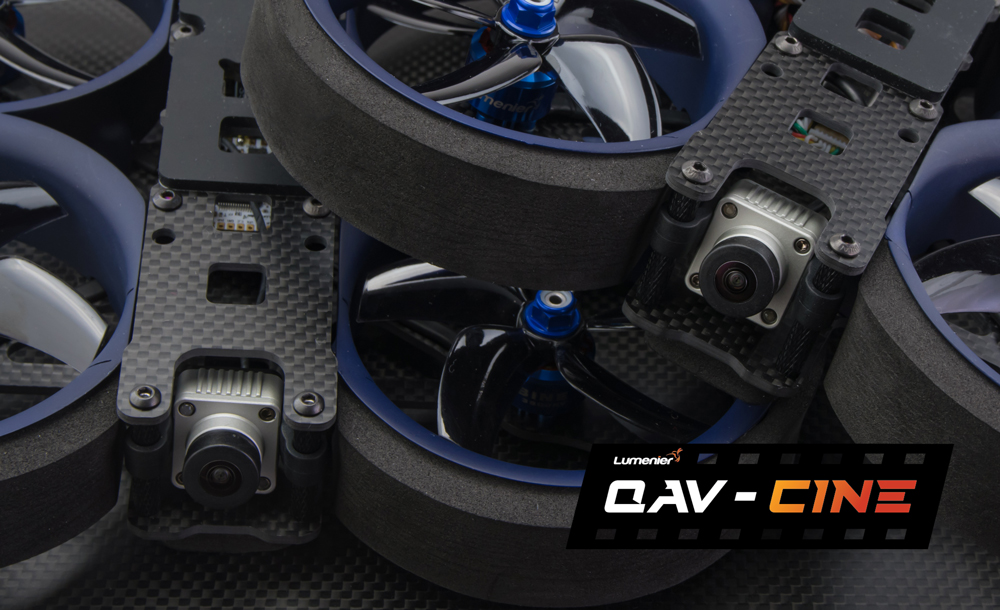

About the Airframe
The Lumenier QAV-CINE Quadcopter is a high-quality ducted cinematic airframe designed for 3" propellers. With integrated prop ducts and foam bumpers, you will have the confidence to fly in close proximity to objects that you normally would not.
The QAV-CINE is the ultimate 3" ducted FPV quadcopter for many reasons such as flight performance, durability, versatility, and great looks to name a few! No matter your desired setup, the QAV-CINE airframe can support them all, like analog, DJI digital HD, Vista HD, FPV, 20x20, or 30.5x30.5 stacks.

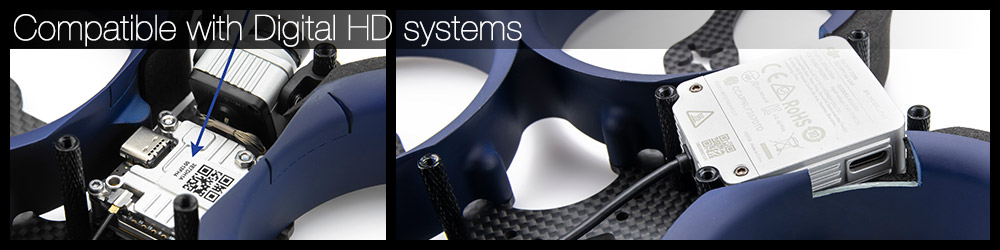

Digital HD Ready
The Lumenier QAV-CINE is a perfect match for the new HD FPV systems as well, such as the DJI Digital HD System or the Caddx Vista Digital HD system. There is plenty of room to mount each digital system. With no props in view with the QAV-CINE, you can make a killer digital HD flying rig!

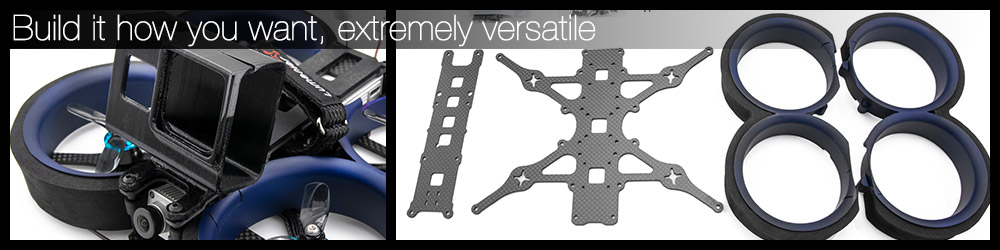

Versatility: Build it how you want!
The QAV-CINE supports just about any type of stack, digital HD, analog, or system you can think of! This means you have more flexibility in the parts you choose to use as the QAV-CINE doesn't lock you into just 1 type of system. You can build with a 20x20 stack or a larger 30.5x30.5 stack. It will support digital HD systems or more traditional analog FPV systems. Need a super robust, prop guarded system?... use the integrated ducts. Want a high-performance rocket without the need for prop guards?... simply remove the ducts and save over 100g of weight! The airframe is still very rigid even without the ducts.

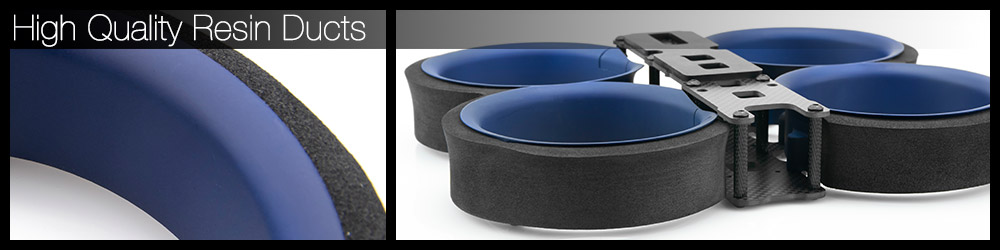

High-Quality Ducts = Better Performance
Many similar airframes you'll find on the market are 3D printed on traditional SLA printers which can leave ugly and rough bumps between each layer of the print. Not only does it not look as nice, but this rough finish also creates unwanted turbulence from the air your props are pushing. Dirty air means a loss of efficiency.
This is where the QAV-CINE is different than most by using a high-quality resin material to make the ducts. The result is an ultra-smooth, molded-like finish. It looks great and works even better! Oh, and yes they are very durable! With the added foam bumper you'll have no fear of bumping off walls and objects without skipping a beat.
This RTF has been fully built and test-flown for you, so you can simply bind your radio and go! Our professional build team takes the guesswork out of the building and tuning for you by pre-programming the flight controller settings and using only high-quality Lumenier motors, ESCs, and FPV gear.
- Propellers: Gemfan Ducted Durable 5-Blade 76mm CineWhoop Propeller
- QAV-CINE Airframe Weight: Carbon Fiber: 55g / Ducts (2 sets): 105g
- ESC: Lumenier Micro Razor 4in1 20x20 F3 BLHeli_32 30A 2-6s ESC
- Motors: Lumenier 1507.2 Turbine Motor - 2400KV (6S) /3500KV (4S)
- VTX/Camera: DJI Digital HD FPV System or Caddx Vista System
- AUW Weight (excluding battery): 360g (DJI) or 350g (Vista)
- Antenna: DJI FPV Air Unit Antenna (MMCX 90° - Pair)
- Frame: Lumenier QAV-CINE Quadcopter Frame 3"
- FC: Lumenier LUX MINI F7 Flight Controller
Note: The DJI HD FPV Air Unit is currently only compatible with the DJI FPV Goggles. IT IS REQUIRED to use the DJI FPV Goggles with the DJI FPV Air Unit on this quad. The DJI Remote Controller is recommended for beginners since you won't need to set up another receiver; however, you can add a receiver yourself from FrSky, Spektrum, etc., and then bind to your own radio as usual.
The DJI Remote Controller is recommended for beginners since you won't need to set up another receiver, but it is also optional in this bundle because it is NOT required in order to use the FPV system. If you don't choose to use the DJI Remote Controller, you can add a receiver yourself from FrSky, Spektrum, etc., and then bind to your own radio as usual.
- 1x Lumenier QAV-CINE 3" Quadcopter RTF (Choose DJI or Vista - 4S or 6S options)
- 1x Lumenier Soft Zipper Case
