Lumenier Freybott FR1205 Motor - 5500KV / 7000KV

More Views

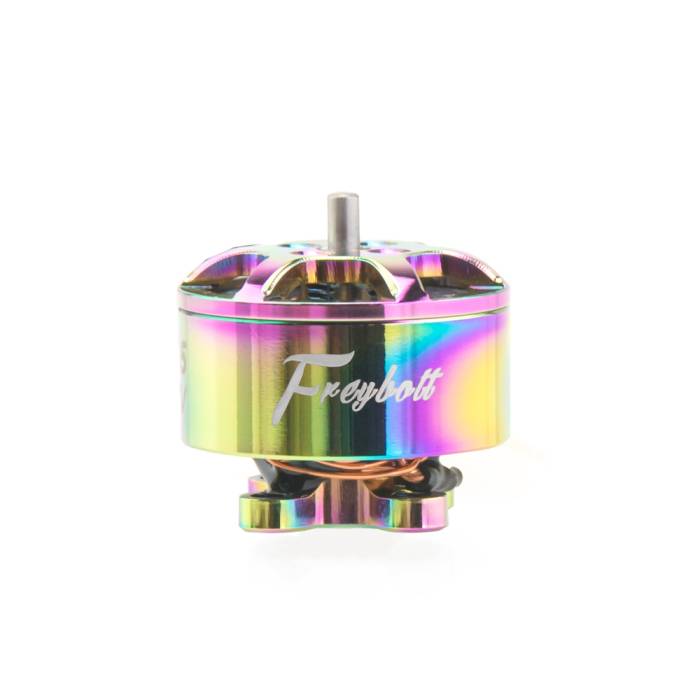

Lumenier Freybott FR1205 Motor - 5500KV / 7000KV

The Lumenier Freybott FR1205 Motor features a unique chrome multi-color finish with super smooth performance and surprisingly powerful punch for a micro sized motor. Great for cine-whoops like the Lumenier QAV-CINE Freybott Edition (2.5").

Choose option below...

Regular Price: $12.99

Special Price $11.99

* Required Fields

Regular Price: $12.99

Special Price $11.99

Description

The Lumenier Freybott FR1205 Motor features a unique chrome multi-color finish with super smooth performance and surprisingly powerful punch for a micro sized motor. This motor was designed specifically for the Lumenier QAV-CINE Freybott Edition micro sized (2.5" props) FPV quadcopter, which was designed to be small and agile with full propeller protection all while still carrying a "naked" GoPro camera.

Lumenier has teamed up with world-renowned FPV pilot Phil Freybott to bring you the ultimate micro cinematography motor. Phil is the founder of Cinequads, which is a FPV based cinematography company creating high quality cinematic content with the use of FPV drones. Phil has many years of experience shooting professionally with FPV drones on TV commercial sets, movies, and automotive brands like Porsche and Mercedes to name a few. Through his professional experience and optimized work flow, and combined with Lumenier's high quality design and manufacturing, they bring you the ultimate micro brushless drone motor for cine-style flying.

The Freybott FR1205 motor comes in at an impressive 6g of weight keeping it ultra-light and agile. It uses a popular "T-Style" m2 prop mount for ultra-low profile propellers, which also helps keep the total weight low. The motor also comes with a pre-installed plug-and-play connector making it a snap to connect to "toothpick" style AIO boards. Alternatively if you'd rather solder your motor wires directly to the ESC you can simply remove the plug and solder direct!

If you're building your own micro cine-drone then this Lumenier Freybott FR1205 motor is a must!

Phil FreybottBeing a full time Professional Commercial Drone pilot I was in need of a small and reliable working rig that's super light but still stiff and strong at the same time. It needed all the flight characteristics of a 5 inch quad, but that's really hard to achieve on a motor this small, so we went through a lot of testing and prototyping to find the right balance between weight and size. We use this motor on all of our QAV-Cine 2.5" builds, and it's absolute amazing to have something that small and powerful in your collection. This motor is a sub 250g beast and it is just too much fun and you will see that you put your 5 inch quad aside more then you think! Have fun and create amazing things.

-Phil Freybott

Specifications

  • Stator Size: 1205
  • KV: 5500KV/7000KV
  • Weight: 6g
  • Motor Wire: 28AWG, 80mm
  • Motor Connector: 3 position (optional to cut off connector for direct solder to ESC)
  • Magnet: Curved N52
  • Winding: Copper with high temperature coating
  • Bearing: 5x2x2.5mm Stainless Steel

Includes

  • 1x Lumenier Freybott FR1205 Motor
    • Your choice of 5500KV or 7000KV
  • 4x M2x5 Button head screws
Additional Information
SKU 15237
Manufacturer Lumenier
UPC (GTIN) No
Popo Compatible No
