KababFPV Toothpick Micro Frame Kit - 110X Motor Mount

More Views

KababFPV Toothpick Micro Frame Kit - 110X Motor Mount
Flown indoors or out, toothpick drones are loads of fun! Check out some flight videos and prepare to be impressed!
Out of Stock
$15.99
Description

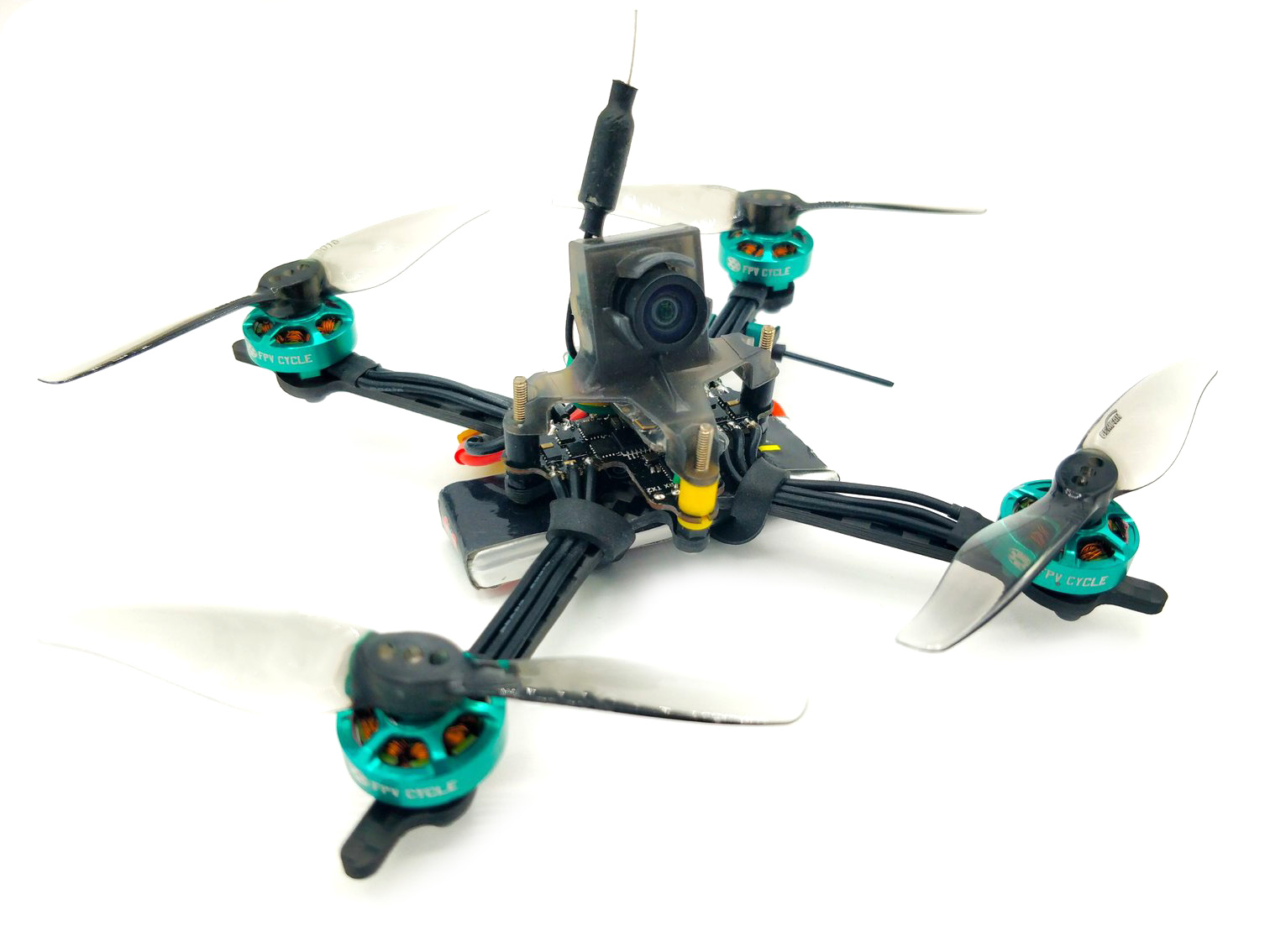

A Toothpick drone is pretty much what it sounds like. An ultra-skinny, lightweight micro drone. However, don't let the name fool you, these toothpicks use brushless motors with an XT-30 connector and their low AUW means better than average flight times and very responsive handling!

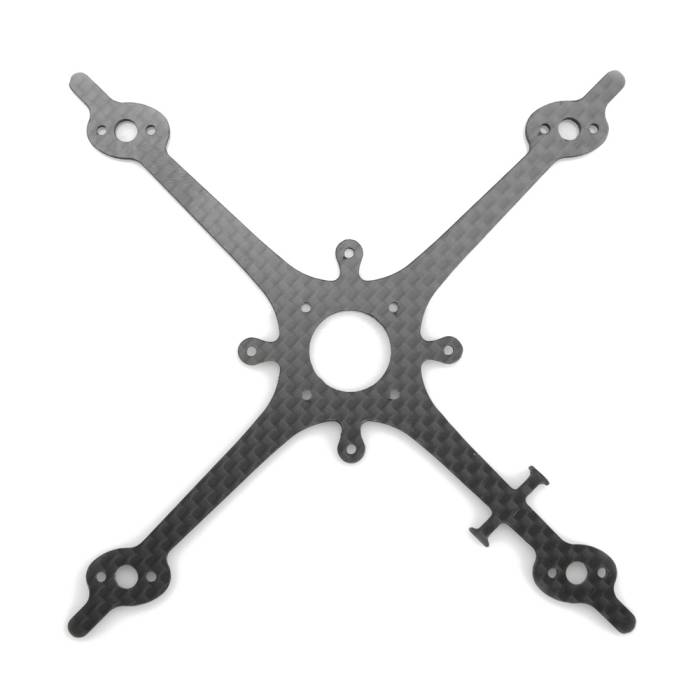

The frame has mounting patterns for typical Whoop AIO boards as well as a 16×16 M2 pattern. The Toothpick will fit specifically four hole motor mount patterns of M2 with 9mm diameter or 8mm diameter M1.4 pattern and the AMAX inno 3 hole M2 mount pattern.

Flown indoors or out, toothpick drones are loads of fun! Check out some flight videos and prepare to be impressed!

Specifications

  • Motor Mounting: 4 Hole M2 9mm -or- M1.4 8mm -or- AMAX 3 Hole M2
  • Recommended Propeller: 65mm
  • Recommended Battery: 400-600mAh 2S
  • FC mounting patterns:
    • 25.4 x 25.4mm – (Crazybee F4 and Crazybee F4 V2)
    • 16x16mm (iFlight micro F4 tower)
  • Frame weight: 5.5 Grams (without hardware)

Includes

  • 1x 2mm carbon fiber in ‘oil rubbed’ finish.
  • 4x Steel M2x15mm
  • 4x Steel M2x20mm
  • 4x Steel M2 locknut
  • 16x M1.4x4mm screws
  • 16x M2x4mm screws

Additional Information
SKU 10425
Manufacturer KababFPV
UPC (GTIN) 082652056383
