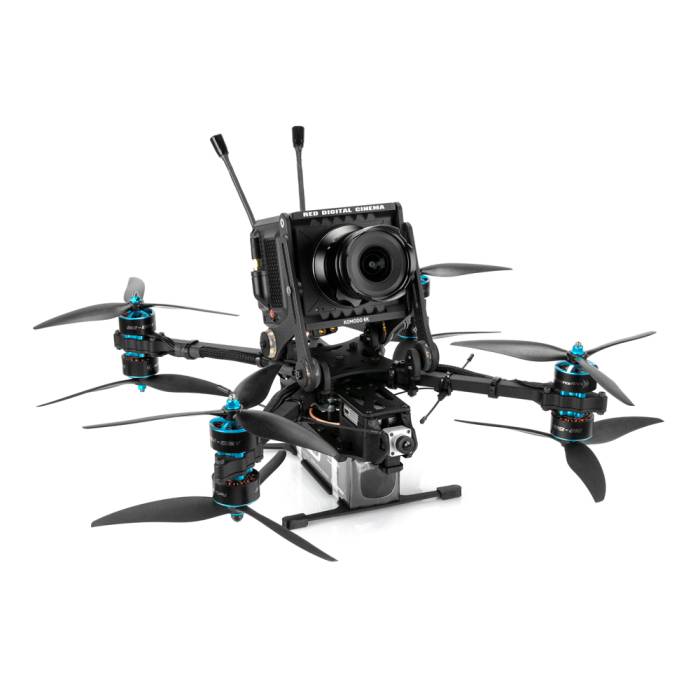

JohnnyFPV Banshee 8" Cinema Drone - RTF
JohnnyFPV Banshee 8" Cinema Drone - RTF
About this product
The JohnnyFPV Banshee 8" Ready to Fly Cinema Drone is a high performance FPV drone brought to life by world-renowned JohnnyFPV. Centered around the RED Komodo cinema camera, this drone takes image quality to the next level while keeping the performance and speed of a traditional FPV racing drone.
Johnny's passion for FPV flying is as strong as ever, but his flying style and requirements have continued to evolve over the years. Through this hard work, he made it into the “big screen” having worked with renowned brands and feature films. With this in mind, he wanted to work on a new concept for a frame that meets all of his FPV drone needs and delivers the best quality while flying with a Cinema Camera.
The JohnnyFPV Banshee 8" drone is engineered (design by Sam Sanford) to scale up the flight feel of a 5” drone to keep the versatility and creative potential of an acrobatic drone while offering a product that looks and performs professionally on set.
With the ability to carry cinema cameras at 92mph+, the JohnnyFPV Banshee 8" develops incredible speed with various payloads, and focuses on the maneuverability of Pro Cameras by choosing the right powertrain combination for the perfect balance of speed, agility and flight time.
Note: This RTF Drone does not include optional accessories like Gimbal, Cinema Camera, Batteries, FPV Goggles, Radio Controller, etc. These items will need to be purchased in addition to the RTF drone if needed.
PRE-TUNED AND PRE-SETUP
The JohnnyFPV Banshee RTF is assembled in the USA by professional drone builders at GetFPV. Each drone goes through a rigorous QC process and is individually tuned and test flown before shipment.
JohnnyFPV Banshee 8" Drone
- Optimized dual antenna placement provides improved video performance by placing the antennas up high from the Cinema Camera body to guarantee signal strength
- Additional XT-30 regulated aux power outputs. 2x 12V power output for the Cinema Camera, 9V regulator onboard to power the ditigal DJI air unit.
- A Cinema camera can be fixed to 2 isolated side plates with 4 Alpha Gel B-1 dampers that reduce vibrations coming from the drone while flying.
- A fast swap battery system designed to secure the battery in place underneath the aircraft and locks it in place in a snap.
- Robust 10mm thick carbon fiber arm design that allows an X8 configuration with top and bottom motor mounts.
- Custom-made housings that hold the Radio receiver, DJI Air Unit, and voltage regulators inside the aircraft.
- Up to 60 degrees of motion for the Cinema Camera mount by tilting the side plates that hold the camera.
- AUW Weight: 3.3lb (1.5Kg) (without battery or props) / 5.37lbs (2.4Kg) (with battery and props)
- Flight Time (with 5200mAh 6s Battery): 6 Mins Cruising
- Top Speed: 92mph
- Frame: JohnnyFPV Banshee Frame Kit
- Battery: Designed for 4500-5200mAh and larger 6s Lipo Batteries (not included)
- CCW Propellers: HQProp MacroQuad 8X4.5X3 Propeller (CCW) - Black Glass Fiber Reinforced Nylon
- CW Propellers: HQProp MacroQuad 8X4.5X3 Propeller (CW) - Black Glass Fiber Reinforced Nylon
- Motors: Performance FPV Special Edition 2812 1150kv
- Antennas: TBS Immortal T extended / TrueRC 200mm Matchstick
- Capacitors: 50V 2200uF Capacitor / 35V 220uF Capacitor
- BECs: Pololu 12V 2.4a BEC / Pololu 12V, 4.5A BEC / Pololu 9V 2.6a BEC
- Flight Controller: Matek F722-HD FC
- VTX: DJI Digital HD FPV Air Unit Kit
- Carbon Plate Thickness: 2.5mm
- Carbon Arm Thickness: 10mm
- Receiver: TBS Diversity Nano
- SMA MMCX extension: 20cm
- ESC: Hobbywing 60A 4 in 1
- Camera Mount: Komodo
- Alpha Gel Model: B-1
- AS150 Female: Red
- AS150 Male: Black
- PCB mount: XT30
- XT30: Female
Recommended (Not Included)
- Batteries: Lumenier 5200mAh 6S 120c CineLifter LiPo Battery or Lumenier 4500mAh 6S 120c CineLifter LiPo Battery
- NOTE: Battery Polarity of AS150 connector may not match your battery and the Banshee's AS150 connectors. Double check before plugging in.
- Radio Controller: DJI Remote Controller (Mode 2) or TBS Tango 2 PRO FPV RC Radio Controller
- Battery Charger: iSDT K2 Smart Dual Charger AC200W / DC500W x2
- FPV Goggles (required to use DJI Air Unit): DJI HD FPV Goggles 2
- Cinema Camera: RED KOMODO 6k Camera + Laowa Lens
Warning: AS150 Battery Polarity
The JohnnyFPV Banshee uses AS150 power connectors to power the drone via the Lipo battery. Not all batteries use the same polarity for the AS150 connectors. Please ensure your battery connector matches the Banshee's before plugging in. (Black = Ground, Red = Voltage In (6s)) Tattu AS150 batteries match the Banshee without modification needed.
- 1x JohnnyFPV Banshee 8" RTF Drone (Pre-Built, Tuned, and Tested)
- 2x Battery Landing Plates, 2x Battery Slide plates
- 1x XT30 to Komodo Power adapter plug
|Item Returns||This item can be returned|
