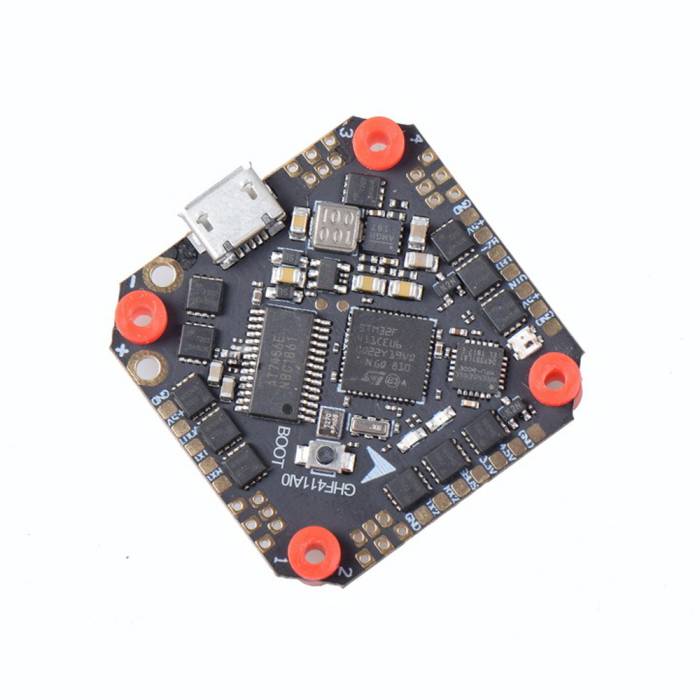

JHEMCU F4 BL_S 2-4S 30A AIO Toothpick Flight Controller
JHEMCU F4 BL_S 2-4S 30A AIO Toothpick Flight Controller
JHEMCU F4 BL_S 2-4S 30A AIO Toothpick Flight Controller
This FC will give you excellent performance in a small package, only 6.3g! It supports PWM, Oneshot42, Oneshot125, Multishot, Dshot150, and Dshot300, Dshot600.
About this product
The JHEMCU F4 30A AIO FC is a power 4-in-1 micro flight controller. This FC will give you excellent performance in a small package, only 6.3g! It supports PWM, Oneshot42, Oneshot125, Multishot, Dshot150, and Dshot300, Dshot600. It also includes built-in Betaflight OSD, Betaflight MATEKF411 firmware, and is suitable for your toothpick builds!
Specification
- Brand Name: JHEMCU
- Model: GHF411AIO
- Item Name: F4 OSD FC Built-in 30A BL_S 4in1 ESC
- Size: 32.5x32.5mm
- Mounting Hole: 25.5x25.5mm
- Weight: 6.3g
- CPU: STM32F411CEU6 (100MHZ)
- MPU: MPU6000 ( SPI)
- Firmware: Betaflight MATEKF411 ( MK41)
- Built-in Betaflight OSD ( AT7456E)
- Built-in Current Sensor
- Support WS2812 LED
- Input Voltage: 2-4S Lipo
- Con. Current: 30A
- Firmware: BLHELI_S
- Support PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600
Includes
- 1 x F4 FC AIO 30A ESC Board
- 2 x Power Cable
- 1 x XT60 Plug Connector
- 4 x 1.25mm Connector for Motor(Plug and Play)
- 4 x Anti-vibration Ball
More Information
| SKU | 13209 |
|---|---|
| UPC (GTIN) | 751313214416 |
| Manufacturer | JHEMCU |
| Mounting Pattern | N/A |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
