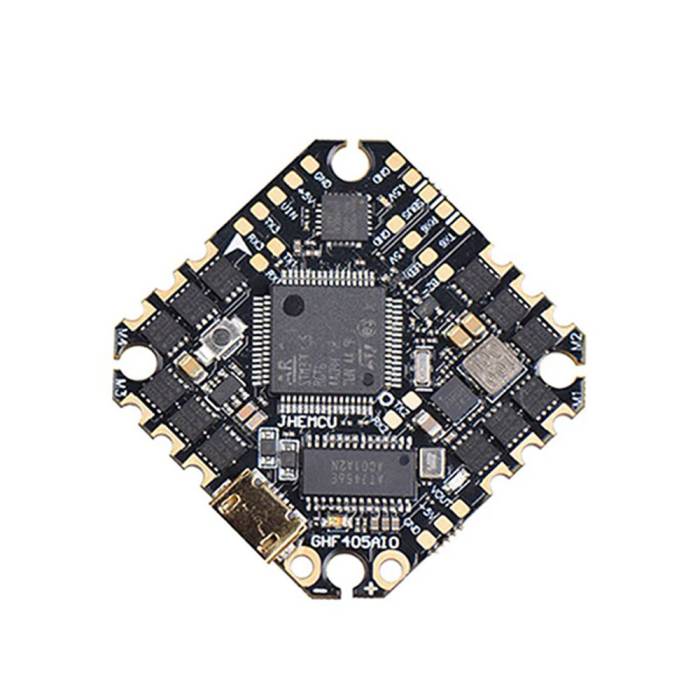

The JHEMCU GH405 35A FC is a new ultra-light 7.2g brushless AIO flight controller! This FC has a strong performance and can handle 35A of continuous current and up to 6S. Breakthrough the limits of your quad and explore the possibilities from 3"-5" configurations.

Features

• ESC output current 35A continuous current, 4 independent current outputs
• The USB port is installed on the side, you have more installation possibilities while still having access to the USB port
• Reserve common function interface pads, UART port has 4 channels (UART1, UART2, UART3, UART6).
• Half-hole motor pad, support large current output
• Integrated Betaflight F405 processor flight control, OSD BEC and 35A ESC support 3-6S battery

FC Specifications

• CPU: STM32F405
• Sensor: MPU6000 (SPI connection)
• Size: 33*33mm (25.5mm mounting hole)
• Firmware version: Betaflight F4
• OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
• Receiver: SBUS, IBUS, DSM2, DSMX, PPM, TBS, etc.
• Support WS2812 and other programmable LED
• Support buzzer
• Built-in current sensor
• Weight: 7.2g

ESC Specifications

• Support BLheli / BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 3S-6S Lipo
• Continuous current: 35A
• Firmware: BLHELI_S G_H_30_REV16_7.HEX

FC Firmware Download

Download FC FW Here

Includes

• 1 x GHF405AIO 35A Brushless Flight Controller *1
• 2 x Power cord  (16awg 1 black,1 red)
• 1 x Rubycone 1000uf 35V capacitor
• 4 x Shockproof rubber shock absorber
• 1 x XT60 connector
