iFlight SucceX X-Class X80A BL32 PRO 2-8S ESC - V1.1
iFlight SucceX X-Class X80A BL32 PRO 2-8S ESC - V1.1
About this product

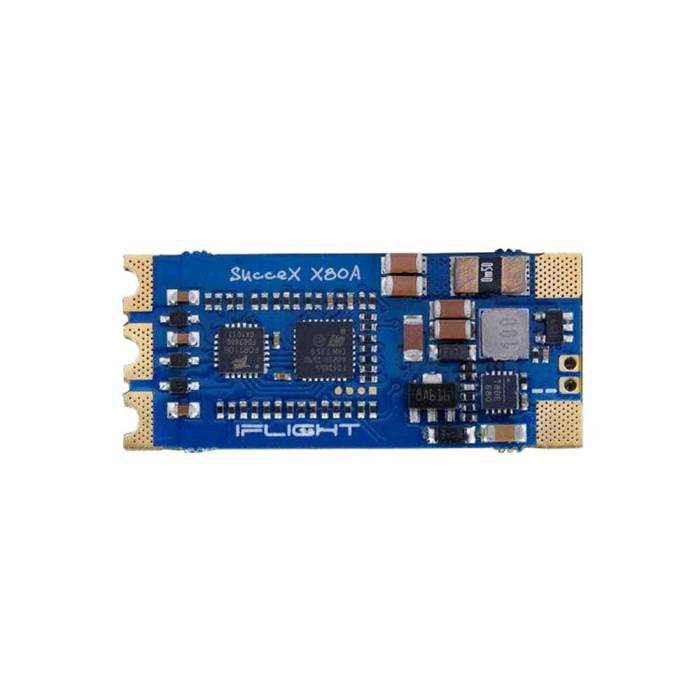

The iFlight SucceX X-Class X80A BL32 PRO 2-8S ESC - V1.1 is an updated version from the first version. Due to some global supply issues, the MUC was updated- before F051 MCU changed to G071 MCU. This single ESC was designed to give your motors smooth power with great stability and durability. Equipped with iFlight BL32 PRO firmware to bring you a faster-responding speed and smoother flying experience.
Please make sure the ESC has connected with a 35V 470uf electronic capacitor. Does not support 52xx motors
VIDEO: (Insert Video Title here in Bold)
Features
- 2-8S input (max 8S)
-
80A 8 layers 4OZ copper PCB, better operating load capacity;
-
11 pieces TDK MLCC total 420UF Low ESR capacitors, lower ripple and more stable;
-
Top grade NTMFS5C430NL MOSFET, stable and reliable;
-
1 * 3528 LED for power- on display;
Rational layout, large soldering pad, countersinks, and semicircle orifices enable each layer to be energized after power-on.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Â Dimension: 40*17mm
-
 Weight:8.1g without wire
-
Supports 2-8S lipo input
-
STM32G071 MCU, 48Mhz Runs BLHELI 32. X Firmware
-
Capacitance: total 240UF Low ESR
-
Telemetry output
-
BEC: No
-
Supports: DShot DShot150/300/600/1200/MultiShot/OneShot PWM Drive
-
Target: iFlight-BL32-PRO
-
Weight: 8.1g
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Includes
- 1 x SucceX X80A - V1.1 ESCÂ
- 1 x 35V 470uf capacitorÂ
- 1 x Power cables & ESC signal wiresÂ
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 18247 |
---|---|
UPC (GTIN) | 764613347432 |
Manufacturer | iFlight |
NDAA Compliant | No |
Mounting Pattern | Single Arm ESC |
Item Returns | This item can be returned |
