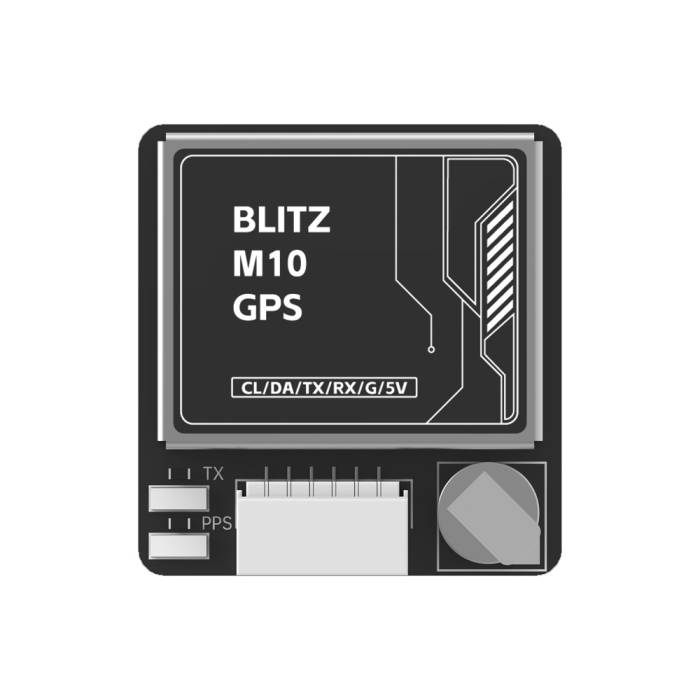

iFlight BLITZ M10 GPS

The iFlight Blitz M10 GPS is a cutting-edge GPS module that integrates the advanced UBLOX M10 chip. Designed for optimal performance and efficient functioning, it incorporates a range of features that improve its sensitivity, signal strength, and overall operational efficiency.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• UBLOX M10 Chip Integration: Utilizes this advanced chip for superior GPS performance and accuracy.
• Integrated Compass Module: Features a QMC5883L compass module for enhanced navigational accuracy
• Rapid Hot Start: The built-in farad capacitor ensures faster hot start times, reducing the wait for GPS lock.
• Low Noise Amplifier: The onboard LNA (Low Noise Amplifier) boosts signal strength while minimizing interference.
• 10 Hz Refresh Rate: Provides real-time location updates with high precision.
• Onboard Flash Memory: Allows for data storage directly on the device.
• Optimized Antenna Design: The high sensitivity 18x18mm GPS patch antenna ensures robust signal strength while being energy-efficient and lightweight.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Compass module: QMC5883L
• Baud Rate: 4800bps-115200bps (Default - 115200bps)
• Sensitivity: Tracking: -167dBm
• Cold start: 26
• Hot start: 1s
• Maximum height: 50000m
• Maximum speed: 500 m/s
• Speed accuracy: 0.05 m/s
• Maximum acceleration: ≦ 4G
• Refresh Rate: 10 Hz
• GPS patch antenna size: 18 x 18 x 4 mm
• Total dimensions: 20 x 21 x 8.5 mm
• Weight: 8.4 g
• Input Voltage: 3.3-5.5 V, current 40mA
• GPS pin definition: RX/TX UART
• Compass pin definition: SDA/SLA
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x iFlight BLITZ M10 GPS
• 1x Cable set
