HGLRC XJB F440 V2 Stack - F4 Flight Controller - 40A Blheli32 ESC

More Views

HGLRC XJB F440 V2 Stack - F4 Flight Controller - 40A Blheli32 ESC
F4 generation core for micro class FPV racers - 20mm F4 FC + 4-in-1 40A BLHeli32 ESC.
In Stock

Only 1 left

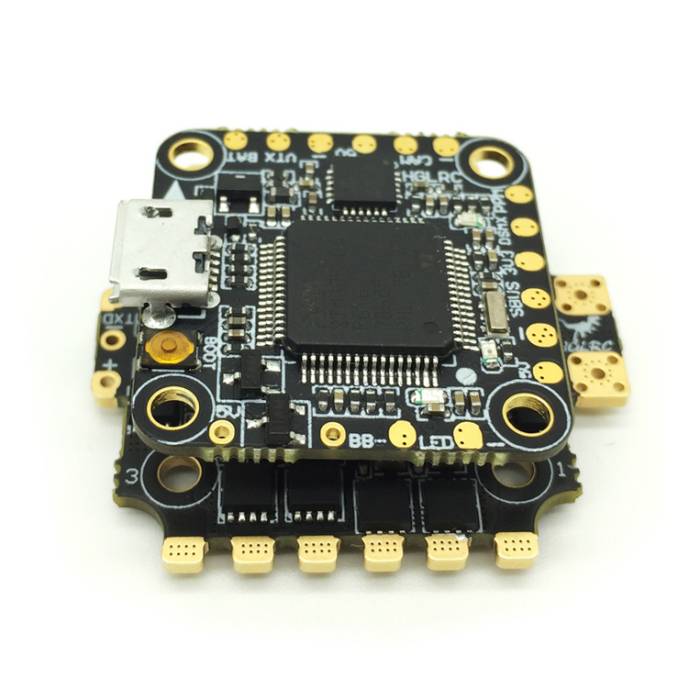

You are looking at the all-in-one stack by HGLRC. This stack comes with the F440 V2 OSD BEC Flight Controller and the 40A 4-in-1 BLHeli32 ESC. The mounting holes are 20mm apart, perfect for micro class racers.


Micro F4 V2 Flight Control Board ( D-Shot Version)

  • MPU: MPU6000-SPI
  • CPU: STM32F405RGT6, dual 8K.
  • Black Box: Flash 16M
  • Input Voltage: 2-5S Lipo
  • Built-in Betaflight OSD to adjust PID
  • BEC Output: 5V@3A
  • Size: 25x25mm board, 20mm mounting holes (M2)
  • Weight: 3.7g
  • Support Subs/PPM/DSMX receiver

40A 3-5S Blheli32 4 in 1 ESC

  • Input Voltage: 3-5S Lipo battery
  • Constant Current: 40A
  • Peak Current: 50A
  • BEC Output: NO
  • Firmware: 32bit ESC with BLheli32 firmware
  • Size: 27x27mm (mainboard) 32x34mm ( including pad)
  • Installing Hole: 20x20mm, M2
  • Weight: 5.2g
  • CPU: STM32F051
  • MOS Tube: Top Quality Mosfet
  • Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse


  • 1x F4 V2 OSD BEC Flight Control Board
  • 1x 40A Blheli32 4-In-1 ESC
  • mounting hardware
Additional Information
SKU 8171
Manufacturer HGLRC
UPC (GTIN) 769923251011
