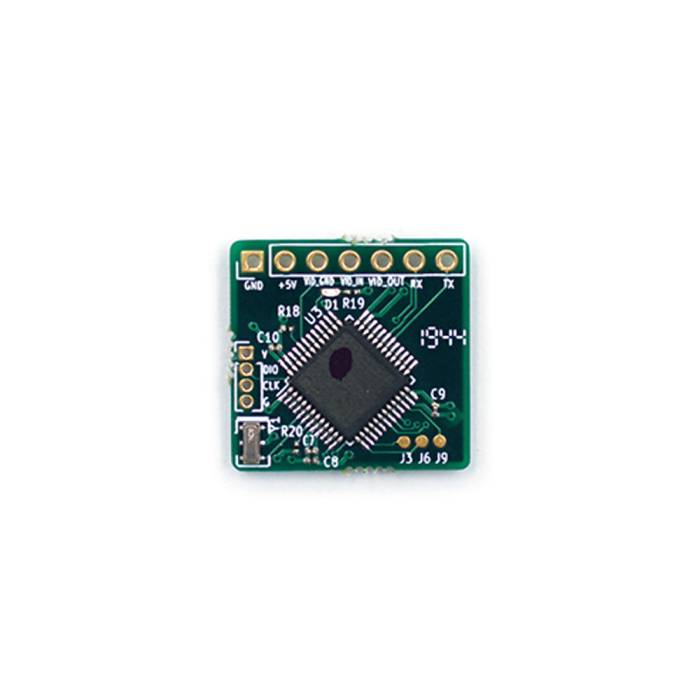

FrSky OSD Board

The FrSky OSD (On-Screen Display) is a tool that can be used for connecting your FPV camera and flight controller. The real-time generated telemetry data can be superimposed on the video image and adjusted through the flight controller.

Compatible with the FrSky Mini OSD Board.

Specifications

• Dimension(L*W*H): 19mm*18mm*3mm
• Weight: 1.5g
• Current Consumption: 38mA@5V
• Operating Voltage: 5V
• +5: VCC +5V
• VID_GND: Video GND
• VID_IN: Video input (To Camera)
• VID_OUT: Video output (To VTX)
• RX: To FC TX
• TX: To FC RX

Includes

• 1 x FrSky OSD Board
