FrSky Mini OSD Board

More Views

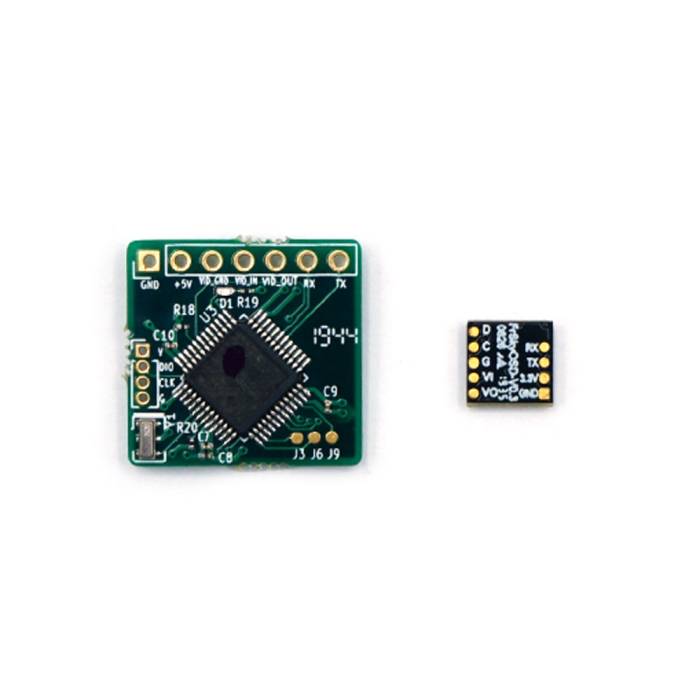

FrSky Mini OSD Board
The FrSky OSD (On-Screen Display) is a tool that can be used for connecting your FPV camera and flight controller. The OSD Mini is a smaller, lighter version suitable for customized applications.

In Stock
$9.99
OR
Description

The FrSky OSD (On-Screen Display) is a tool that can be used for connecting your FPV camera and flight controller. The real-time generated telemetry data can be superimposed on the video image and adjusted through the flight controller. The OSD Mini is a smaller, lighter version suitable for customized applications.

Compatible with the FrSky OSD Board (Not Included).

Specifications

  • Dimension(L*W*H): 7mm*7mm*2mm
  • Weight: 0.3g
  • Current Consumption: 35mA@3.3V
  • Operating Voltage: 3.3V
  • RX: To FC TX
  • TX: To FC RX
  • 3.3V: VCC +3.3V
  • G: GND
  • VI: Video input (To Camera)
  • VO: Video output (To VTX)

Includes

  • 1 x FrSky Mini OSD Board

Manual

Additional Information
SKU 12190
Manufacturer FrSky
UPC (GTIN) 736952002846
