HGLRC Forward 5.8GHz 48CH 25/50/100/200/400mW VTX

HGLRC Forward 5.8GHz 48CH 25/50/100/200/400mW VTX

HGLRC Forward 5.8GHz 48CH 25/50/100/200/400mW VTX

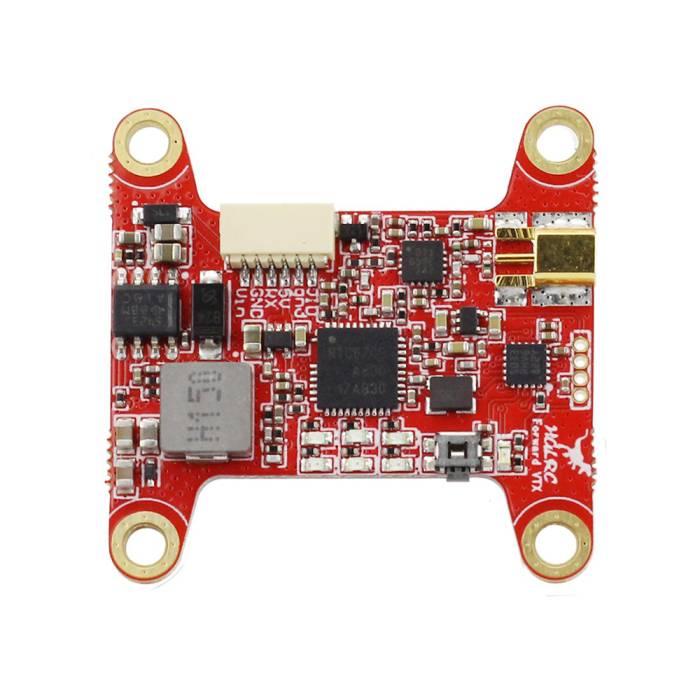

Forward VTX is simulated 5.8GHz ISM band transmission with stable output power, long transmission distance, and strong power filter.

About this product

Forward VTX is simulated 5.8GHz ISM band transmission with stable output power, long transmission distance, and strong power filter.

Specification

  • Model: HGLRC Forward VTX
  • Output power: PIT/25mW/50mW/100mW/200mW/400mW(max:240mA) switchable
  • Control mode:BFOSD control(RX)/button
  • Input: DC 7-28V,
  • BEC:5V-1A
  • Video system: NTSC/PAL
  • Antenna: MMCX
  • Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
  • Size: 36mm×36mm×5mm,Hole:30.5*30.5mm
  • Weight: 5.2g

Includes

  • 1 x HGLRC Forward 5.8GHz 48CH 25/50/100/200/400mW VTX

FPV Regulatory Notice

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

More Information

SKU 10395
UPC (GTIN) 082652056963
Manufacturer HGLRC
NDAA Compliant No
Mounting Pattern 30.5x30.5mm
Frequencies 5.8GHz
Item Returns This item can be returned
