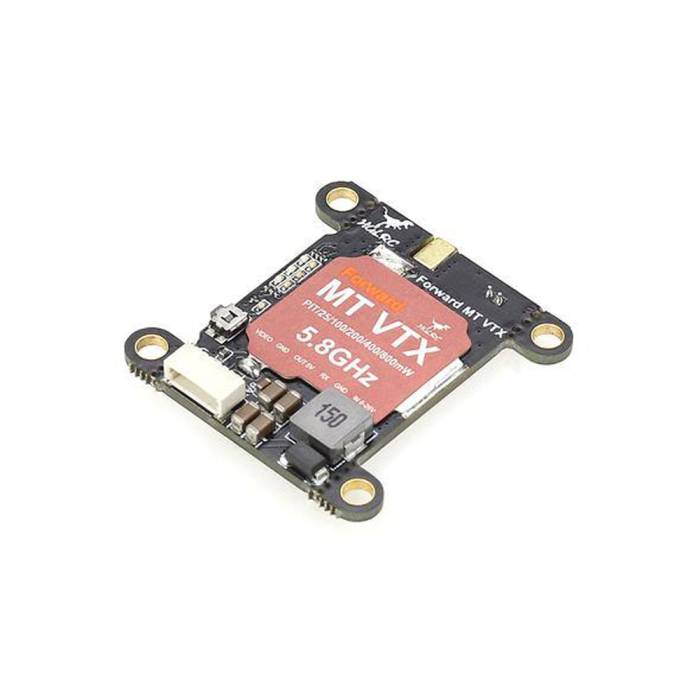

The MT 5.8GHz VTX by HGLRC is an incredible 30.5x30.5 video transmitter that comes with five switchable power outputs (PIT/25mW/100mW/200mW/400mW/800mW), MMCX connector, built-in microphone, and an integrated LC filter for clear video.

Features

• Built-in microphone
• MMCX Connector
• Integrated LC filter
• Perforated mounting hole tabs for easy removal
• Five switchable power outputs:  PIT/25mW/100mW/200mW/400mW/800mW

Specifications

• Input voltage: DC 6-26V
• Output voltage: 5V/2A
• Power modes: PIT/25mW/100mW/200mW/400mW/800mW
• Current Draw:
• 5V/PIT@70mA
• 5V/25mW@230mA/14dBm
• 5V/100mW@280mA/20dBm
• 5V/200mW@330mA/23dBm
• 5V/400mW@400mA/26dBm
• 5V/800mW@600mA/29dBm
• Connector: MMCX
• Protocol: IRC Tramp
• Mounting pattern: 30.5*30.5mm
• Size: 37mm x 36.5mm x 6mm
• Weight: 6.7g

Includes

• 1 x HGLRC Forward MT VTX
• 1 x HGLRC 80mm 5.8Ghz MMCX Linear Brass Antenna
• 1 x SH1.0 6Pin 100mm Cable
• 1 x MMCX to SMA Adapter Cable
