TrueRC X-AIR 900 Antenna - RHCP
TrueRC X-AIR 900 Antenna - RHCP
$74.99
Back Ordered
Only left for same day shipping. Order now!

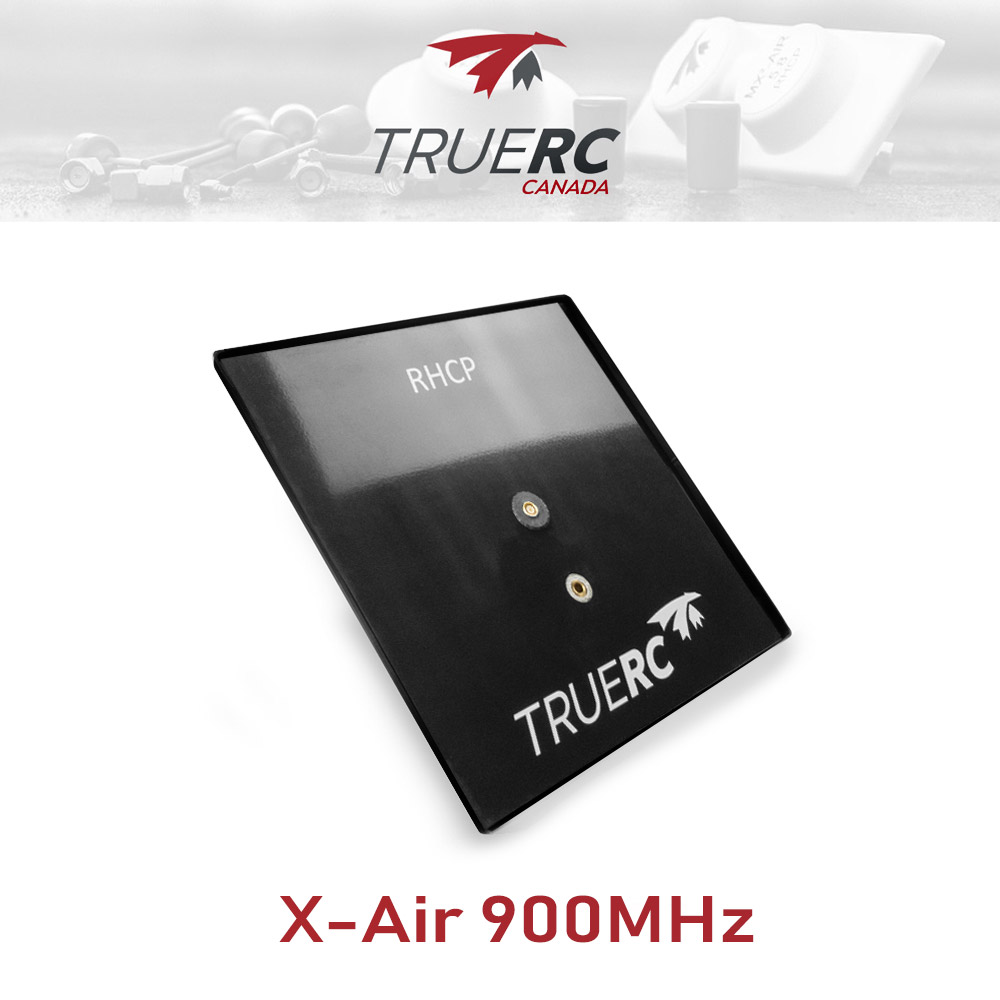

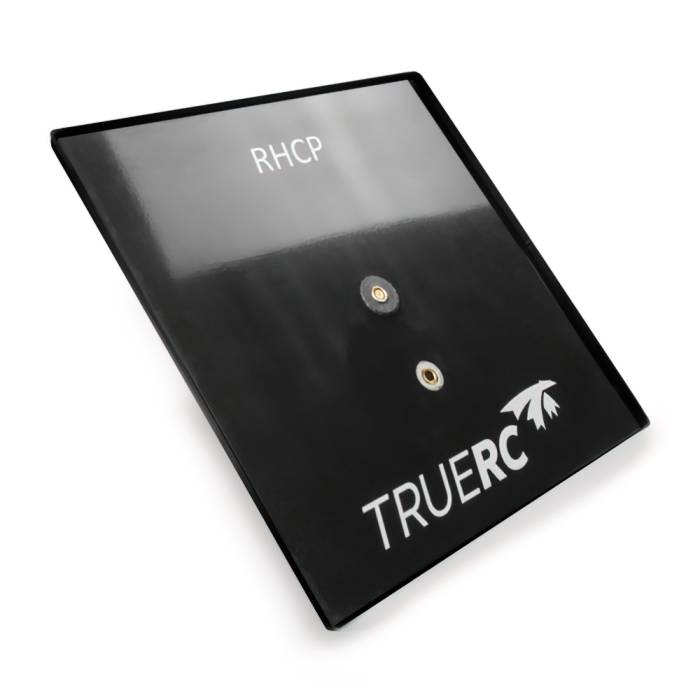

TrueRC X-AIR 900 Antenna - RHCP
The new X-AIR 900 is TrueRC's latest redesign of the crosshair antenna. The X-Air antenna is 1/4 the size of the original one but has the same wide coverage and high axial ratio to make it perfect for the far-off venture, without antenna aiming adjustment.
About this product
The new X-AIR 900 is TrueRC's latest redesign of the crosshair antenna. The X-Air antenna is 1/4 the size of the original one but has the same wide coverage and high axial ratio to make it perfect for the far-off venture, without antenna aiming adjustment. A 1/4-20 mounting point in the back makes the featherweight super easy to attach to your ground station.
Features
- Durable polycarbonate, Injection Molded, ultra-sonically welded Housing
- Heavy-duty coax cable that can be bent to shape
- A clear indication of polarization direction
- Knurled True-SMA for easy tightening
- Excellent axial ratio and efficiency
Specifications
- Mounting: Standard 1/4-20 flush thread
- Dimension: 222mm x 222mm x 45mm
- Beam-width @-3dB**: 68°
- Radiation efficiency: 98%
- Connector: SMA male
- Frequency: 900MHz
- Polarization: RHCP
- Beam-width*: 120°
- Gain: 10 dBic
- Weight: 324g
*Coverage where reception is at least equivalent to an Omni.
**Coverage where at least 70% of the max range is obtained.
Includes
- 1 x TrueRC X-AIR 900MHz Antenna - RHCP)
More Information
SKU | 17755 |
---|---|
UPC (GTIN) | 764613340198 |
Manufacturer | TrueRC |
NDAA Compliant | No |
Antenna Connector / Length | SMA |
Polarization | RHCP |
Antenna Frequency | 900MHz |
Item Returns | This item can be returned |
