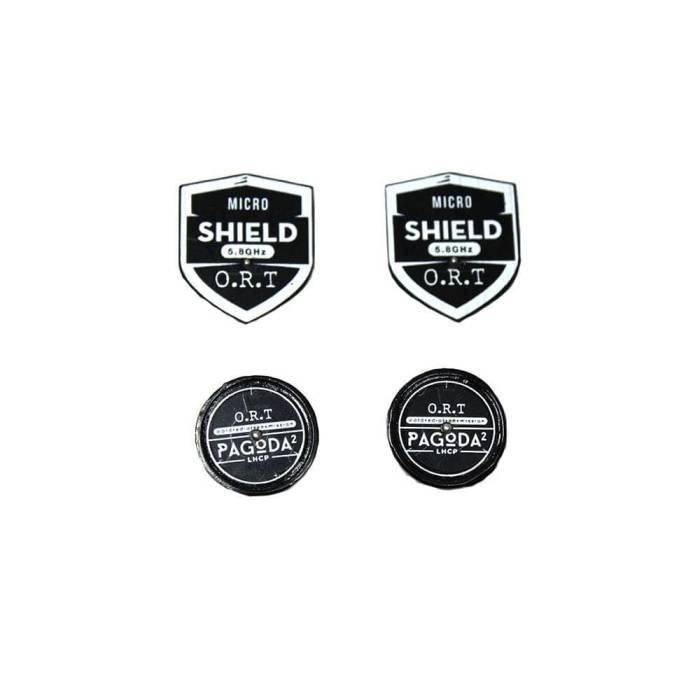

ORT Walksnail/Fatshark 5.8GHz LHCP Upgrade Antenna (Set of 4)

The ORT Walksnail/Fatshark 5.8GHz LHCP Upgrade Antenna set is a kit based on our best-selling Omni and directional antenna, providing wide beamwidth yet strong penetration. With 6.5dBi gain on the compact shield patch and the trusted quality of our pagoda stubby, a great upgrade for your digital system.

• Micro Shield & Pagoda Stubbies in one kit
• Smaller and compact antenna for easy use
• Directional & Omnidirectional for enhanced reception
• 6.5dBi Gain

MICRO SHIELD

• Polarization: LHCP
• Connector: SMA
• Gain: 6.5dBi
• Frequency Range: 5600~6000GHz
• Gain Pattern: Directional – Need to be pointed on general flying area
• Beam Width: Vertical and horizontal, 160° at -7db, 130° at -5db, 90° at -3db



ORT PAGODA STUBBIES

• Freq Channel: 5550~6050 GHz
• Gain: 1.2~1.3 dBi
• Axial Ratio: < 1.3
• Matching Swr / S11: S11 &lt; 20dB, VSWR &lt; 1.22 (Center Frequency)
• Polarization: LHCP
• Gain Pattern: OmniDirectional (cover signal in all directions)
• Radiation Efficiency: 95%

• 2x Micro Shield 5.8GHz
• 2x Pagoda 2 Stubbies
