Walksnail Avatar VRX

Walksnail Avatar VRX

As low as $219.00

Select options for stock status

Only left for same day shipping. Order now!
Walksnail Avatar VRX
The Walksnail Avatar VRX transmits 1080P/60fps with industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p. Enjoy clear HD video to take your FPV experience to the next level!

Customize Walksnail Avatar VRX

Your Customization

Walksnail Avatar VRX

Summary

About this product

dummy

The Walksnail Avatar VRX transmits 1080P/60fps with industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p. Enjoy clear HD video to take your FPV experience to the next level!

Choose just the VRX or one of the combo kits which include the VTX and camera.

Note: The Red Bird Antennas and Walksnail Avatar Patch Anetnnas are automatically included with the Avatar HD Goggles. Any optional upgrades will come in addition to these antennas.

VIDEO: (Insert Video Title here in Bold)

Features

  • Lightweight Design - 83g
  • Max transmission distance of more than 4km
  • Supports 1080P 60FPS or 720P 100FPS
  • Supports Betaflight Canvas Mode
  • Compatible with Analog Goggles
  • HDMI Out

Lightweight design, ultra-thin experience
Walksnail VRX is only 83g and comes with 114*55*22mm size, easy to carry.

Walksnail VRX adopts a 4pcs antenna design, with 2pcs directional antennas with a maximum transmission distance of more than 4km

1080P/60FPS
Walksnail VRX adopts industry-leading H.265 encoding technology,
which can provide a minimum delay of 22ms and a maximum resolution of 1080p.
The HD picture quality takes you to experience the fun of flying a drone.

HDMI output ensures you enjoy uncompressed audio and video signals from the Walksnail HD system.

Canvas Mode
Supports betaflight full OSD display, supports betaflight, inav, kiss full osd display
you can easily adjust the parameters you want by remote control.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

AVATAR Camera

  • Image Sensor: 1/2.7”
  • Resolution: 1080P/60fps,720P/120fps,720P/60fps
  • Ratio: 16/9 - 4/3
  • Lens: 2.1mm
  • FOV: 170°
  • Aperture: F2.0
  • Shutter Rolling shutter
  • Min.Illumination: 0.001Lux
  • Weight: 3.5g/6g
  • Dimensions: 14*14*17mm/19*19*22mm
  • Coaxial Cable: 90mm/140mm

VTX

  • Communication Frequency: 5.725-5.850GHz
  • Transmitter Power: (EIRP) FCC: <30dBm;CE:<14dBm;SRRC:<20dBm; MIC: <25dBm
  • 1/O Interface: JST1.0*6(Power in)JST1.0*4(USB)
  • Mounting Holes: 25.5*25.5mm
  • Dimensions: 33*33*9.5mm
  • Storage: 8G
  • Recording: 1080p/720p
  • Weight: 16g
  • Operating Temperature: -20-40℃
  • Channels: 8
  • Wide Power Input: 6V-25.2V
  • Supported FC System: Betaflight
  • OSD: Canvas mode
  • Latency: Average delay 22ms
  • Antenna: 2(IPEX)

Googles Antenna

  • Model: Red bird
  • Polarization: LHCP
  • Bandwidth: 5.6GHz-6.0GHZ
  • Average Gain: 1.9dBi
  • Radiation Efficiency: ≥97%
  • VSWR: ≤1.3
  • Cross-Polar Rejection: -15to-30dB
  • Connector: RP-SMA
  • Dimension: H24.8mm*R15.3mm
  • Weight: 4.2g

Avatar HD VRX

  • Communication Frequency: 5.725-5.850GHz
  • TransmitterPower(EIRP): FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
  • I/O Interface: HDMI,microSD card slot, DC5.5*2.1mm
  • HDMI output: 1080p60fps,720p100fps,720p60fps
  • Power Input: 7-21V(2S-5S)
  • SDCard: Support256G
  • System: AvatarHDsystem

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

Avatar VRX

  • Avatar VRX X1
  • RedBird Antenna X2
  • HDMI Cable X1
  • 2in1DCPowerCable X1

Avatar HD Micro KIT

  • Avatar HD Micro X1
  • 4 Pin USB Cable X1
  • 6 Pin Power Cable X1
  • M2x3/4/5mm Screws X4
  • M1.2x1.5mm Screws X2

Avatar HD Nano KIT

  • Avatar HD Nano X1
  • 4 Pin USB Cable X1
  • 6 Pin Power Cable X1
  • M2x3/4/5mm Screws X2
  • M1.2x1.5mm Screws X2
  • 14-19mm Bracket X1

Avatar Mini 1S KIT

  • Avatar Mini 1S X1
  • 4 Pin USB Cable X1
  • 6 Pin Power Cable X1
  • M2x3/4mm Screws X2
  • M2x16mm Screws X4
  • M2 Screw nut X4
  • 2.1x3.4x1mm Gasket X5

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 19793
Item Returns This item can be returned

Also Purchased

Walksnail Avatar Digital HD FPV Goggles w/ Patch Antennas
$599.00
NEW
Walksnail Avatar HD Camera / VTX Kit
$159.00
NEW

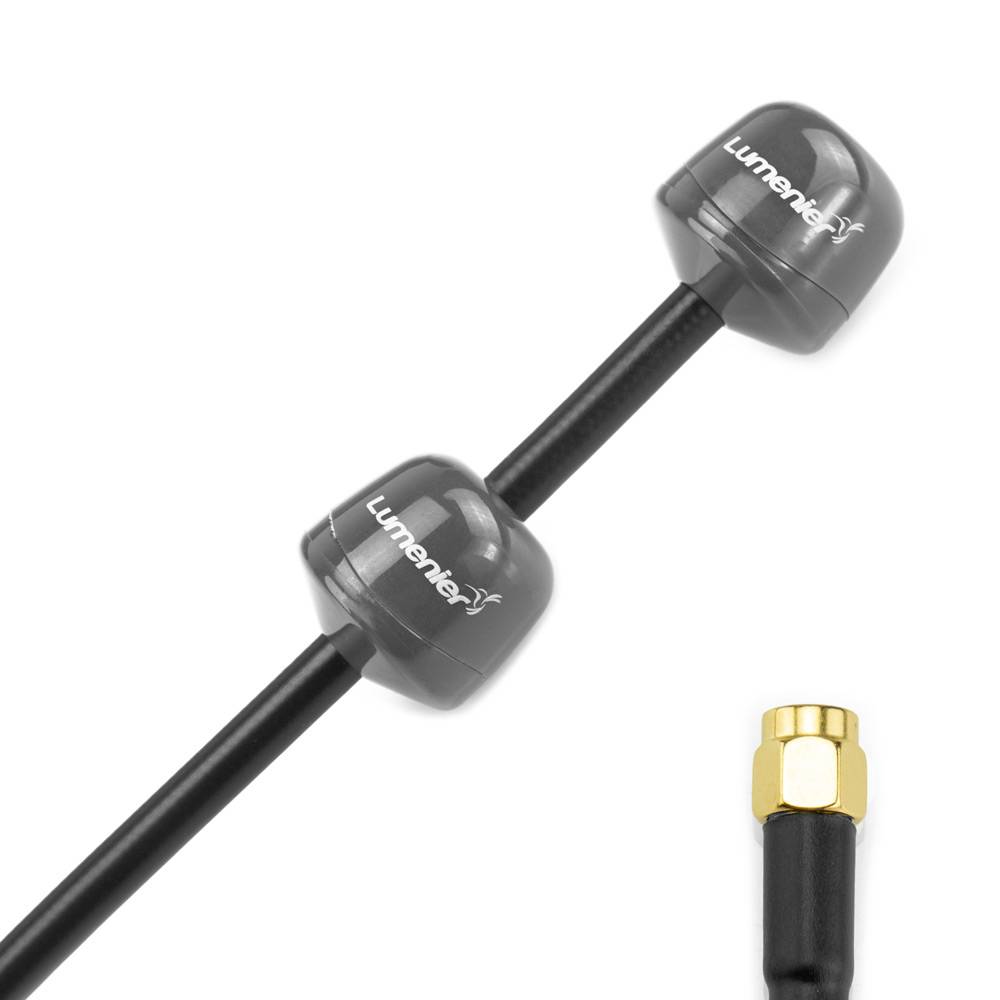

Lumenier Micro AXII HD 2 Antenna 5.8GHz Stubby for DJI Goggles - RP-SMA
