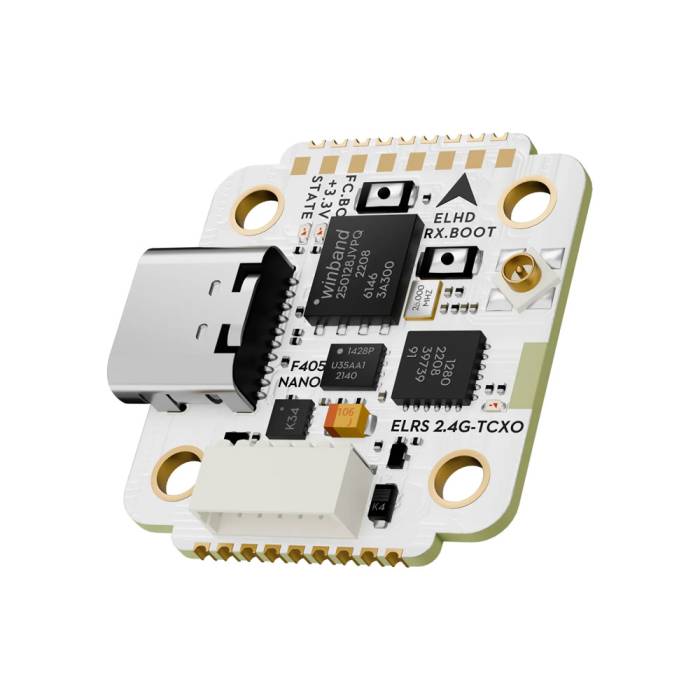

Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller w/ ELRS 2.4GHz - 16x16
$45.49
In Stock
Only left for same day shipping. Order now!
Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller w/ ELRS 2.4GHz - 16x16
The Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller is upgraded for enhanced performance and a more compact layout. Featuring a USB-C port, it ensures seamless connectivity with mainstream cables.
About this product

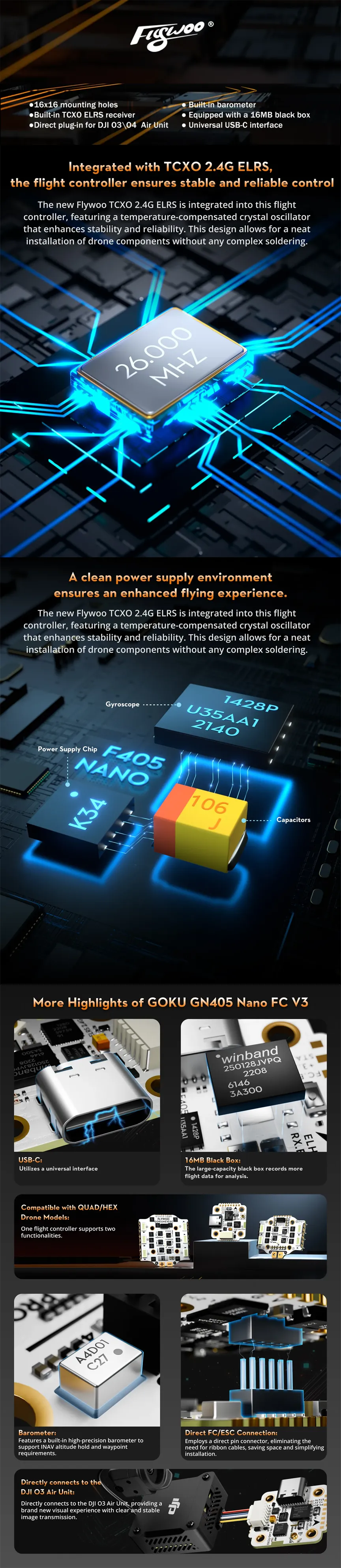

The Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller is upgraded for enhanced performance and a more compact layout. Featuring a USB-C port, it ensures seamless connectivity with mainstream cables. Designed for versatility, it supports the DJI O3 interface for high-quality digital transmission and offers six UART ports for flexible connections. The built-in TCXO ELRS high-precision receiver enhances signal stability, making it ideal for micro drones. It is compatible with QUAD and HEX setups and allows easy switching between ESC models, making it a powerful choice for FPV enthusiasts.
Features
- TCXO ELRS High-Precision Receiver
- Optimized for Micro Drones
- QUAD & HEX Compatibility
- DJI O3 Interface Support
- Upgraded Design
- Six UART Ports
- USB-C Port


Specifications
- Input Voltage: 7.4V - 24V / 2-6S LiPo
- Hole Position: M2 16x16mm
- Size: 25mm x 23mm x 8mm
- IMU (Gyro): ICM-42688P
- Gyro: ICM-42688P (SPI)
- MCU: STM32F405 BGA
- BEC: 5V 2A / 3.3V 0.5A
- USB Port Type: Type-C
- UARTs: 1, 2, 3, 4, 5, 6
- Barometer: DP310
- Black Box: 16MB
- Weight: 3g
- OSD: No
Includes
- 1x Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller w/ ELRS 2.4GHz - 16x16
- 1x DJI O3 Connection Cable
- 1x Shock-Absorbing Ball
- 1x T-Antenna
More Information
| SKU | 22960 |
|---|---|
| UPC (GTIN) | 723326371172 |
| Manufacturer | Flywoo |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 16x16mm |
| Flight Controller Processor | F4 |
| Flight Controller Firmware Targets | INAV |
| Gyro | ICM42688P |
