Flywoo GOKU QUAD V3 20A 2-4S 4-in-1 BLHeli_S ESC w/ LED - 16x16
$38.99
In Stock
Only left for same day shipping. Order now!
Flywoo GOKU QUAD V3 20A 2-4S 4-in-1 BLHeli_S ESC w/ LED - 16x16
The Flywoo GOKU QUAD V3 20A is a 4-in-1 BLHeli_S ESC designed for 2-4S LiPo setups, delivering 20A continuous current for smooth and reliable performance.
About this product

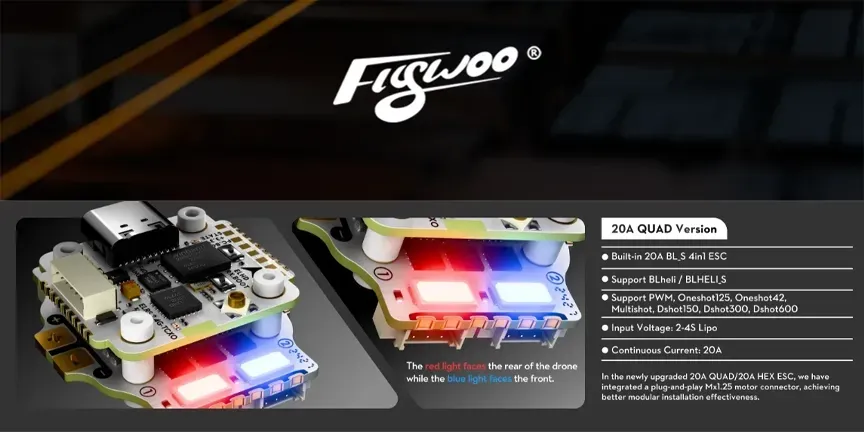

The Flywoo GOKU QUAD V3 20A is a 4-in-1 BLHeli_S ESC designed for 2-4S LiPo setups, delivering 20A continuous current for smooth and reliable performance. Featuring a compact 27×33mm design with 16mm M2 mounting holes, it integrates easily into tight builds. This ESC supports Oneshot, Multishot, DShot150/300/600, and PWM protocols. With a built-in LED and weighing just 4.5g, this ESC offers efficient power management in a lightweight package.
Features
- Multiple Protocol Support
- 16x16 Mounting Pattern
- Compact & Lightweight
- Wide Compatibility
- High Performance
- Easy Installation
- 4-in-1 Design
- LED
Specifications
- Size: 27×33mm board, 16mm mounting holes (M2)
- Continuous Current: 20A
- Input Voltage: 2-4S LiPo
- ESC MCU: BB21F16G
- Power LED: Yes
- Weight: 4.5g
- Supported Protocols:
- Oneshot125
- Oneshot42
- Multishot
- DShot150
- DShot300
- DShot600
- PWM
Includes
- 1x Flywoo GOKU QUAD V3 20A 2-4S 4-in-1 BLHeli_S ESC w/ LED - 16x16
- 1x Shock-Absorbing Ball
- 1x XT30U Power Cable
- 1x Capacitor
More Information
| SKU | 22957 |
|---|---|
| UPC (GTIN) | 723326371158 |
| Manufacturer | Flywoo |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 16x16mm |
| ESC Firmware | BLHeli_S |
| Amps | 20 Amps |
| Voltage | 2-4 Cell (7.4v-14.8v) |
| Number of ESC's | 4 ESC's in 1 |
