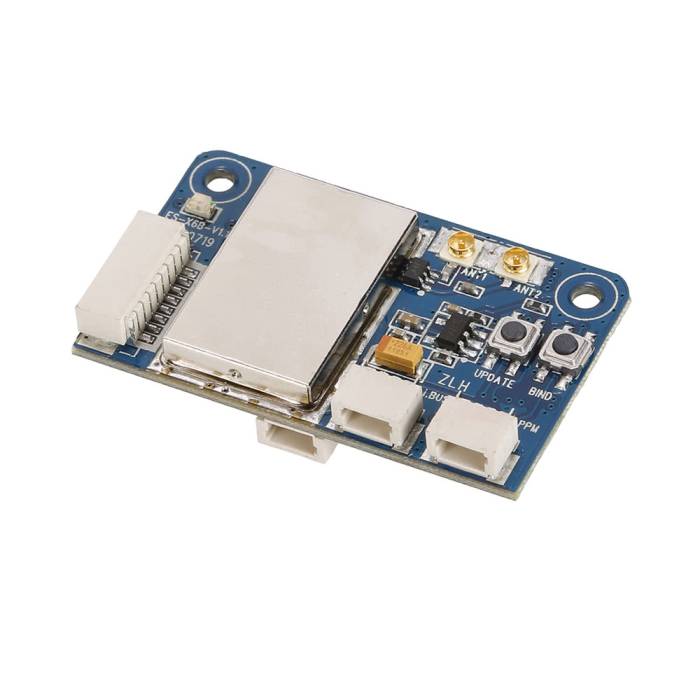

FlySky X6B 2.4G 6CH i-BUS PPM PWM Receiver

FS-X6B is a 6 channel two-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and dual omnidirectional antenna with superior noise reduction techniques. It's compact, easy to install and boasts a rich easy to use interface. FS-X6B support 6 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface.

Specifications

• Brand Name: Flysky
• Item: X6B i-BUS 2.4GHz 6CH Receiver
• Channels: 6(PWM), 8(PPM), 18(i-BUS)
• Model Type: Multi-Rotor
• RF Range: 2.408-2.475 GHz
• Band Width: 500KHz
• Number of bands: 135
• RF Power: No more than 20 dBm
• RX Sensitivity: -95dBm
• 2.4GHz protocol: AFHDS 2A
• Modulation Type: GFSK
• Stick resolution: 1024
• Low voltage alarm: Yes
• DSC port: PPM/PWM/i-BUS
• Antenna Length: 93mm (Dual Antenna)
• Power input: 4.0-8.4V
• Online Update: Yes(Wireless)
• Range: >300m
• Weight: 4.5g
• Size: 36*22*7.5mm
• i-BUS Port: Yes
• Certificate: CE0678, FCC ID: N4ZX6B00
• Compatible Transmitter: All AFHDS 2A Transmitters, FS-i10 FS-i6 ,FS-i6S, FS-i6X, FS-i4, FS-i4X.

Includes:

• 1X Flysky X6B 2.4GHz 6CH Receiver
• 4x Cables
