Aikon F4 Mini Flight Controller w/ OSD

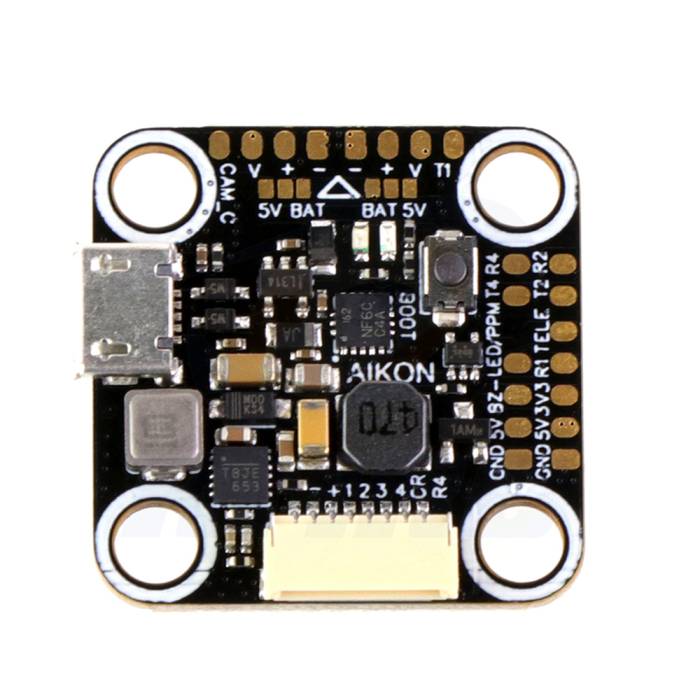

The Aikon F4 Mini 20x20 Flight Controller is a new generation flight controller that was designed to be compatible with the Aikon AK32PIN 4-in-1.
About this product
The Aikon F4 Mini 20x20 Flight Controller is a new generation flight controller that was designed to be compatible with the Aikon AK32PIN 4-in-1. All of the best features have been packed into one seamless flight experience.
Features
- Conveniently located ESC signal ground and telemetry pads
- Quick connection cable for 4-in-1 ESCs, Works out of the box with the Aikon AK32PIN 4-in-1
- On-board voltage regulator up to 6S
- 32khz Capable
- 168mhz F4 Processor
- Software serial: SOFTSERIAL1 for VTX control
- Onboard OSD and Blackbox
- LED outputs
Specifications
- Battery: 2-6s
- Mounting Holes: 20x20mm
- Firmware: Betaflight AIKONF4 Target
- MCU: STM32F405
- IMU: ICM-20602
- Blackbox: SPI 16MB
- Weight: 7g
- Hardware UARTS:
- UART1 for SerialRX
- UART3 for S.PORT
- UART4 for ESC telemetry
- UART2 available for CRSF or general use
Includes
- 1 x Aikon F4 Mini 2020 FC
- 4 x Red Grommets/Gummies
- 1 x Silicone 8pin cable with bare leads
- 1 x Silicone 8pin cable with connectors for 4-in-1
- 1 x Paper Manual
More Information
| SKU | 11233 |
|---|---|
| UPC (GTIN) | 032733833334 |
| Manufacturer | Aikon |
| Mounting Pattern | N/A |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
