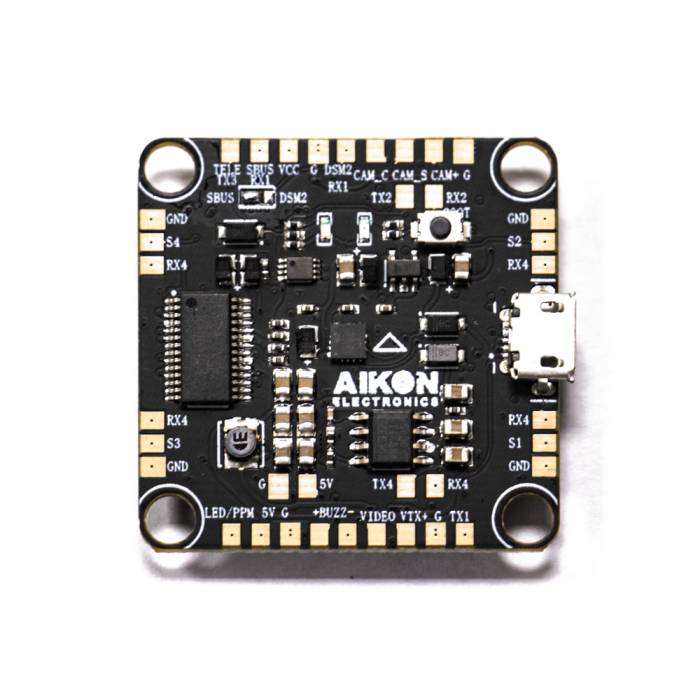

Aikon F4 Flight Controller BF w/ OSD

Aikon F4 Flight Controller BF w/ OSD

Out of Stock

Only left for same day shipping. Order now!
Earn
Aikon F4 Flight Controller BF w/ OSD
The Aikon flight controller is a new generation flight controller designed specifically to work with the Aikon AK32 4-in-1 ESC.

About this product

The Aikon flight controller is a new generation flight controller designed specifically to work with the Aikon AK32 4-in-1 ESC. We've packed all the greatest features into one seamless flight experience.

Features

  • 32khz capable
  • 168mhz F4 processor
  • Hardware UARTS:
    • UART1 for SerialRX
    • UART3 for S.PORT
    • UART4 for ESC telemetry
    • UART2 and UART3 available for general use
  • Software serial:
    • SOFTSERIAL1 for VTX control on TX1
  • Onboard OSD and Blackbox
  • LED outputs
  • Conveniently located ESC signal ground and telemetry pads
  • Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon AK32 4-in-1
  • Onboard voltage regulator up to 6S

Specifications

  • Lipo: 2-6s
  • Mounting Hole: 30.5*30.5mm
  • Firmware: Betaflight AIKONF4 Target
  • MCU: STM32F405
  • IMU: ICM-20602
  • Blackbox: SPI 16MB
  • Weight: 7g

Includes

  • 1x F4 Flight Controller
  • 6x Rubber Grommets
  • 1x 10pin FC to ESC Cable


More Information

SKU 8810
UPC (GTIN) 736952006615
Manufacturer Aikon
Mounting Pattern N/A
NDAA Compliant No
Item Returns This item can be returned
