Holybro Micro M9N GPS Module w/o Case

The Holybro Micro M9N GPS is a compact and high-performance GPS module utilizing the advanced multi-constellation GNSS technology powered by the u-blox M9. It's designed to receive and track multiple GNSS systems simultaneously, making it a versatile choice for various navigation applications.

• Rechargeable Backup Battery
• Integrated IST8310 Compass
• Multi-Constellation Support
• High-Precision Positioning
• Active Antenna Circuitry
• High-Gain Antenna
• Compact Design

• Other: LNA MAX2659ELT+ RF Amplifier, Rechargeable Farah capacitance, Low noise 3.3V regulator
• Number of Concurrent GNSS: Up to 4 GNSS (BeiDou, Galileo, GLONASS, GPS, QZSS)
• Frequency Band: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
• GNSS Augmentation System: EGNOS, GAGAN, MSAS and WAAS, QZSS: L1S
• Nav. Update Rate: Up to 25 Hz (4 concurrent GNSS)
• Antenna: 25 x 25 x 4 mm ceramic patch antenna
• Power Consumption: Less than 200mA @ 5V
• Dimensions: 32 x 26 x 9mm (w/o Case)
• Output Protocol: UBX (U-blox), NMEA
• Product: Holybro Micro M9N GPS
• Operating Temperature: -40-80C
• GNSS Receiver: Ublox M9N
• Default Baud Rate: 115200
• Input Voltage: 4.75-5.2V
• Weight: 14g (w/o Case)

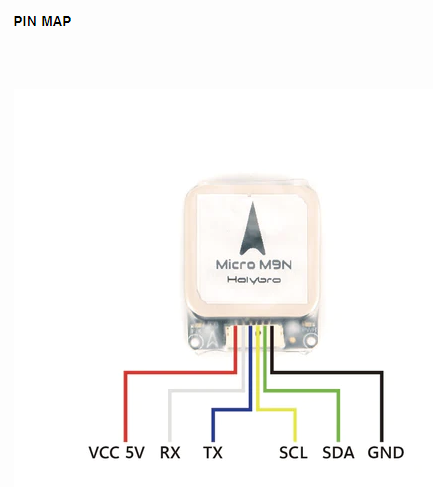

• Port Type: JST-GH-6P
• Accuracy: 1.5m CEP
• Compass: IST8310

• Holybro Documentation

• 3D CAD Download

• Dimension

• 1x Holybro Micro M9N GPS Module w/o Case
• 1x JST-GH 6pin Colored Silicon Cable 15 cm
• 1x JST GH 6 Position Connector 15 cm
